58-68 FORD/MERCURY KIT,FRONT,SL6R,13"

BRAND NEW WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1- PIECE DISC BRAKE KIT (PART #140-13654) FOR BOTH FRONT WHEELS.

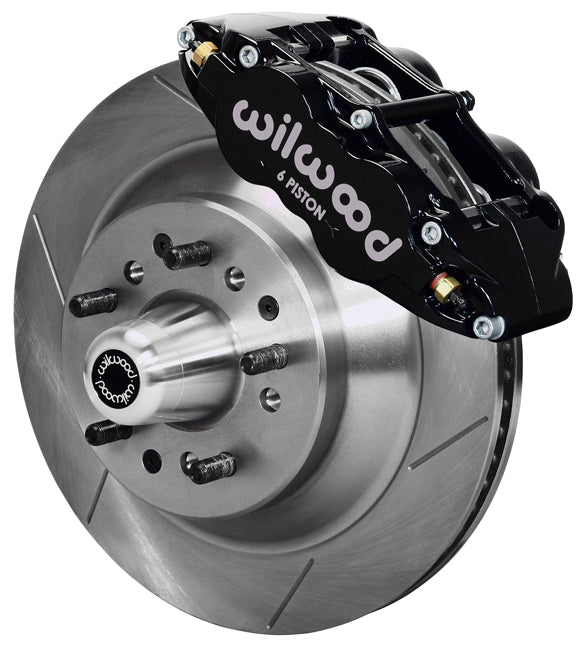

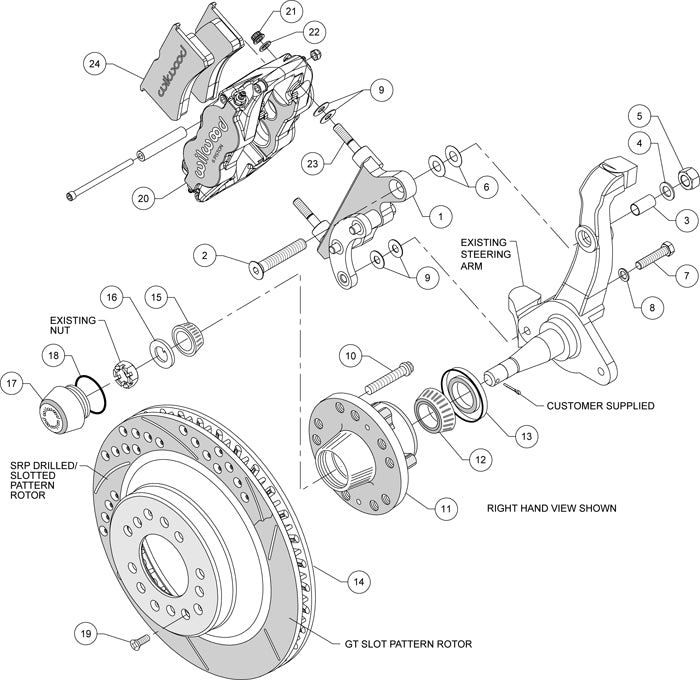

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• EDSEL:
  • 1959-1960 CORSAIR, RANGER, AND VILLAGER
• FORD:
  • FORD 300:
    • 1963 ALL
  • COUNTRY SEDAN:
    • 1957-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • COUNTRY SQUIRE:
    • 1957-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • COURIER SEDAN DELIVERY:
    • 1957-1959 ALL
  • CUSTOM:
    • 1957-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • CUSTOM 300:
    • 1957-1960 ALL
  • CUSTOM 500:
    • 1964-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • DEL RIO WAGON:
    • 1957-1958 ALL
  • FAIRLANE:
    • 1957-1961 ALL
  • GALAXIE:
    • 1959-1965 ALL
    • 1966-1967 WITH DRUM BRAKE SPINDLES
  • GALAXIE 500:
    • 1962-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • LTD:
    • 1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • RANCH WAGON:
    • 1957-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • RANCHERO:
    • 1957-1959 ALL
    • 1967-1968 WITH DRUM BRAKE SPINDLES
  • SKYLINER:
    • 1957-1959 ALL
  • STARLINER:
    • 1960-1961 ALL
  • SUNLINER:
    • 1957-1964 ALL
  • THUNDERBIRD:
    • 1958-1960 ALL
  • TORINO:
    • 1968 WITH DRUM BRAKE SPINDLES
  • VICTORIA:
    • 1957-1964 ALL
• MERCURY:
  • BREEZEWAY:
    • 1965-1966 WITH DRUM BRAKE SPINDLES
  • BROUGHAM:
    • 1967 WITH DRUM BRAKE SPINDLES
  • COLONY PARK:
    • 1961-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • COMMUTER:
    • 1961-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • COUNTRY CRUISER:
    • 1963 ALL
  • CYCLONE:
    • 1961-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • MARAUDER:
    • 1963-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • MARQUIS:
    • 1967-1968 WITH DRUM BRAKE SPINDLES
  • METEOR:
    • 1961 ALL
  • MONTCLAIR:
    • 1961-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • MONTEGO:
    • 1968 WITH DRUM BRAKE SPINDLES
  • MONTEREY:
    • 1961-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • PARK LANE:
    • 1964-1965 ALL
    • 1966-1968 WITH DRUM BRAKE SPINDLES
  • S-55:
    • 1966-1967 WITH DRUM BRAKE SPINDLES
  • VILLAGER:
    • 1962-1965 ALL
    • 1966-1967 WITH DRUM BRAKE SPINDLES
  • VOYAGER:
    • 1966-1967 WITH DRUM BRAKE SPINDLES

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 12.90" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED 1960 TO 1968 FORD & MERCURY FULL SIZE VEHICLES. BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. THESE KITS ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

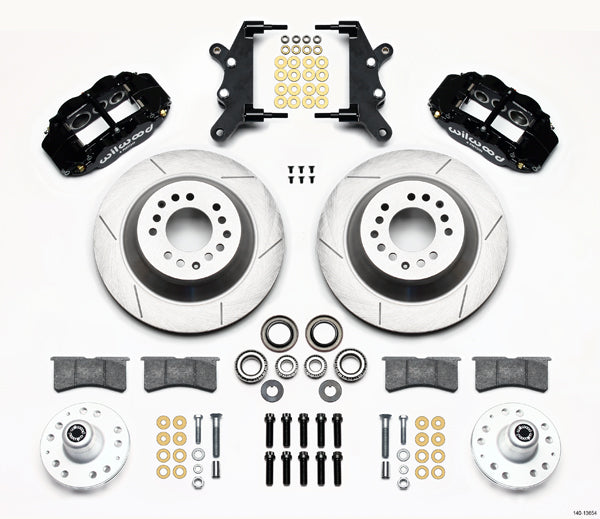

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 12.90" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON RADIAL CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HUBS
• BEARINGS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
• ALL BOLTS, NUTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 61 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
