58-68 FORD/MERCURY KIT,FRONT,11.3",RED

58-68 FORD/MERCURY KIT,FRONT,11.3",RED

WIL 140-13653R

$839.99
$839.99
View full details

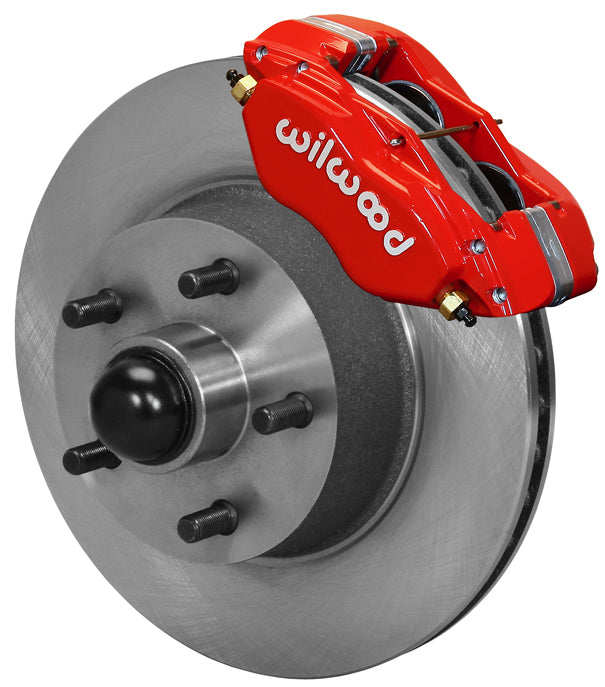

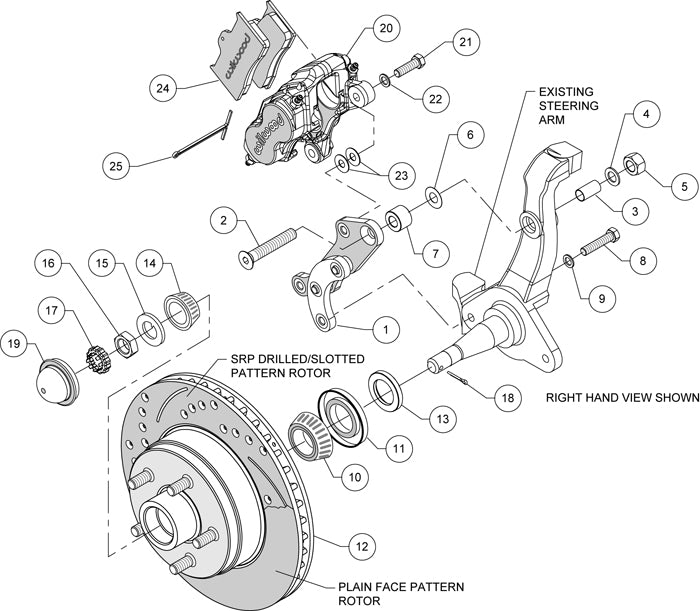

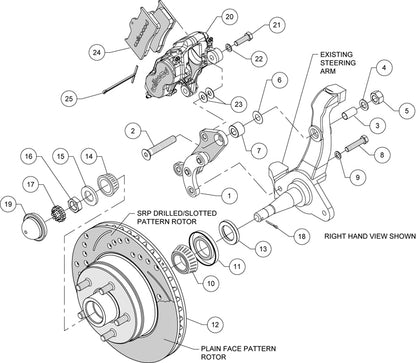

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD CLASSIC DYNALITE BOLT-ON FRONT HUB & 11.30" DISC BRAKE KIT FOR:

    EDSEL:
    -1959-1960 CORSAIR, RANGER, AND VILLAGER*

    FORD:
    FORD 300:
    -1963 ALL*
    COUNTRY SEDAN:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COUNTRY SQUIRE:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COURIER SEDAN DELIVERY:
    -1957-1959 ALL*
    CUSTOM:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    CUSTOM 300:
    -1957-1960 ALL*
    CUSTOM 500:
    -1964-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    DEL RIO WAGON:
    -1957-1958 ALL*
    FAIRLANE:
    -1957-1961 ALL*
    GALAXIE:
    -1959-1965 ALL*
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    GALAXIE 500:
    -1962-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    LTD:
    -1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    RANCH WAGON:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    RANCHERO:
    -1957-1959 ALL*
    -1967-1968 WITH DRUM BRAKE SPINDLES*
    SKYLINER:
    -1957-1959 ALL*
    STARLINER:
    -1960-1961 ALL*
    SUNLINER:
    -1957-1964 ALL*
    THUNDERBIRD:
    -1958-1960 ALL*
    TORINO:
    -1968 WITH DRUM BRAKE SPINDLES*
    VICTORIA:
    -1957-1964 ALL*

    MERCURY:

    BREEZEWAY:
    -1965-1966 WITH DRUM BRAKE SPINDLES*
    BROUGHAM:
    -1967 WITH DRUM BRAKE SPINDLES*
    COLONY PARK:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COMMUTER:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COUNTRY CRUISER:
    -1963 ALL*
    CYCLONE:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MARAUDER:
    -1963-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MARQUIS:
    -1967-1968 WITH DRUM BRAKE SPINDLES*
    METEOR:
    -1961 ALL*
    MONTCLAIR:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MONTEGO:
    -1968 WITH DRUM BRAKE SPINDLES*
    MONTEREY:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    PARK LANE:
    -1964-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    S-55:
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    VILLAGER:
    -1962-1965 ALL*
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    VOYAGER:
    -1966-1967 WITH DRUM BRAKE SPINDLES*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR EDSEL, FORD, & MERCURY FULL SIZE OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. THESE KITS FEATURE THE FDL-M 4-PISTON FORGED ALUMINUM CALIPER AND 11.30" DIAMETER X 0.94" THICK ONE-PIECE ROTORS. THE FDL-M CALIPER IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY 4 PISTON CALIPER IN ITS SIZE CLASS.

  • THE OEM STYLE ONE-PIECE CAST IRON ROTORS WITH INTEGRATED HUBS SIMPLIFY INSTALLATION WHILE PROVIDING SUPERB DIMENSIONAL STABILITY AND WEAR RESISTANCE. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE ALMOST NO MODIFICATIONS FOR INSTALLATION. CLASSIC SERIES FDL-M KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS, AND COME COMPLETE WITH CALIPERS, ROTORS, BRACKETS, HARDWARE AND DETAILED INSTALLATION INSTRUCTIONS.

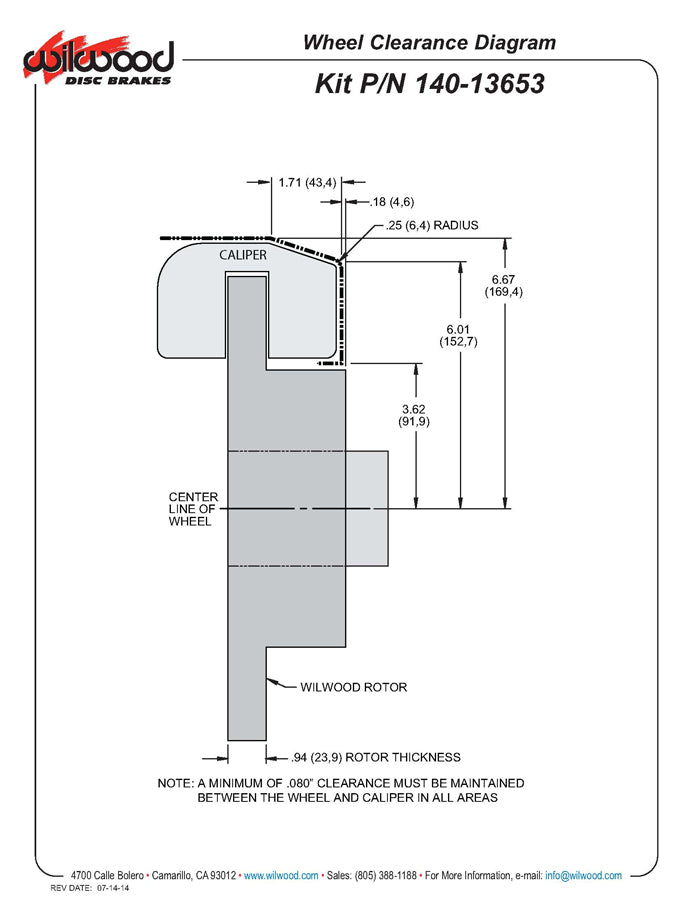

  • THESE BRAKE KITS WILL CLEAR 15" DIAMETER WHEELS AND MOST 14" DIAMETER OEM WHEELS. TO CONFIRM CLEARANCE WITH 14" WHEELS, SEE THE DIAGRAM WITH THE MOUNTED DIMENSIONS OF THESE BRAKES. THOSE CAN BE COMPARED TO THE REAR OF YOUR WHEELS TO CONFIRM FITMENT.

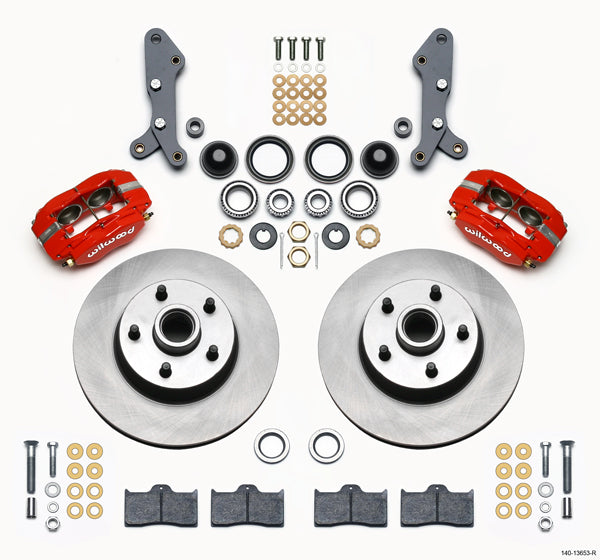

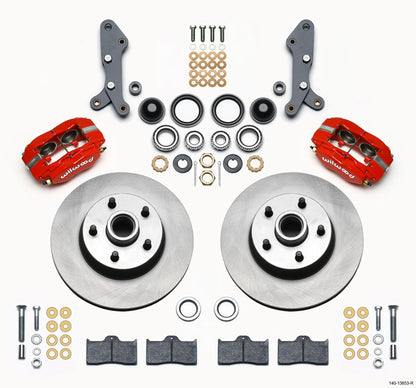

  • KIT INCLUDES:
    *STANDARD, 0.94" THICK X 11.30" O.D. 1-PIECE HUBS AND ROTORS,
    *DYNALITE 4 PISTON CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BEARINGS,
    *SEALS, &
    *ALL BOLTS, SHIMS, WASHERS, SPACERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 66 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Galaxie Front Kits, 1960-1968
