70-73 FORD MUSTANG KIT,FRONT,11.30"

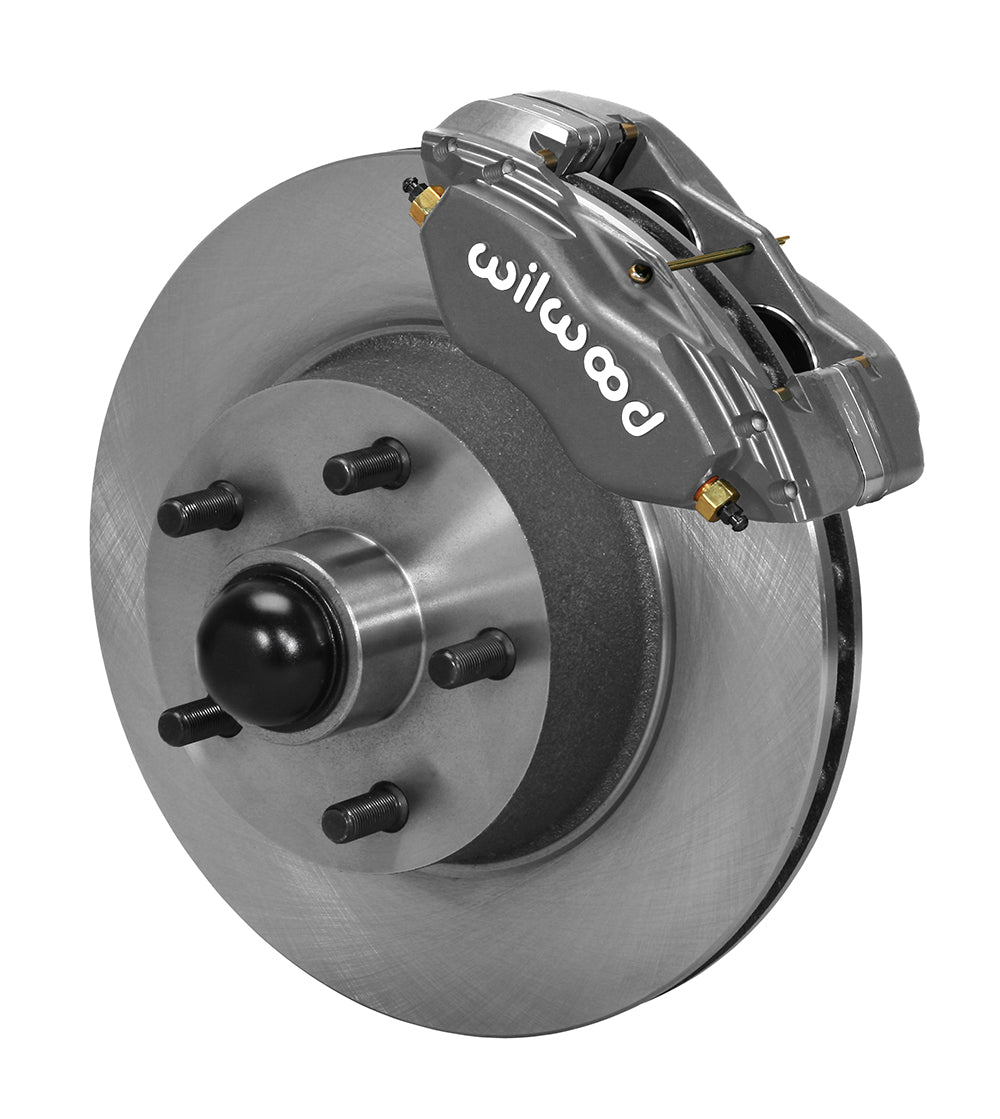

BRAND NEW WILWOOD CLASSIC SERIES BOLT-ON FRONT 11.30" DISC BRAKE KIT (PART #140-13477) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR 1970 TO 1973 FORD MUSTANGS OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM OR DISC SPINDLES. THESE KITS FEATURE THE FDL-M FOUR PISTON FORGED ALUMINUM CALIPER AND 11.30" DIAMETER X 0.94" THICK ONE-PIECE ROTORS. THE FDL-M CALIPER IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY FOUR PISTON CALIPER IN ITS SIZE CLASS. THE OEM STYLE ONE-PIECE CAST IRON ROTORS WITH INTEGRATED HUBS SIMPLIFY INSTALLATION WHILE PROVIDING SUPERB DIMENSIONAL STABILITY AND WEAR RESISTANCE. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND CLEAR MOST 14" OEM DISC BRAKE WHEELS. KITS WILL NOT FIT OEM DRUM BRAKE WHEELS. CLASSIC SERIES FDL-M KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS, AND COME COMPLETE WITH CALIPERS, ROTORS, BRACKETS, HARDWARE, FLEX LINES AND DETAILED INSTALLATION INSTRUCTIONS.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD:
• 1970 FAIRLANE, DISC BRAKE SPINDLE
• 1970 FAIRLANE, DRUM BRAKE FRONT SPINDLE
• 1970 FALCON, DISC BRAKE SPINDLE
• 1970 FALCON, DRUM BRAKE FRONT (FROM 8/25/69)
• 1970 MAVERICK, DRUM BRAKE FRONT (FROM 8/25/69)
• 1971-1974 MAVERICK, DRUM BRAKE FRONT SPINDLE
• 1970 MUSTANG, DISC BRAKE FRONT (EXCEPT GT350 & 500)
• 1973 MUSTANG, DISC BRAKE FRONT SPINDLE
• 1971-1972 MUSTANG, DISC BRAKE SPINDLE
• 1970-1973 MUSTANG, DRUM BRAKE FRONT SPINDLE
• 1970-1971 RANCHERO, DISC BRAKE SPINDLE
• 1970 RANCHERO, DRUM BRAKE FRONT SPINDLE
• 1970-1971 TORINO, DISC BRAKE SPINDLE
• 1970-1971 TORINO, DRUM BRAKE FRONT SPINDLE
• MERCURY:
• 1970-1971 COMET, DISC BRAKE SPINDLE
• 1970-1973 COMET, DRUM BRAKE FRONT SPINDLE
• 1973 COUGAR, DISC BRAKE FRONT SPINDLE
• 1970-1972 COUGAR, DISC BRAKE SPINDLE
• 1970-1972 COUGAR, DRUM BRAKE FRONT SPINDLE
• 1970-1971 CYCLONE, DISC BRAKE SPINDLE
• 1970-1971 CYCLONE, DRUM BRAKE FRONT SPINDLE
• 1970-1971 MONTEGO, DISC BRAKE SPINDLE
• 1970-1971 MONTEGO, DRUM BRAKE FRONT SPINDLE

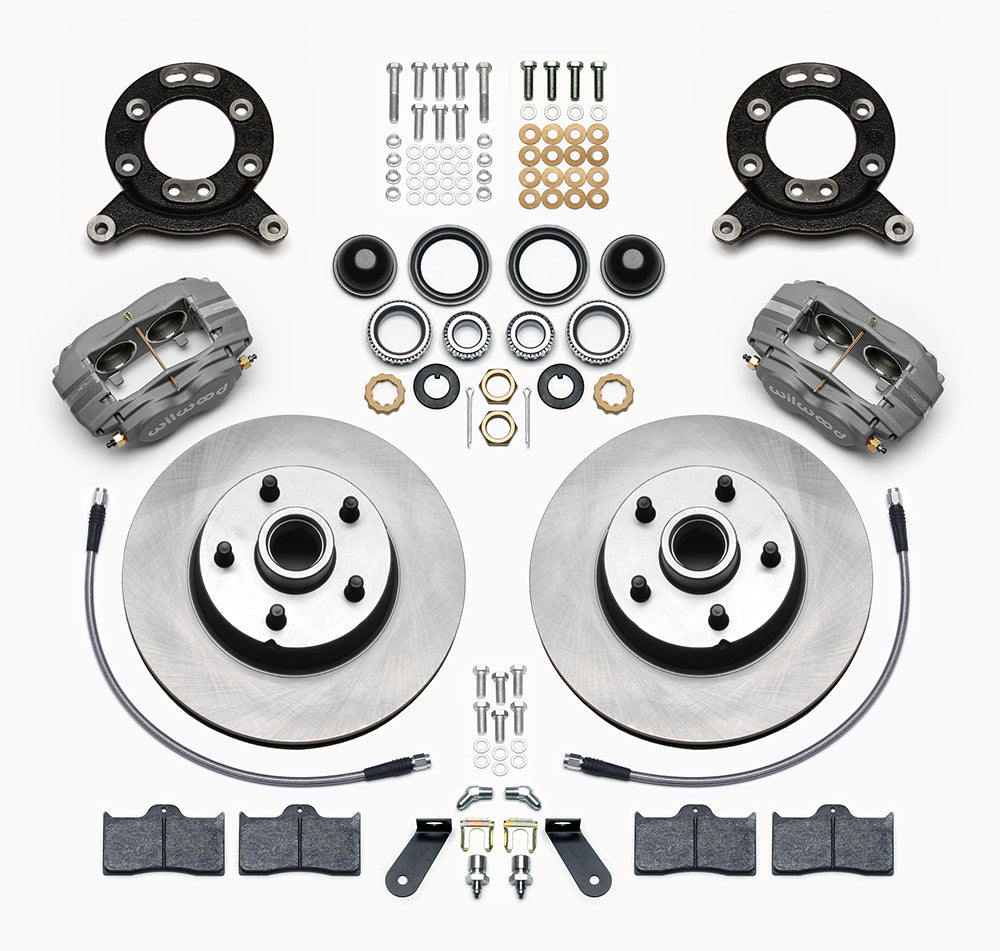

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .94" THICK X 11.30" O.D. 1-PIECE HUBS AND ROTORS
• FORGED DYNALITE FDL-M 4 PISTON CALIPERS
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINES WITH NECESSARY FITTINGS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 66 LBS.

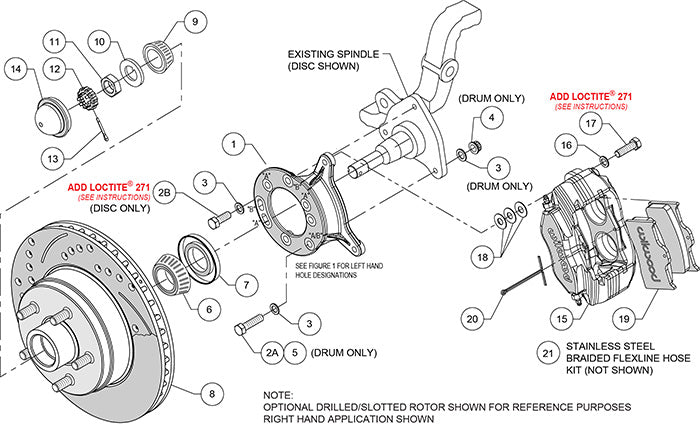

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
