71-74 AMC KIT,2.60",REAR PB,FDL,12",RED

71-74 AMC KIT,2.60",REAR PB,FDL,12",RED

WIL 140-13398R

$1,029.99
$1,029.99
View full details
  • BRAND NEW WILWOOD REAR PARKING BRAKE, PRO SERIES FORGED DYNALITE, BOLT-ON 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS.

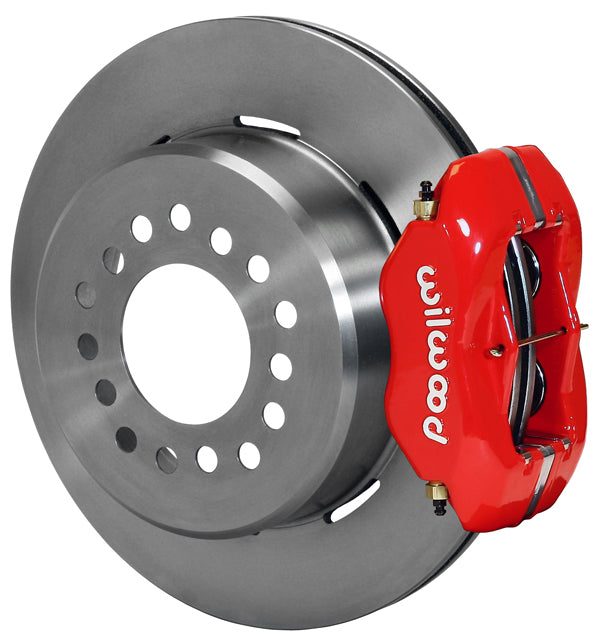

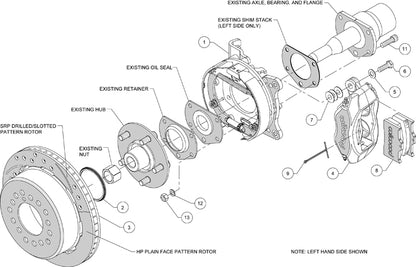

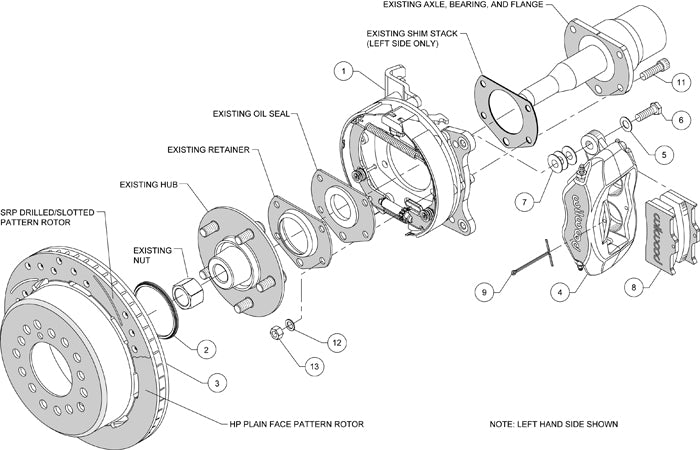

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • 1971-1974 AMERICAN MOTORS AMX, ALL*
    • 1971-1974 AMERICAN MOTORS JAVELIN, ALL*

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THESE FDL PRO SERIES REAR DISC KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE 4-PISTON CALIPERS, 12.19" O.D. ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

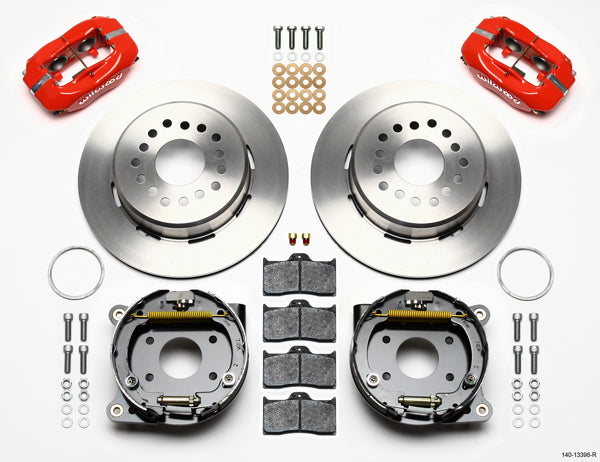

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS WITH HATS
    • FORGED DYNALITE 4 PISTON CALIPERS - RED
    • DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
