69-70 IMPALA,FRONT,DP6,12.19",RED

69-70 IMPALA,FRONT,DP6,12.19",RED

WIL 140-12946R

$1,259.99
$1,259.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT. FOR BOTH FRONT WHEELS.

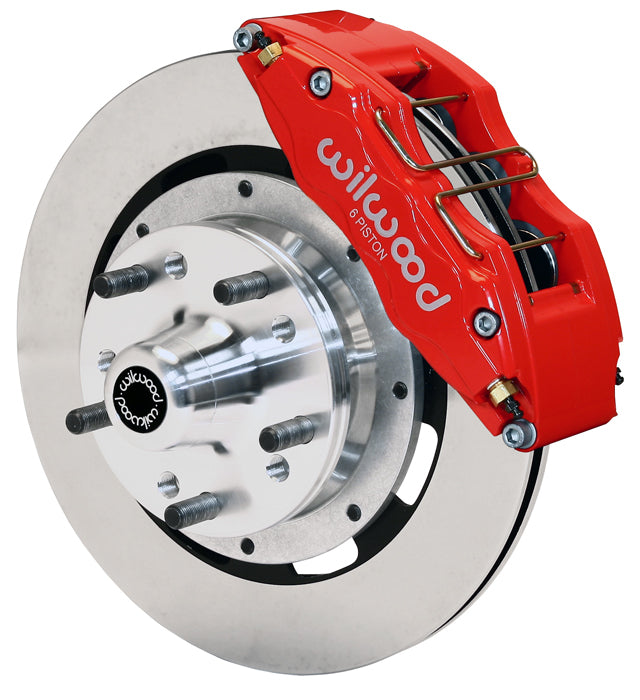

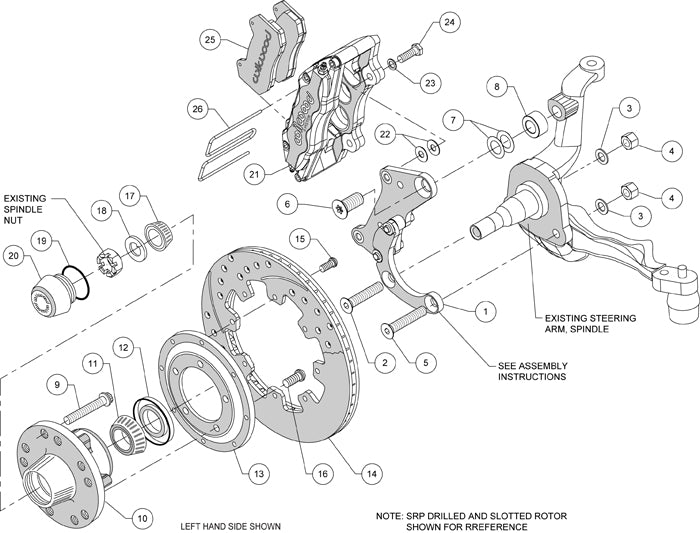

    ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • CHEVROLET:
      • CHEVROLET CORVETTE:
        • 1969-1982 C-3
      • CHEVROLET BEL AIR:
        • 1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)
        • 1969-1970, ALL
      • CHEVROLET BISCAYNE:
        • 1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)
        • 1969-1970, ALL
      • CHEVROLET BROOKWOOD:
        • 1969 WITH SPINDLES USED ON OE DRUM BRAKES
        • 1970, ALL
      • CHEVROLET CAPRICE:
        • 1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)
        • 1969-1970, ALL
      • CHEVROLET IMPALA:
        • 1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)
        • 1969-1970, ALL
      • CHEVROLET KINGSWOOD:
        • 1969 WITH SPINDLES USED ON OE DRUM BRAKES
        • 1970, ALL
      • CHEVROLET TOWNSMAN:
        • 1969 WITH SPINDLES USED ON OE DRUM BRAKES
        • 1970, ALL

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

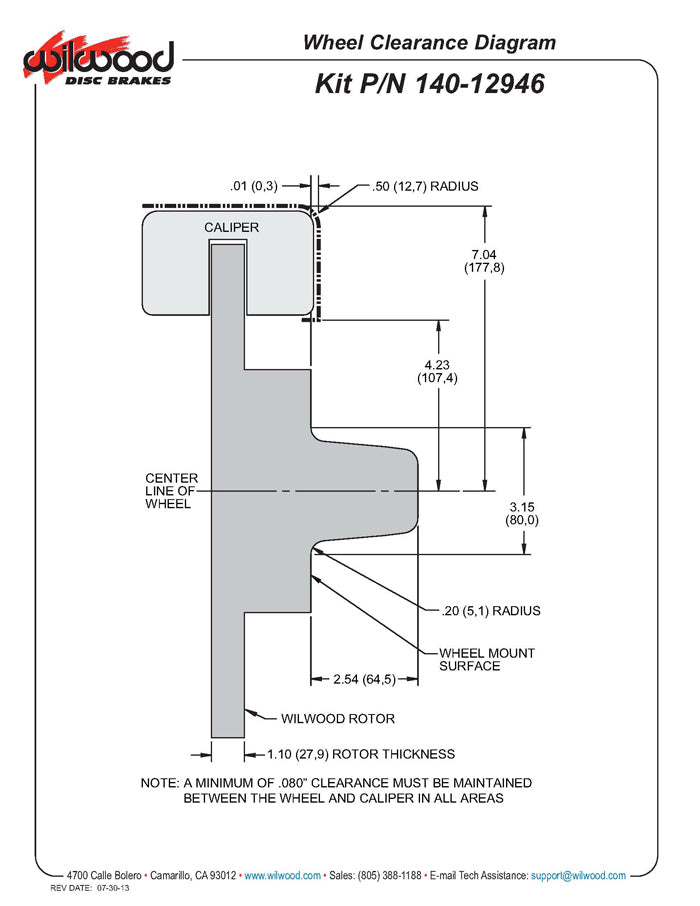

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

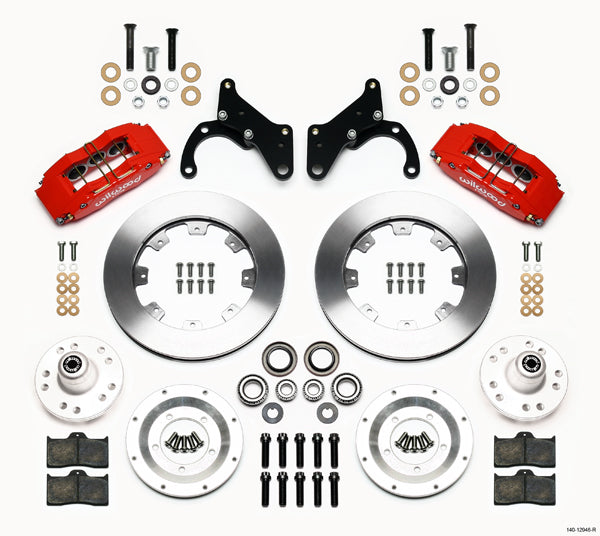

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • 1.10" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 47 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Impala Front Kits, 1969-1970
