40-52 OLDSMOBILE KIT,FRONT,FDL,11.75"

40-52 OLDSMOBILE KIT,FRONT,FDL,11.75"

WIL 140-12617B

$989.99
$989.99
View full details

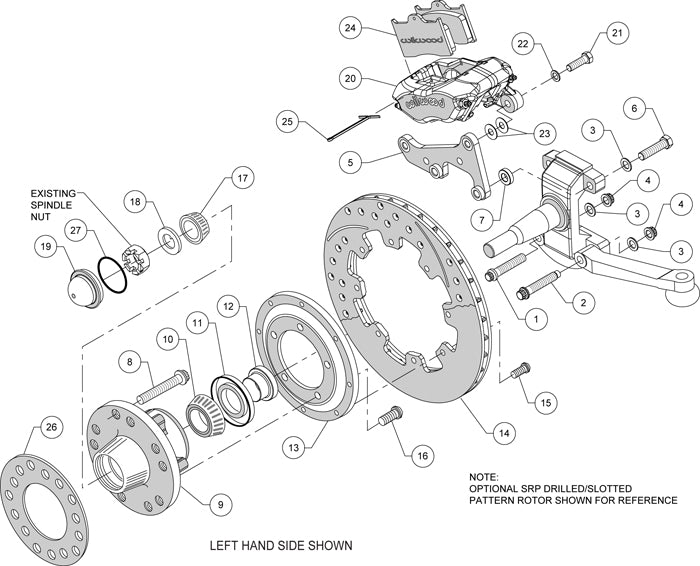

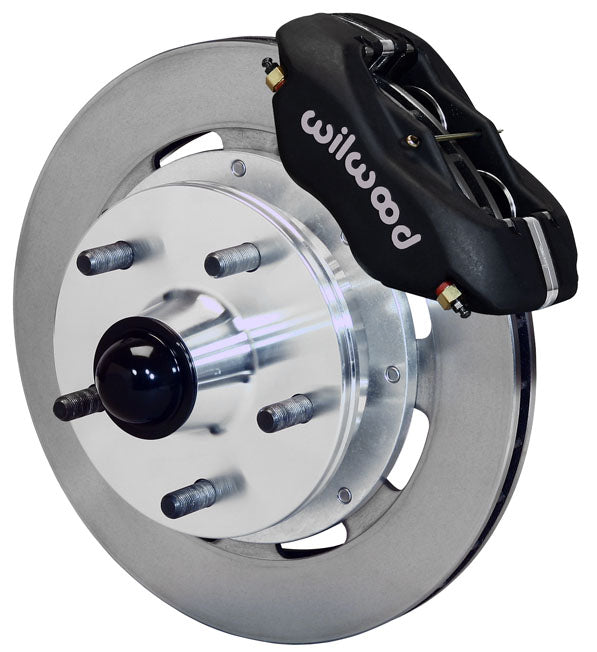

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE PRO SERIES FRONT HUB KIT & 11.75" DISC BRAKE KIT FOR:
    OLDSMOBILE:
    -1940-1946 OLDS SERIES 60*
    -1941-1948 OLDS SERIES 66*
    -1941-1948 OLDS SERIES 68*
    -1940 OLDS SERIES 70*
    -1941-1950 OLDS SERIES 76*
    -1941-1949 OLDS SERIES 78*
    -1949-1950 OLDS SERIES 88*
    -1940-1946 OLDS SERIES 90*
    -1941 OLDS SERIES 96*
    -1941-1949 OLDS SERIES 98*
    -1947 E-47*
    -1947 F-47*
    -1947 G-47*
    -1947 J-47*
    -1947 L-47*
    -1950-1952 OLDS 98*
    -1951 OLDS STANDARD 88*
    -1951-1952 OLDS DELUXE 88*
    -1951-1952 OLDS SUPER 88*

  • FEATURING STANDARD ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO-SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHURSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

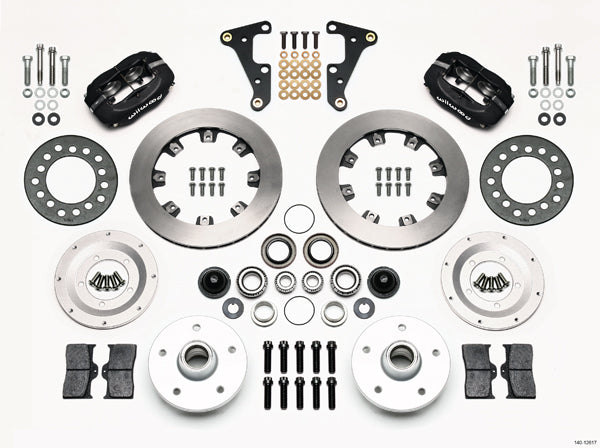

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 11.75" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Oldsmobile Kits > Olds Front Kits, 1940-1952
