59-64 IMPALA,63-64 CORVETTE,FRONT,14"

59-64 IMPALA,63-64 CORVETTE,FRONT,14"

WIL 140-12465B

$2,259.99
$2,259.99
View full details

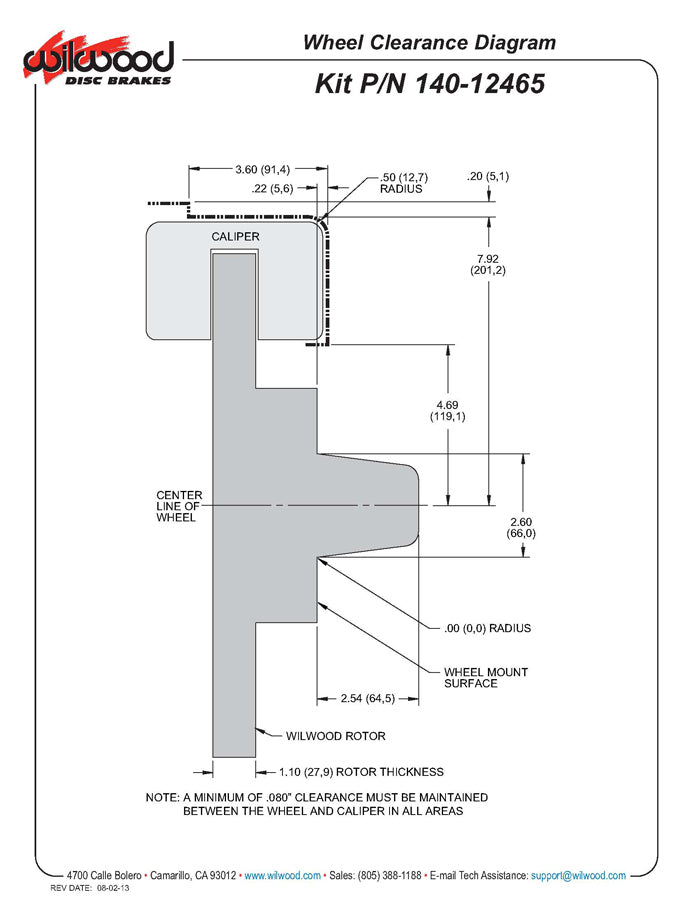

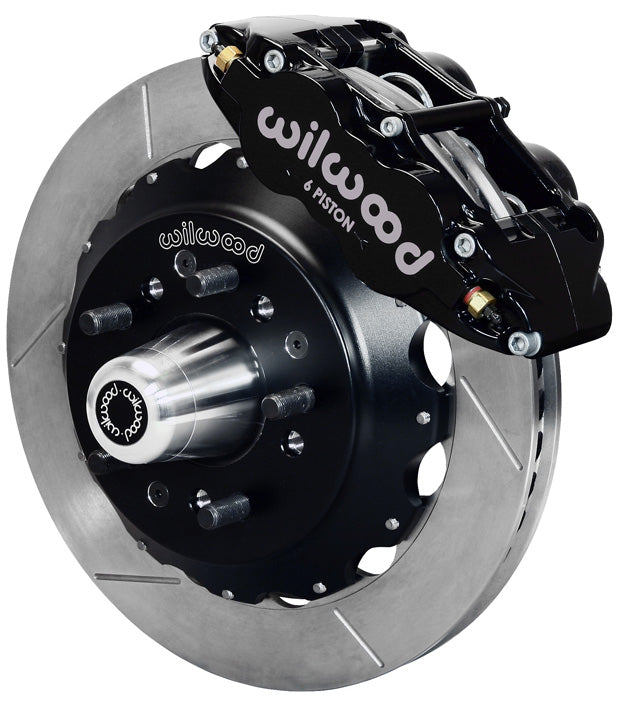

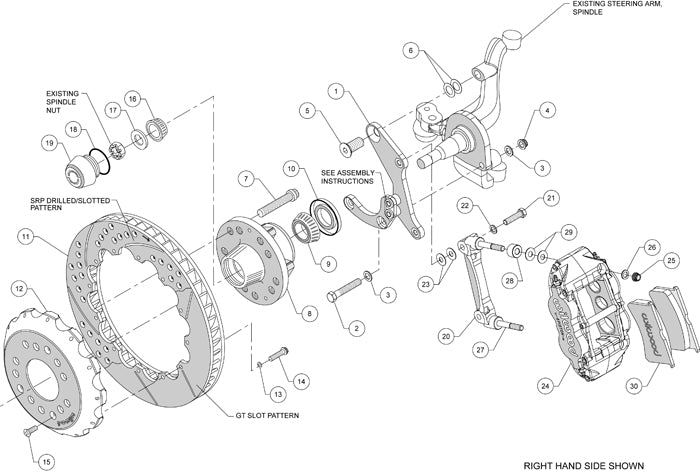

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD SUPERLITE 6 BIG BRAKE FRONT HUB & 14" DISC BRAKE KIT FOR:
    CHEVROLET:
    -1959-1964 CHEVROLET BEL AIR, ALL*
    -1959-1964 CHEVROLET BISCAYNE, ALL*
    -1959-1961 CHEVROLET BROOKWOOD, ALL*
    -1963-1964 CHEVROLET CORVETTE C-2*
    -1959-1960 CHEVROLET EL CAMINO, ALL*
    -1959-1964 CHEVROLET IMPALA, ALL*
    -1959-1961 CHEVROLET NOMAD, ALL*
    -1959-1960 CHEVROLET SEDAN DELIVERY, ALL*

  • FEATURING STANDARD ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE.
  • THE UNSURPASSED BRAKING CAPACITY OF THE SL6R FORGED BILLET 6-PISTON CALIPER SERVES AS THE BASE OF THESE BIG BRAKE KITS.
  • THEY ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED.
  • BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES.
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

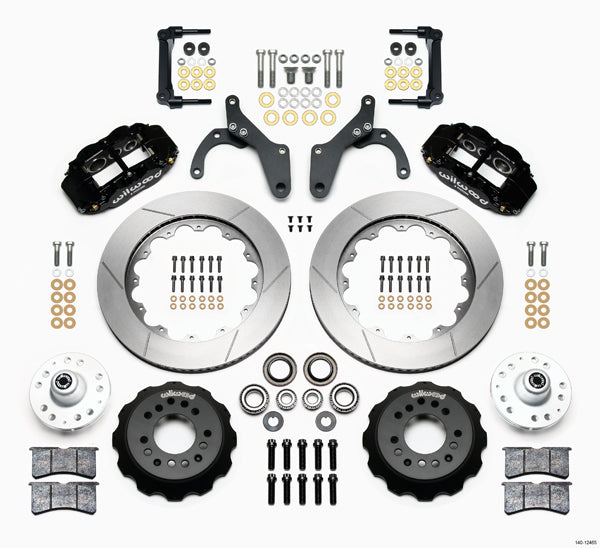

  • KIT INCLUDES:
    *STANDARD, 1.10" THICK X 14.00" O.D. ROTORS,
    *SUPERLITE 6R CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 62 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Corvette Front Kits, 1963-1964
