41-56 BUICK KIT,FRONT,FDL,1.29",11.88"

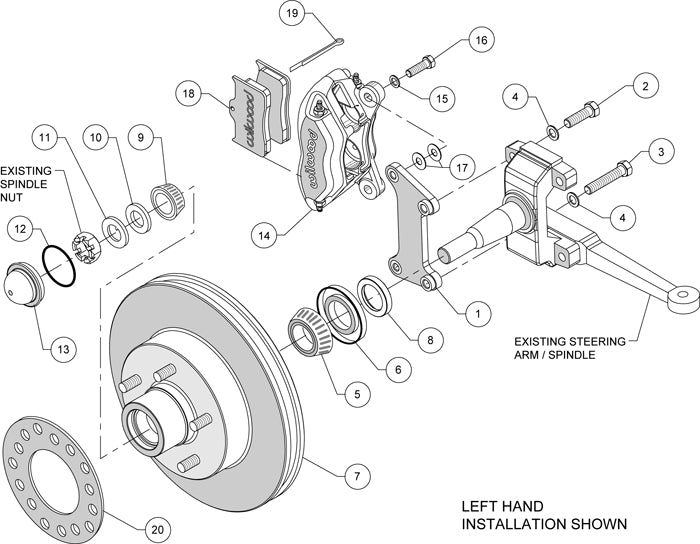

• ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.


• WILWOOD PRO SERIES DYNALITE BRAKE FRONT HUB & 11.88" DISC BRAKE KIT FOR:


* BUICK:
-1941-1942 BUICK SPECIAL SERIES 40-A
-1941-1942 BUICK SPECIAL SERIES 40-B
-1946-1949 BUICK SPECIAL SERIES 40
-1941-1949 BUICK SUPER SERIES 50
-1941-1942 BUICK CENTURY SERIES 60
-1941-1949 BUICK ROADMASTER SERIES 70
-1941-1942 BUICK LIMITED SERIES 90
-1954-1956 BUICK CENTURY
-1950-1956 BUICK ROADMASTER
-1954 BUICK SKYLARK
-1950-1956 BUICK SPECIAL
-1950-1956 BUICK SUPER

• WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
• WILWOODS FDL PRO-SERIES FRONT 1 PIECE HUB AND ROTOR KITS FOR 41-56 BUICKS OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. THIS COMPLETELY NEW KIT DESIGN, UTILIZES A LARGE 11.88" X 1.29" ROTOR AND HUB ASSEMBLY.
• BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST.
• INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS.
• FDL 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE CALIPERS, ROTORS AND, HUB ASSEMBLY, BRACKETS, HARDWARE, AND LINE KIT.

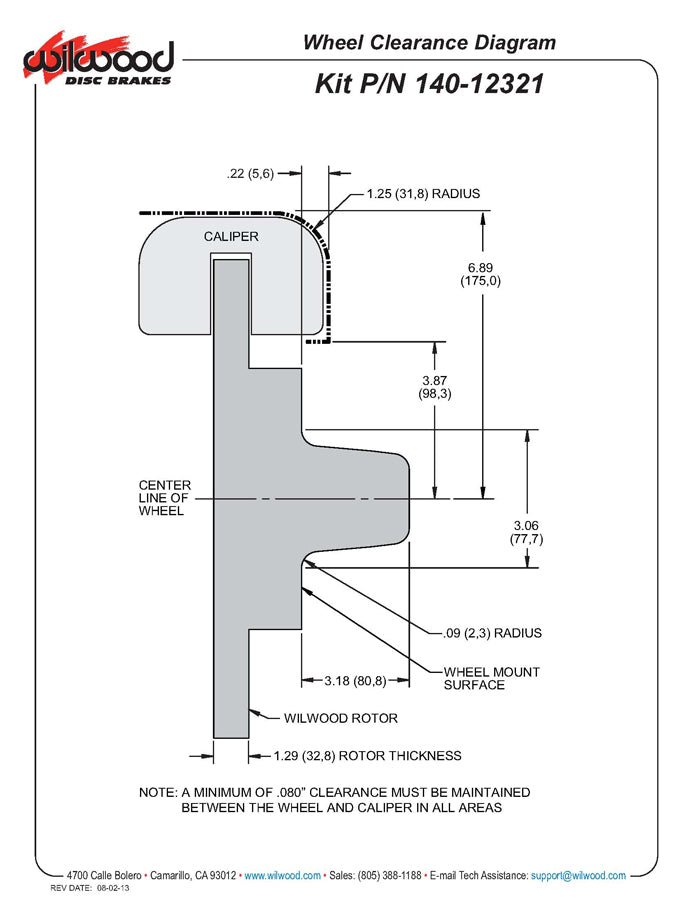

• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

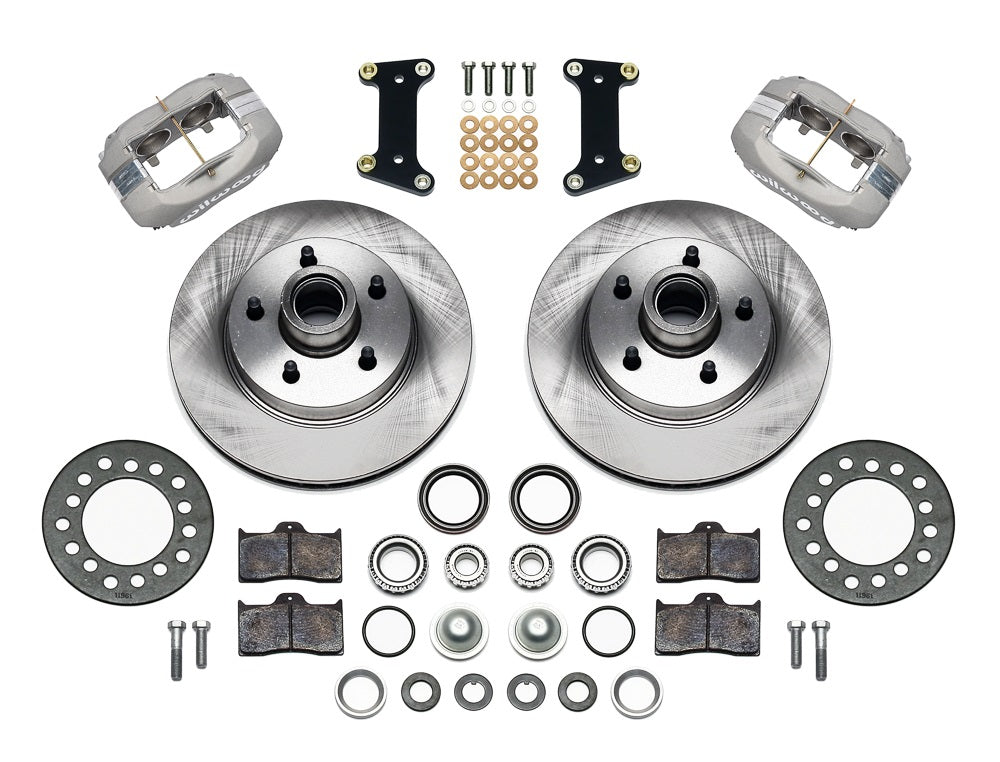

• KIT INCLUDES:

* 1.29" THICK X 11.88" O.D. 1 PIECE HUBS & ROTORS
* FORGED DYNALITE 4 PISTON CALIPERS
* CALIPER MOUNTING BRACKETS
* BP-10 SMART COMPOUND BRAKE PADS
* BEARINGS, SEALS, WASHERS, DUST CAPS, &
*ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

• COMPLETE KIT WEIGHS APPROXIMATELY 41 LBS.


• YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
