HEIDT'S 55-57 2" DROP KIT,FRONT,FDL,13"

BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE 6 PISTON BOLT-ON FRONT HAT, HUB, & 13" DISC BRAKE KIT (PART #140-12307) FOR BOTH FRONT WHEELS.

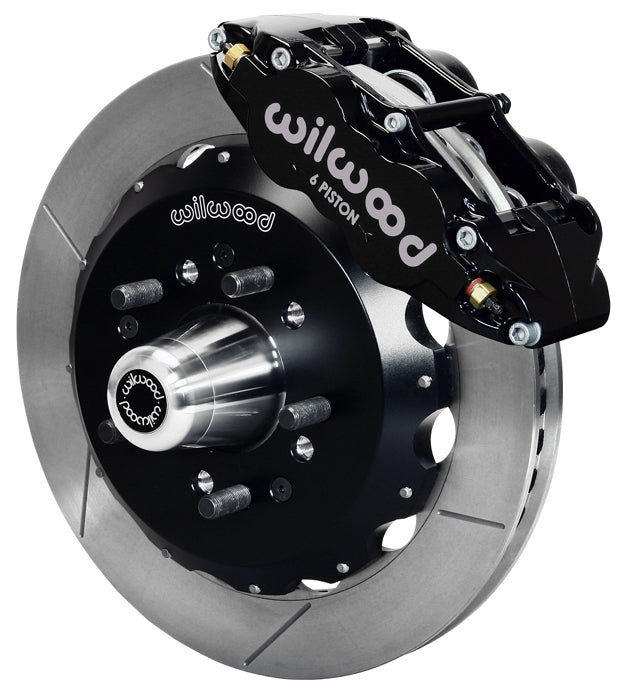

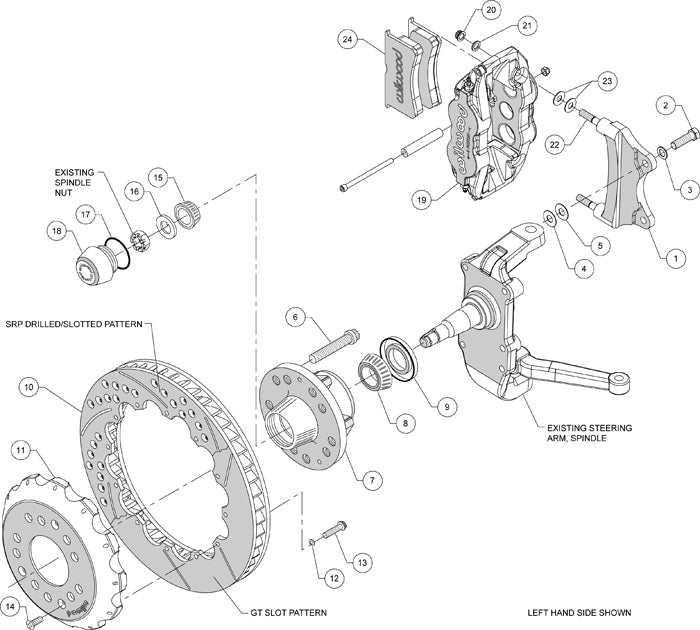

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• CHEVROLET:
  • 1955-1957 CHEVY 150 WITH HEIDTS 2" DROP SPINDLES
  • 1955-1957 CHEVY 210 WITH HEIDTS 2" DROP SPINDLES
  • 1955-1957 CHEVY BEL AIR WITH HEIDTS 2" DROP SPINDLES
  • 1955-1957 CHEVY NOMAD WITH HEIDTS 2" DROP SPINDLES
  • 1955-1957 CHEVY SEDAN DELIVERY WITH HEIDTS 2" DROP SPINDLES
  • 1957 CHEVY DEL RAY WITH HEIDTS 2" DROP SPINDLES

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

SUPERLITE 6 PISTON CALIPERS WITH 13" ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER AND STYLE FOR THESE KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, SL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. IT IS GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST, WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

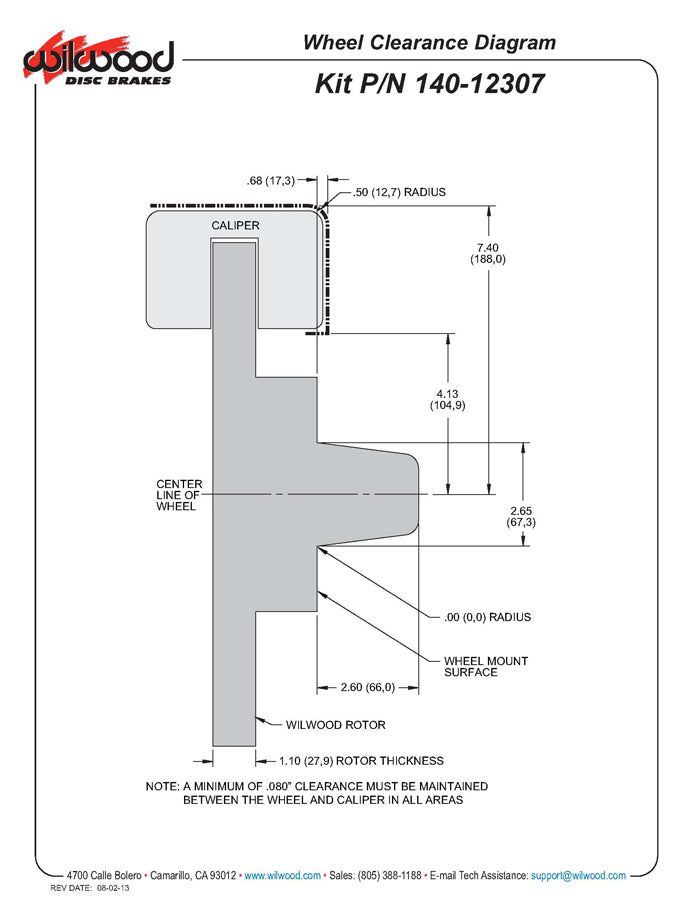

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

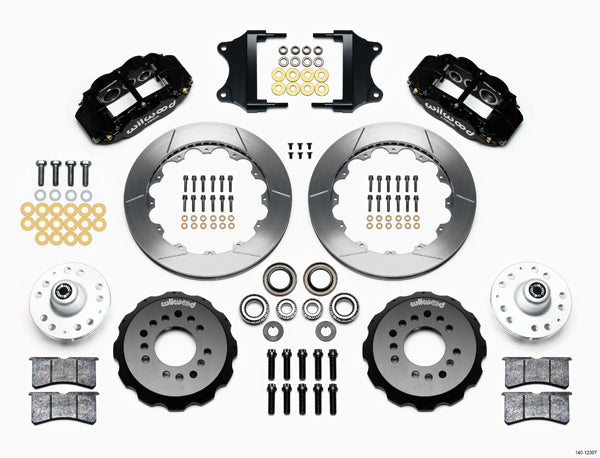

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 12.90" O.D. ROTORS
• SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• BRAKE HUBS
• BEARINGS, SEALS, STUDS, DUST CAPS, &
• ALL BOLTS, SHIMS, WASHERS, & NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 62 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
