70-78 CAMARO KIT,FRONT,1PC,12.90",RED

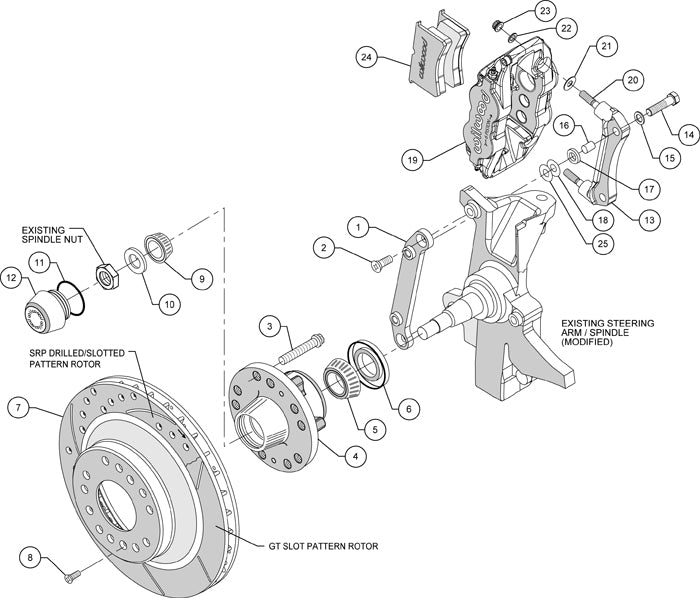

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1-PIECE DISC BRAKE KIT FOR:

*CHEVROLET:
-1970-1978 CAMARO WITH DISC BRAKE SPINDLES
-1973-1977 CHEVELLE WITH DISC BRAKE SPINDLES
-1977-1978 CONCOURS, ALL 1973-1977 EL CAMINO, ALL
-1977-1978 IMPALA WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1973-1977 MALIBU WITH DISC BRAKE SPINDLES
-1973-1977 MONTE CARLO WITH DISC BRAKE SPINDLES
-1975-1978 NOVA WITH DISC BRAKE SPINDLES

*GMC:
-1973-1977 SPRINT, ALL

*BUICK:
-1975 APOLLO WITH DISC BRAKE SPINDLES
-1973-1977 CENTURY WITH DISC BRAKE SPINDLES
-1977-1978 ESTATE WAGON WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1977-1978 LESABRE WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1973-1977 REGAL WITH DISC BRAKE SPINDLES
-1975-1978 SKYLARK WITH DISC BRAKE SPINDLES

*CADILLAC:
-1976 SEVILLE WITH DISC BRAKE SPINDLES

*OLDSMOBILE
-1973 4-4-2 WITH DISC BRAKE SPINDLES
-1977-1978 CUSTOM CRUISER WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1973-1977 CUTLASS WITH DISC BRAKE SPINDLES
-1977-1978 DELTA 88 WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1975-1978 OMEGA WITH DISC BRAKE SPINDLES
-1973-1976 VISTA CRUISER WITH DISC BRAKE SPINDLES

*PONTIAC
-1970-1978 FIREBIRD WITH DISC BRAKE SPINDLES
-1977-1978 BONNEVILLE WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1977-1978 CATALINA WITH OE SPINDLES THAT WERE USED WITH 11" STOCK ROTORS
-1973-1975 GRAND AM WITH DISC BRAKE SPINDLES
-1973-1977 GRAND PRIX WITH DISC BRAKE SPINDLES
-1973-1974 GTO WITH DISC BRAKE SPINDLES
-1973-1977 LEMANS WITH DISC BRAKE SPINDLES
-1977-1978 PHOENIX WITH DISC BRAKE SPINDLES
-1975-1977 VENTURA II WITH DISC BRAKE SPINDLES

FEATURING STANDARD ROTORS AND RED CALIPERS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS

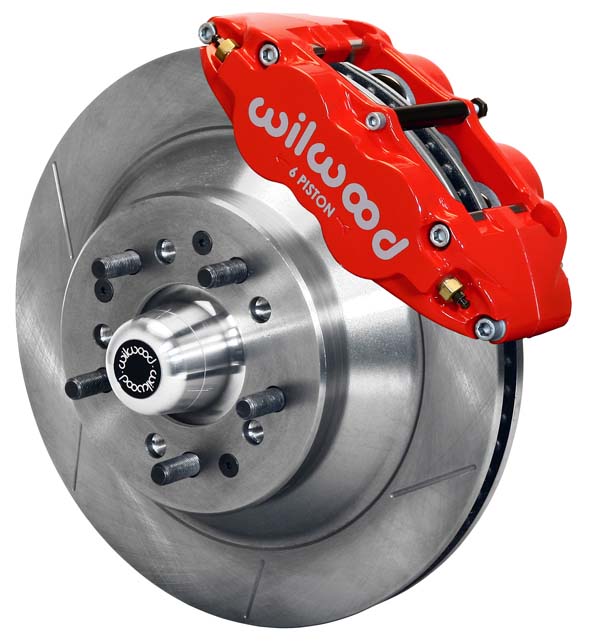

FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 12.90" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS

BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES

THESE KITS ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION

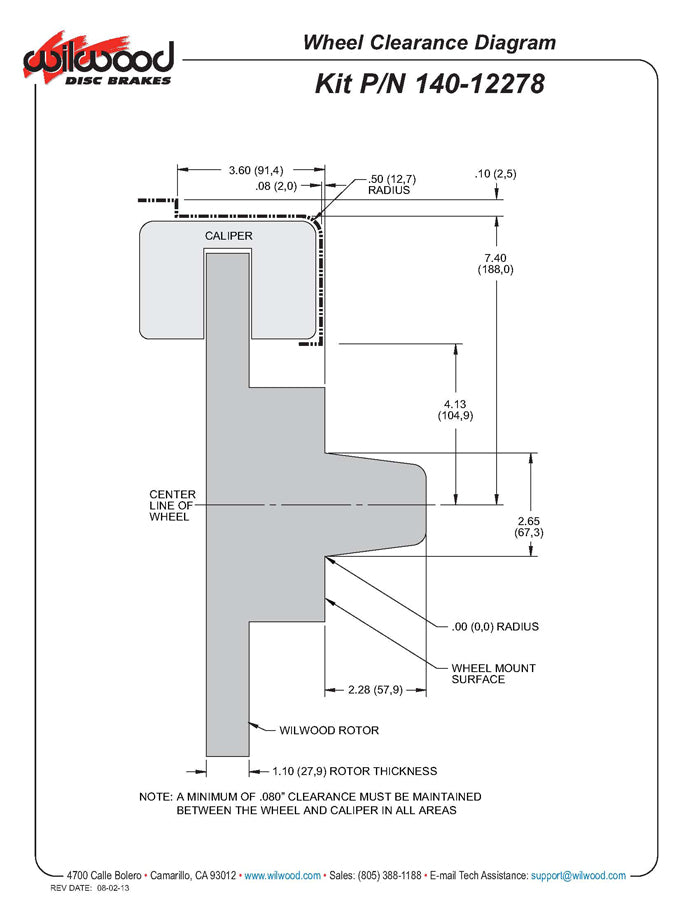

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS

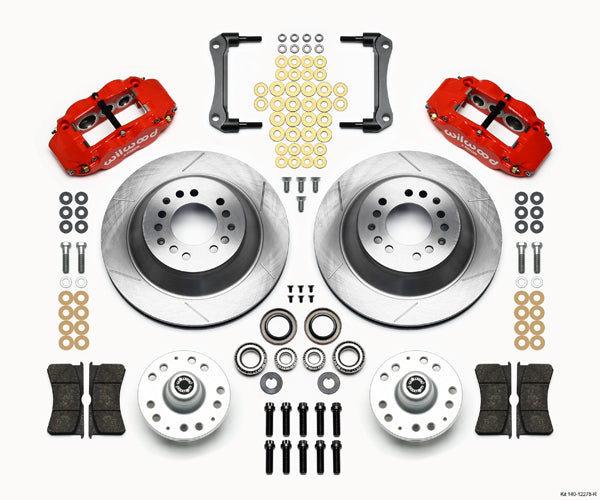

KIT INCLUDES:
*STANDARD, 1.10" THICK x 12.90" O.D. 1 PIECE ROTORS,
*FORGED NARROW SUPERLITE 6R RADIAL CALIPERS - RED,
*CALIPER MOUNTING BRACKETS,
*BP-10 SMART COMPOUND BRAKE PADS,
*BRAKE HUBS,
*BEARINGS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
*ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 60 LBS

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
