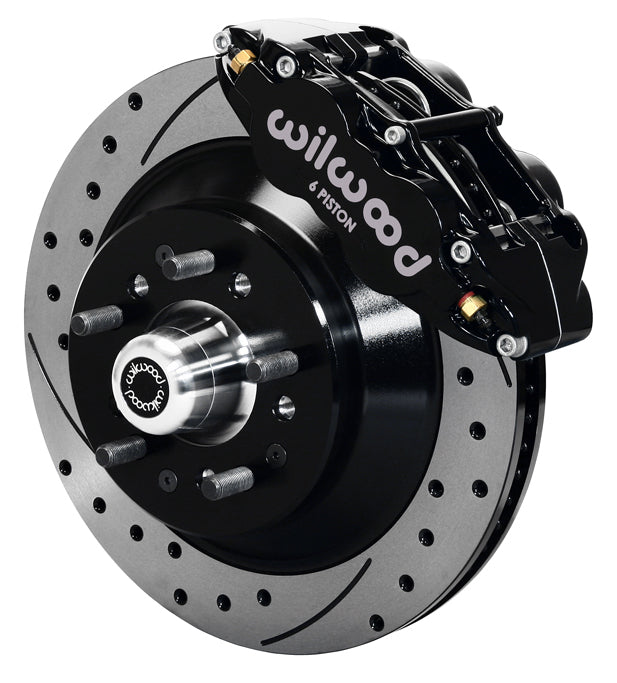

WWE PRO SPINDLE KIT,FRONT,13" DRILLED ROTORS,BLACK

BRAND NEW WILWOOD BIG BRAKE FORGED SUPERLITE BOLT-ON FRONT HUB & 13" DISC BRAKE KIT (PART #140-12276-D) FOR BOTH FRONT WHEELS.

THIS KIT FITS WILWOODS WWE PRO SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP). WILWOODS PROSPINDLE IS SPECIFICALLY DESIGNED FOR USE IN FABRICATED A-ARM SUSPENSIONS ON KIT CARS, STREET RODS, DRAG CARS AND OTHER CUSTOM OR RACE APPLICATIONS THAT ARE CONFIGURED AROUND PINTO/MUSTANG LL SUSPENSION GEOMETRY. THOSE SPINDLES USE COMMON PINTO AND MUSTANG LL TIE ROD ENDS, BALL JOINTS, WHEEL BEARINGS AND SEALS. WE DO HAVE THOSE SPINDLES AVAILABLE (STOCK HEIGHT & 2" DROP), AS WELL AS COMPLETE SETS WITH THESE BRAKES WITH THE SPINDLES INCLUDED (STOCK HEIGHT & 2" DROP). THIS BRAKE KIT IS ONLY DESIGNED FOR USE WITH THE WWE PRO SPINDLES. IT WONT FIT OTHER SPINDLES.

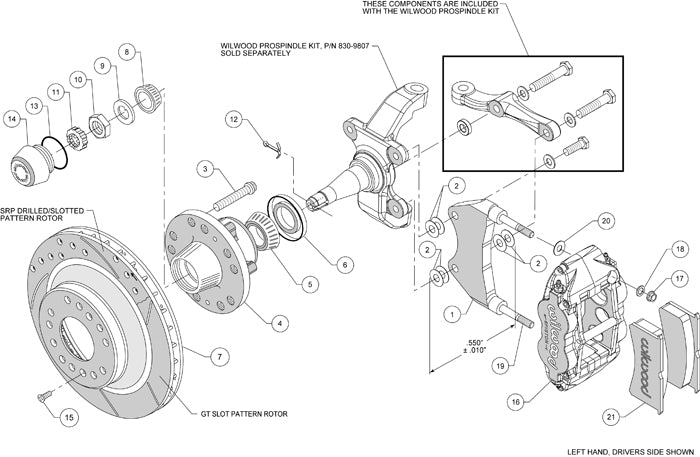

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES DRILLED & SLOTTED ROTORS AND POWDER-COATED BLACK CALIPERS.

FITS:

• VEHICLES EQUIPPED WITH WILWOOD WWE PRO-SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FNSL6R BILLET FORGED 6-PISTON CALIPERS WITH 12.88" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. THESE ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST, WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

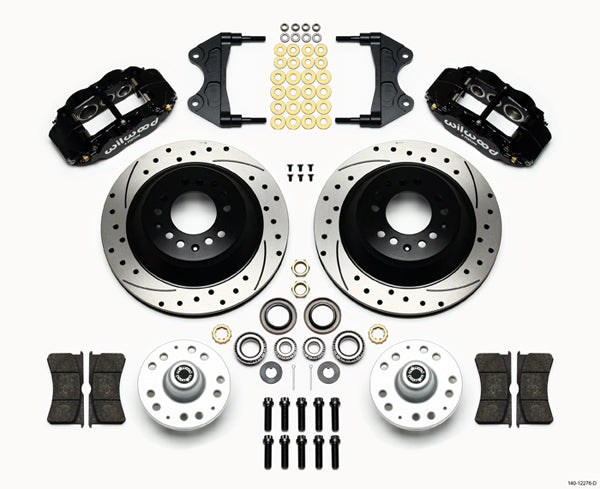

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS
• FORGED SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS
• BEARINGS
• SEALS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 61 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
