69-70 IMPALA,69-82 CORVETTE,FRONT,12",DR

69-70 IMPALA,69-82 CORVETTE,FRONT,12",DR

WIL 140-12045D

$1,239.99
$1,239.99
View full details

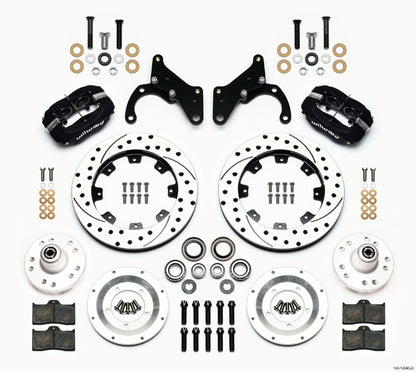

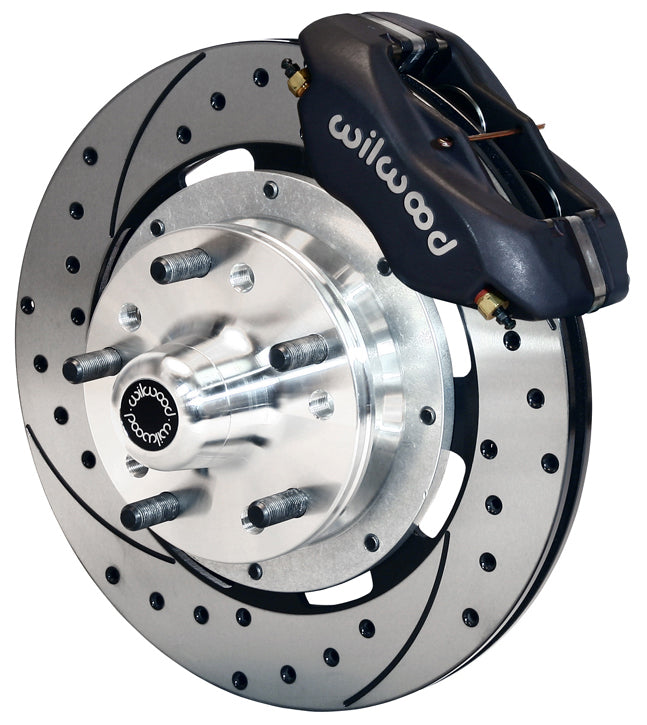

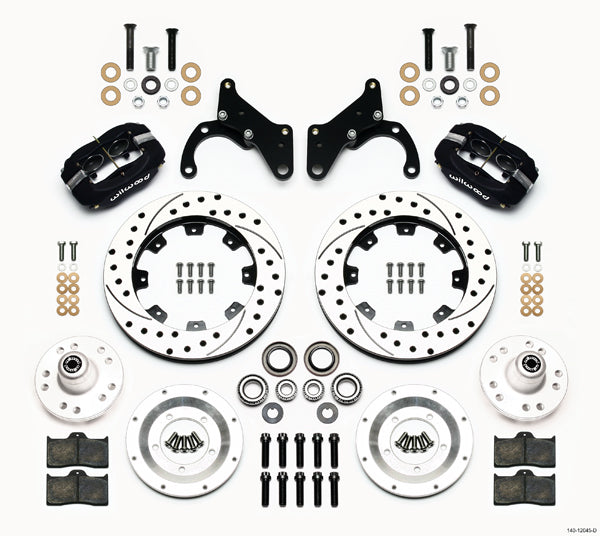

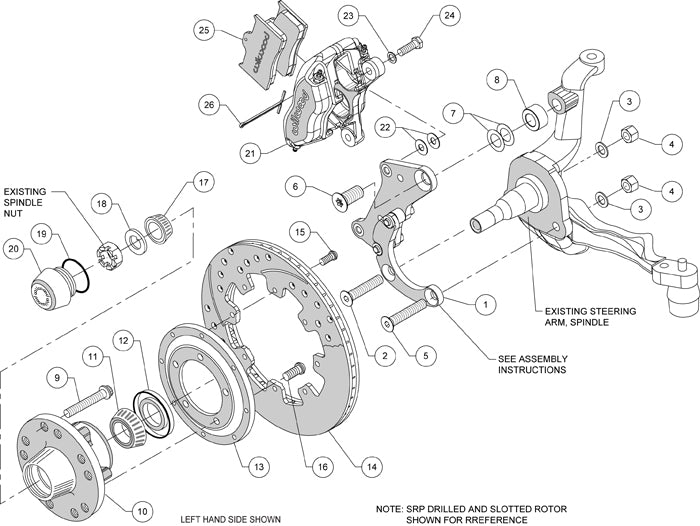

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT KIT FOR:
    CHEVROLET CORVETTE:
    -1969-1982 C-3*
    CHEVROLET BEL AIR:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL*
    CHEVROLET BISCAYNE:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, AL*
    CHEVROLET BROOKWOOD:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL
    CHEVROLET CAPRICE:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL
    CHEVROLET IMPALA:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL*
    CHEVROLET KINGSWOOD:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL*
    CHEVROLET TOWNSMAN:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL*

  • FEATURING DRILLED & SLOTTED ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES

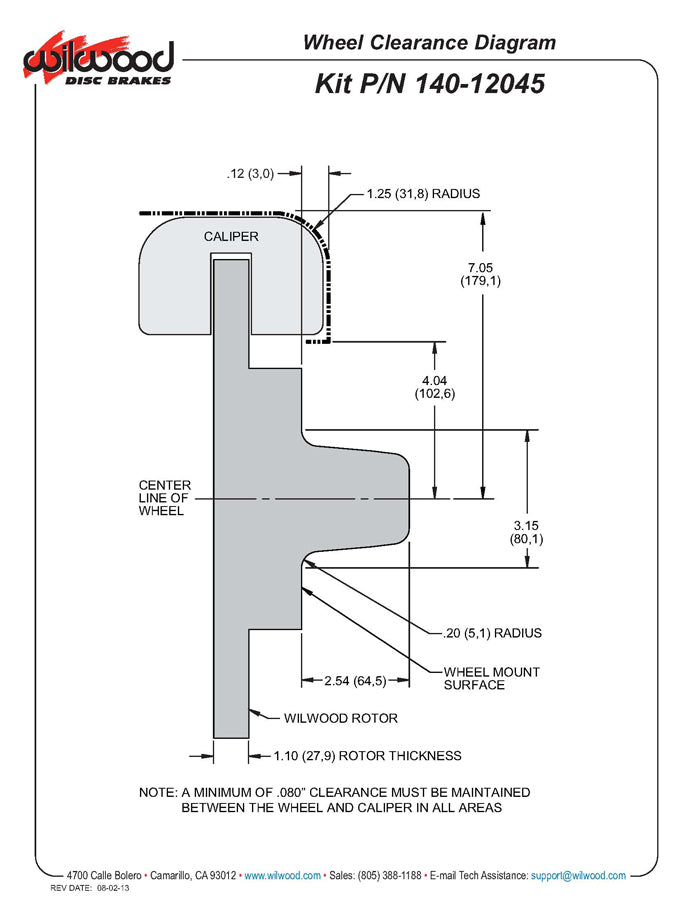

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK X 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Impala Front Kits, 1969-1970
