69-70 IMPALA,69-82 CORVETTE,FRONT,11,RED

69-70 IMPALA,69-82 CORVETTE,FRONT,11,RED

WIL 140-12040R

$1,029.99
$1,029.99
View full details

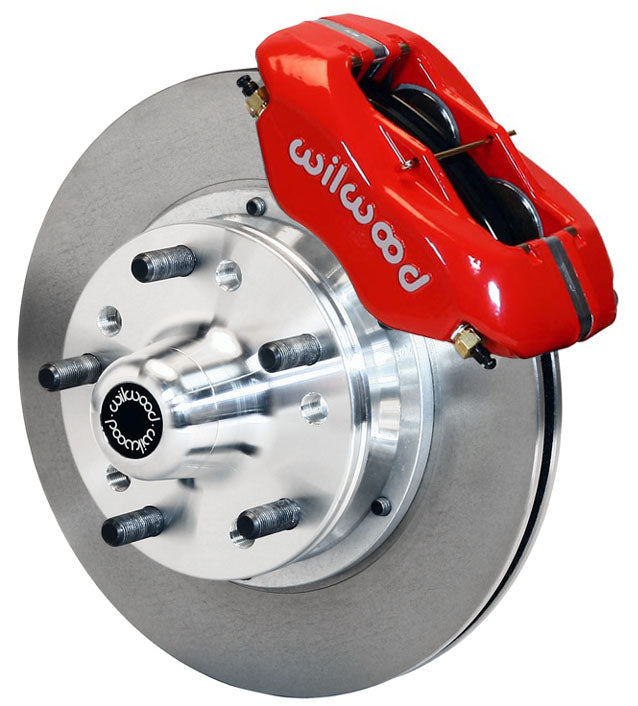

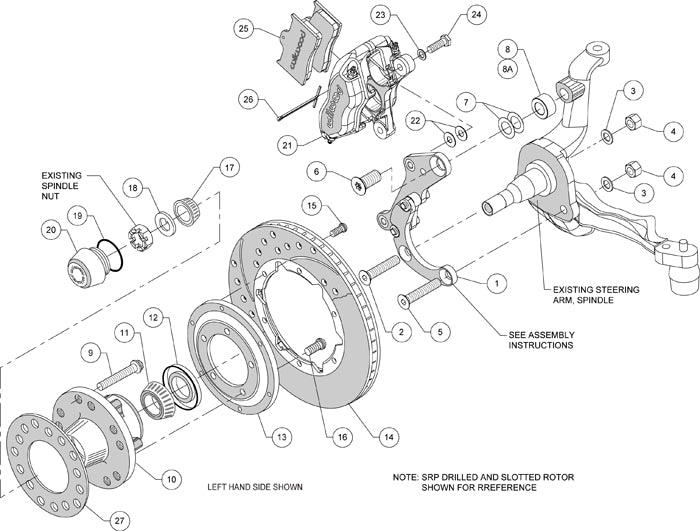

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT FOR:
    CHEVROLET CORVETTE:
    -1969-1982 C-3*
    CHEVROLET BEL AIR:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL*
    CHEVROLET BISCAYNE:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, AL*
    CHEVROLET BROOKWOOD:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL
    CHEVROLET CAPRICE:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL
    CHEVROLET IMPALA:
    -1968 WITHOUT POWER DISC BRAKES (SINGLE PISTON CALIPER)*
    -1969-1970, ALL*
    CHEVROLET KINGSWOOD:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL*
    CHEVROLET TOWNSMAN:
    -1969 WITH SPINDLES USED ON OE DRUM BRAKES*
    -1970, ALL*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIAST
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS

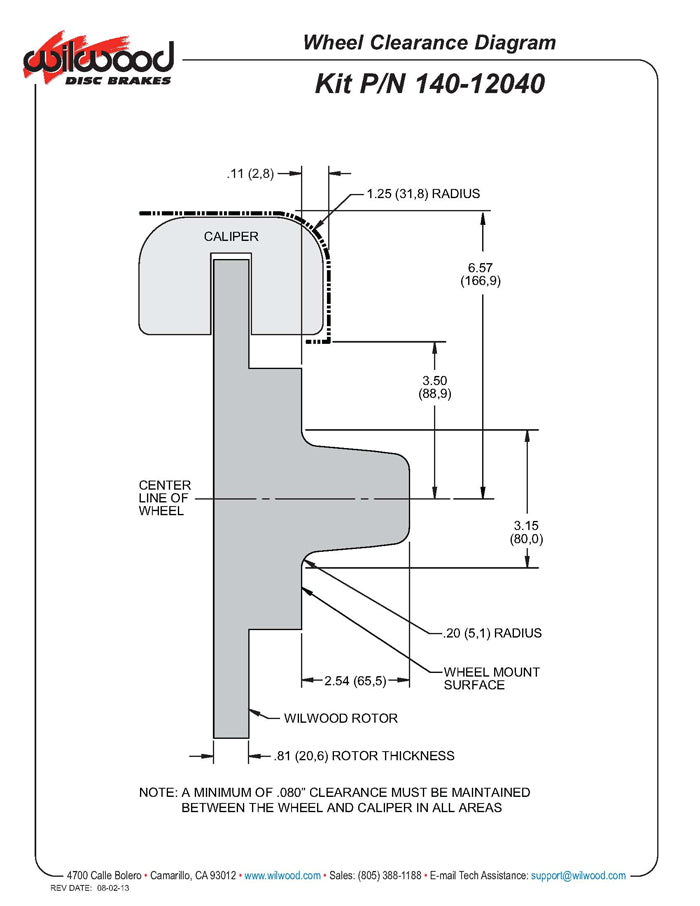

  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

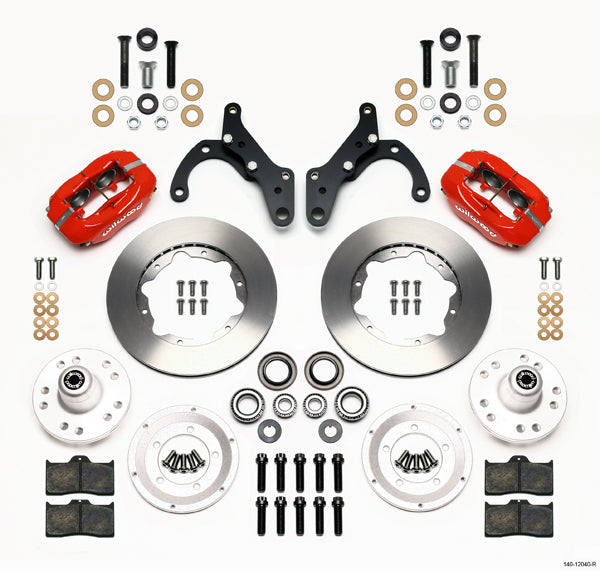

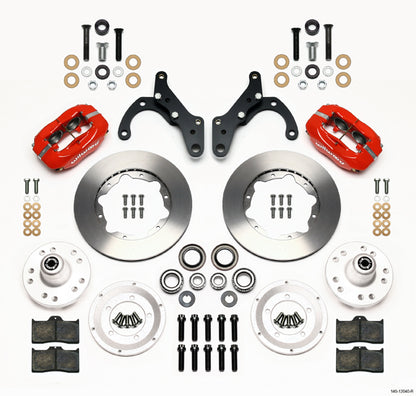

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 41 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Impala Front Kits, 1969-1970
