84-87 CORVETTE C4,REAR PB,12.88",DRILLED,RED

84-87 CORVETTE C4,REAR PB,12.88",DRILLED,RED

WIL 140-11920DR

$1,949.99
$1,949.99
View full details

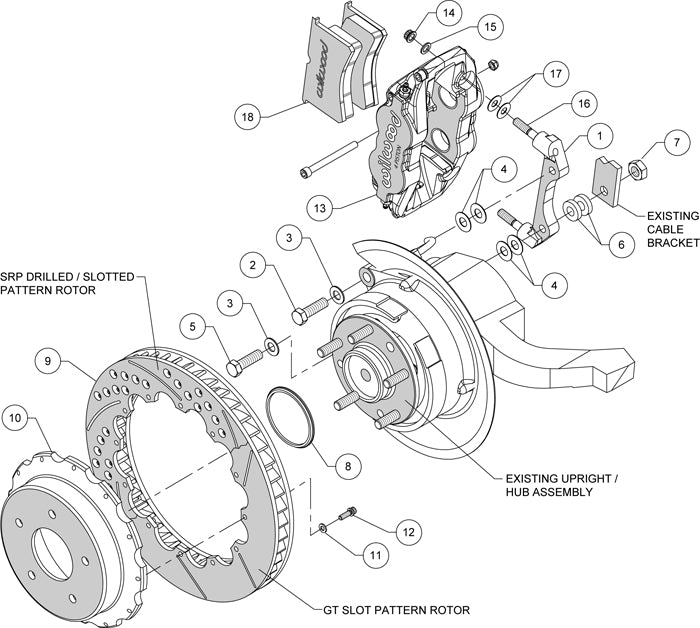

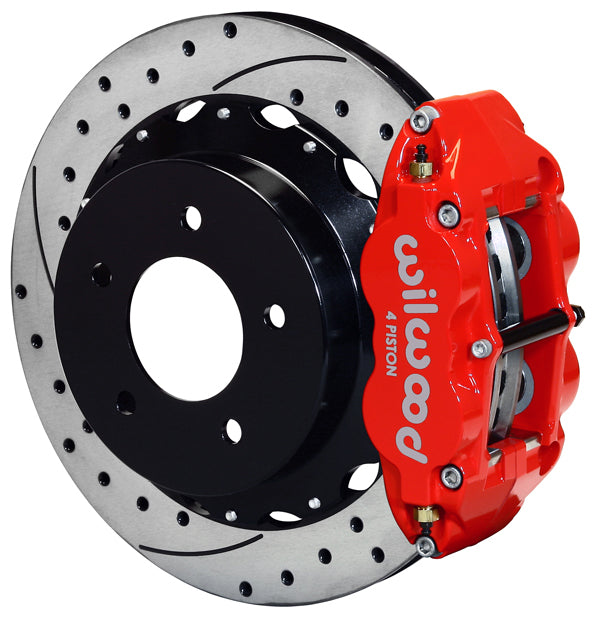

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD SUPERLITE 4 PREMIUM BIG BRAKE 12.90" REAR DISC BRAKE KIT FOR OE PARKING BRAKE FOR:
    CHEVROLET:
    *1984-1987 CORVETTE C-4

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • BILLET SUPERLITE 4R FOUR PISTON CALIPERS ARE COMBINED WITH BP-10 COMPOUND PADS AND 13" ROTORS IN THIS SERIES OF BIG BRAKE KITS FOR CUSTOM HIGH PERFORMANCE STREET AND SHOW MACHINES.
  • THIS SERIES OF SPECIALIZED KITS RETAINS FULL USE OF THE OE PARKING BRAKE, MASTER CYLINDER OUTPUT, AND ABS WHERE USED. SL4R REAR KITS PROVIDE INCREASED BRAKE CAPACITY & COMPLIMENTARY STYLE AND PERFORMANCE WITH FRONT BRAKE UPGRADES IN CONJUNCTION WITH WHEEL, TIRE, AND SUSPENSION UPGRADES.
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

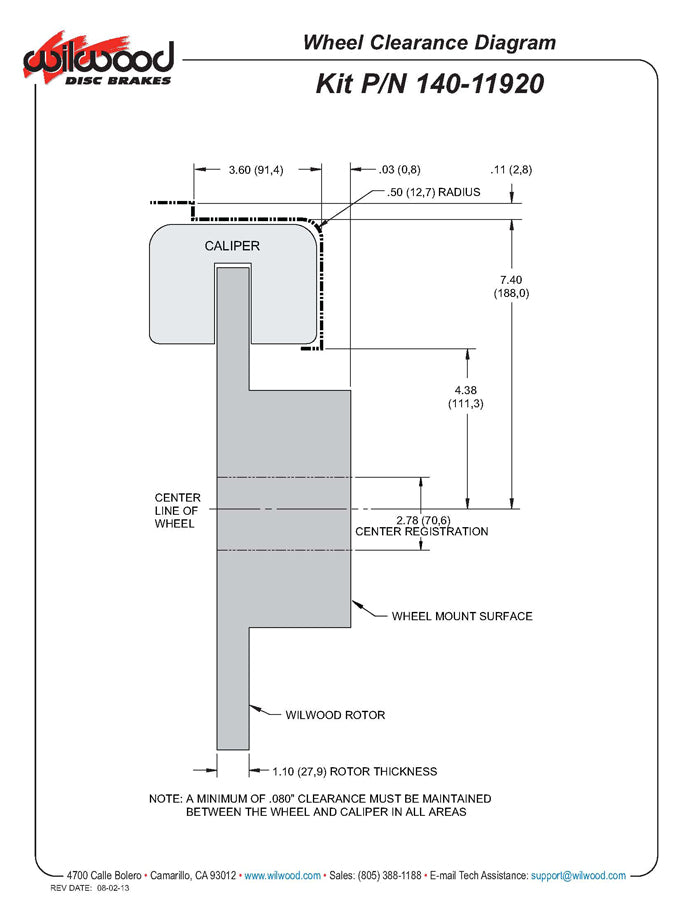

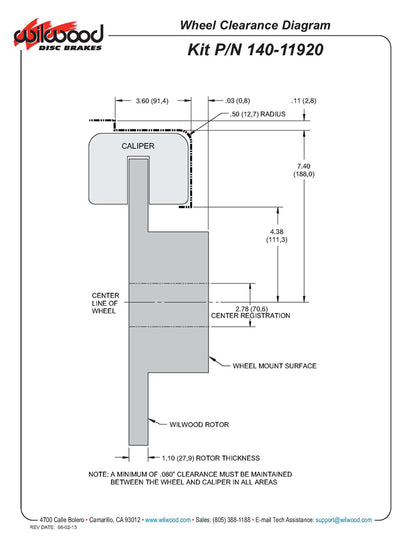

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

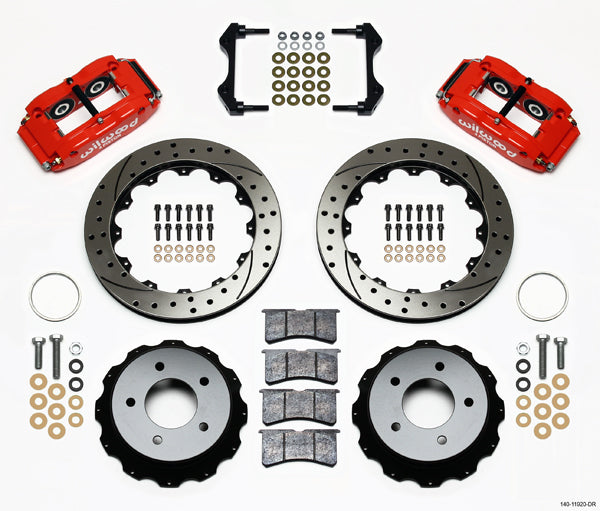

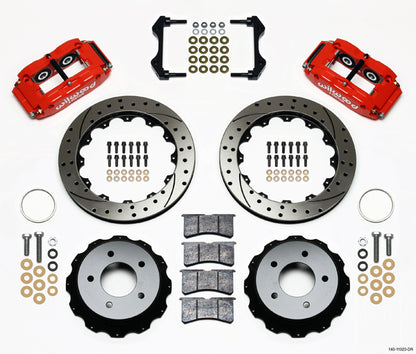

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK X 12.90" O.D. ROTORS,
    *BILLET SUPERLITE 4R CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 53 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Corvette Rear Kits, 1984-1987
