05-11 DODGE,CHRYSLER,REAR,14.25",DRILLED

05-11 DODGE,CHRYSLER,REAR,14.25",DRILLED

WIL 140-11765D

$2,289.99
$2,289.99
View full details

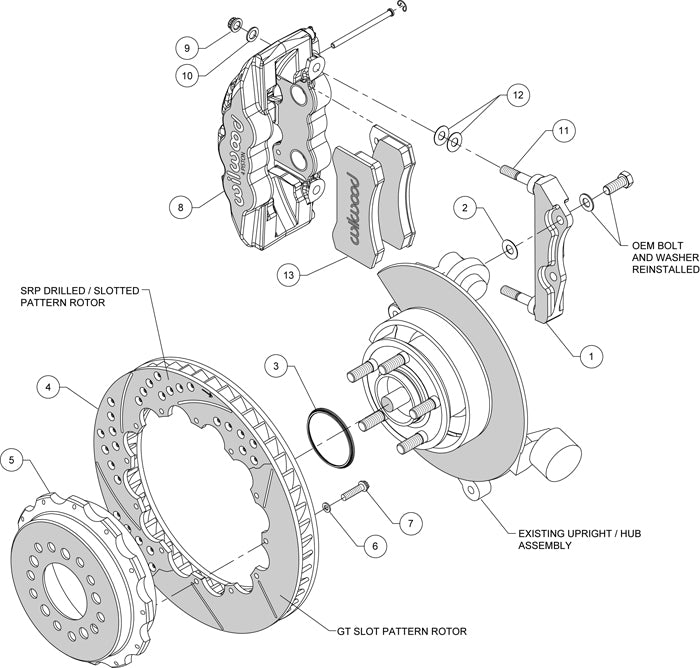

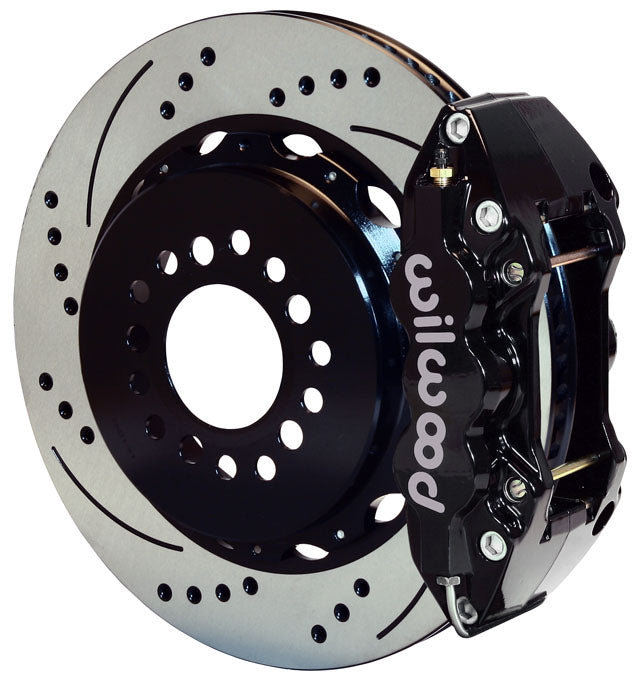

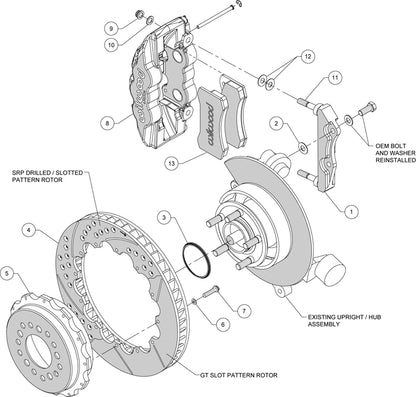

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • W4A BIG BRAKE PRO SERIES BOLT-ON REAR HAT & 14.25" DISC BRAKE KIT FOR:
    DODGE:
    -2009-2010 DODGE CHALLENGER, 3.5L*
    -2009-2012 DODGE CHALLENGER, 5.7L*
    -2011-2012 DODGE CHALLENGER, 3.6L*
    -2005 DODGE CHARGER, ALL RWD EXCEPT SRT-8 OR POLICE PACKAGE*
    -2006-2010 DODGE CHARGER, RWD 2.7L*
    -2006-2010 DODGE CHARGER, RWD 3.5L*
    -2006-2009 DODGE CHARGER, RWD 5.7L*
    -2010-2013 DODGE CHARGER, RWD 5.7L WITH DUAL PISTON CALIPERS*
    -2011-2013 DODGE CHARGER, RWD 3.6L*
    -2005 DODGE MAGNUM, ALL RWD EXCEPT SRT-8*
    -2006-2008 DODGE MAGNUM, RWD 2.7L*
    -2006-2008 DODGE MAGNUM, RWD 3.5L*
    -2006-2008 DODGE MAGNUM, RWD 5.7L*
    CHRYSLER:
    -2005 CHRYSLER 300, ALL RWD EXCEPT SRT-8*
    -2006-2011 CHRYSLER 300, ALL RWD*
    -2012 CHRYSLER 300, RWD 3.6L*
    -2012 CHRYSLER 300, RWD 5.7L*
    -2005 CHRYSLER 300C, ALL RWD EXCEPT SRT-8*
    -2006-2010 CHRYSLER 300C, RWD 5.7L EXCEPT SRT-8*
    -2011-2012 CHRYSLER 300C, ALL RWD*

  • FEATURING DRILLED & SLOTTED ROTORS AND BLACK CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • W4AR BIG BRAKE REAR AXLE KITS REPLACE THE FACTORY DISC BRAKES AND USE THE OE PARKING BRAKE ASSEMBLY AS A COMPLIMENT TO FRONT BIG BRAKE UPGRADES ON LATE MODEL HIGH PERFORMANCE VEHICLES
  • HIGH CAPACITY BRAKING FROM THE W4AR CALIPERS, BP-10 COMPOUND PADS, AND OVERSIZED 14.25" ROTORS ARE MATCHED TO THE OE MASTER CYLINDER OUTPUT, ABS FUNCTION, AND INDIVIDUAL VEHICLE BIAS REQUIREMENTS

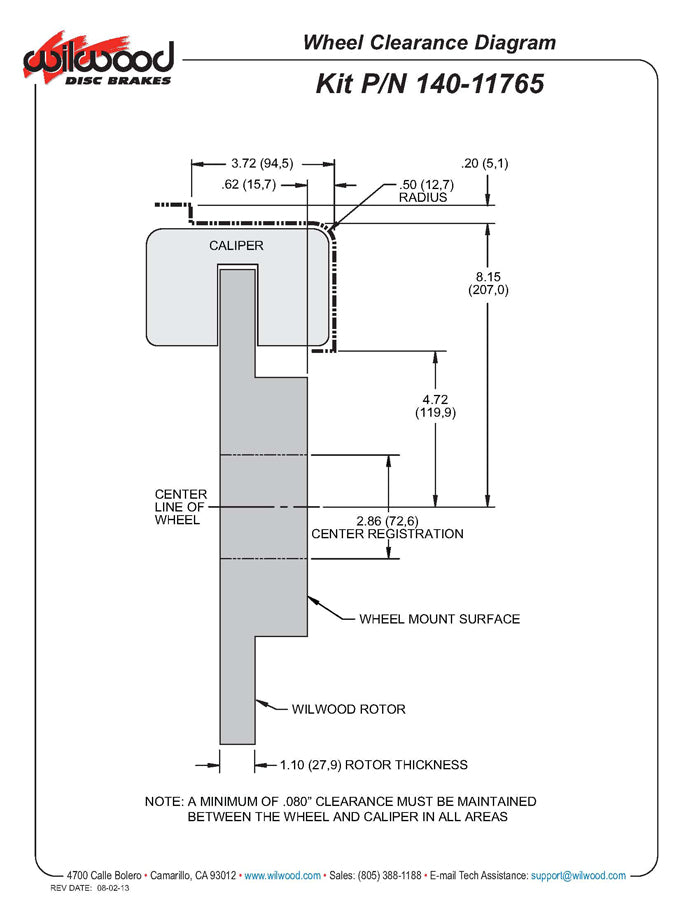

  • THESE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS

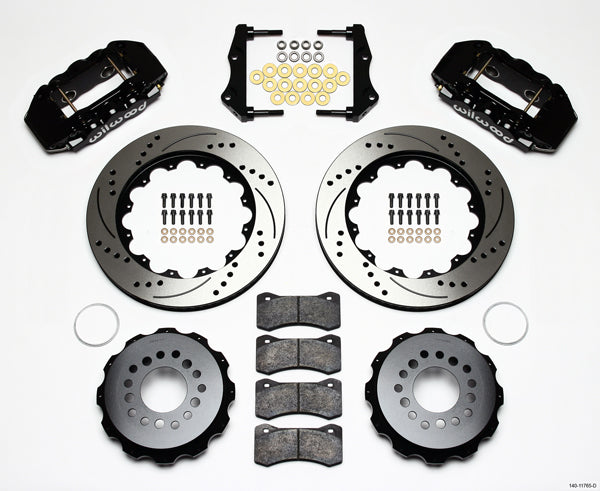

  • KIT INCLUDES:
    *DRILLED & SLOTTED, 1.10" THICK X 14.25" O.D. ROTORS,
    *W4A CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BIG BRAKE HATS,
    *WASHERS, SHIMS, SPACERS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 80 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Dodge Kits > Charger Rear Kits, 2005 and Newer
