70-78 CAMARO KIT,FRONT,FDL,11",DRILLED,RED

70-78 CAMARO KIT,FRONT,FDL,11",DRILLED,RED

WIL 140-11007DR

$1,089.99
$1,089.99
View full details

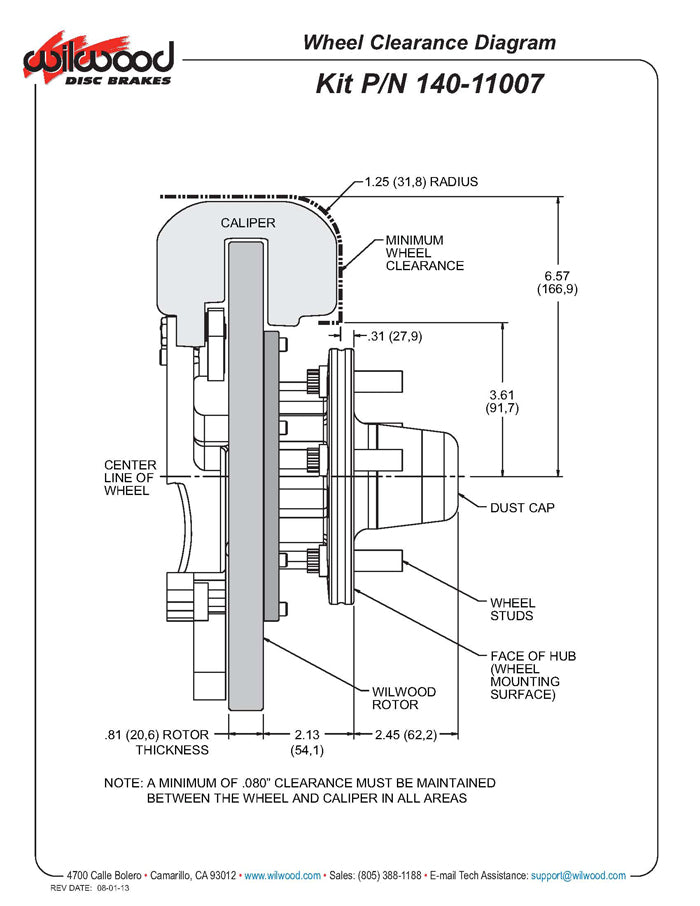

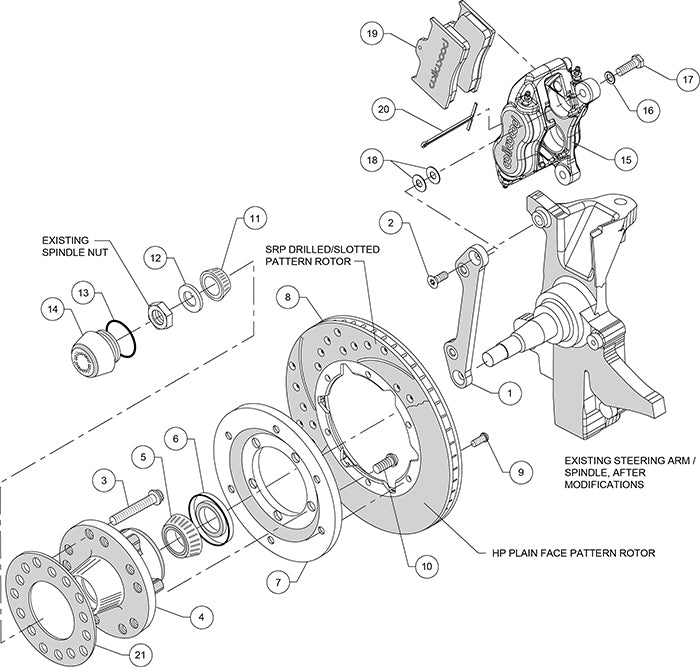

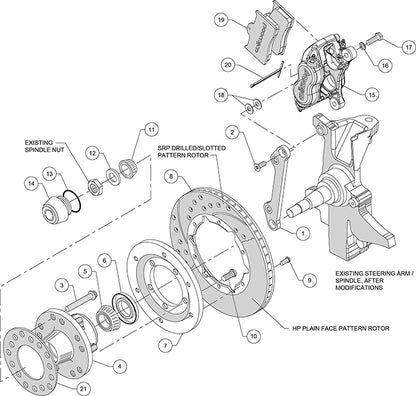

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE PRO SERIES FRONT HUB KIT & 11.00" DISC BRAKE KIT FOR:
    CHEVROLET:
    *1970-1978 CAMARO WITH DISC BRAKE SPINDLES
    *1973-1977 CHEVELLE WITH DISC BRAKE SPINDLES
    *1973-1977 EL CAMINO WITH DISC BRAKE SPINDLES
    *1973-1979 MALIBU WITH DISC BRAKE SPINDLES
    *1973-1977 MONTE CARLO WITH DISC BRAKE SPINDLES
    *1977-1978 IMPALA WITH OE 11" ROTOR SPINDLES
    *1977-1978 CONCOURS, ALL
    *1975-1978 NOVA WITH DISC BRAKE SPINDLES
    GMC:
    *1973-1977 SPRINT WITH DISC BRAKE SPINDLES
    BUICK:
    *1973-1977 CENTURY WITH DISC BRAKE SPINDLES
    *1973-1977 REGAL WITH DISC BRAKE SPINDLES
    *1975-1978 SKYLARK WITH DISC BRAKE SPINDLES
    *1975 APOLLO WITH DISC BRAKE SPINDLES
    *1977-1978 ESTATE WAGON WITH OE 11" ROTOR SPINDLES
    *1977-1978 LESABRE WITH OE 11" ROTOR SPINDLES
    CADILLAC:
    *1976 SEVILLE WITH DISC BRAKE SPINDLES
    OLDSMOBILE:
    *1973-1977 CUTLASS WITH DISC BRAKE SPINDLES
    *1973-1976 VISTA CRUISER WITH DISC BRAKE SPINDLES
    *1973 4-4-2 WITH DISC BRAKE SPINDLES
    *1975-1978 OMEGA WITH DISC BRAKE SPINDLES
    *1977-1978 88 WITH OE 11" ROTOR SPINDLES
    *1977-1978 CUSTOM CRUISER WITH OE 11" ROTOR SPINDLES
    PONTIAC:
    *1970-1978 FIREBIRD WITH DISC BRAKE SPINDLES
    *1973-1977 GRAND PRIX WITH DISC BRAKE SPINDLES
    *1973-1977 LEMANS WITH DISC BRAKE SPINDLES
    *1975-1977 VENTURA II WITH DISC BRAKE SPINDLES
    *1977-1978 PHOENIX WITH DISC BRAKE SPINDLES
    *1977-1978 BONNEVILLE WITH OE 11" ROTOR SPINDLES
    *1977-1978 CATALINA WITH OE 11" ROTOR SPINDLES

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL PRO-SERIES FRONT HUB KITS OFFER COMPLETE DISC BRAKE UPGRADE SOLUTIONS FOR TRADITIONAL NON-ABS SPINDLE APPLICATIONS ON AMERICAN MUSCLE CARS, VINTAGE RODS, & HEAVYWEIGHT DRAG CARS
  • BASED ON THE VENERABLE FORGED BILLET DYNALITE CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS & STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHURSIASTS
  • MOST KITS REQUIRE NO MODIFICATION FOR INSTALLATION
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS

  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

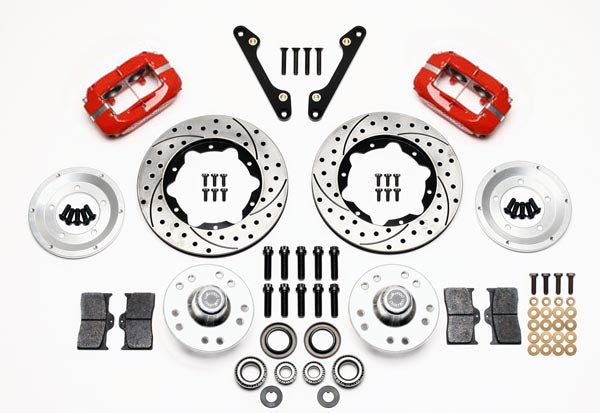

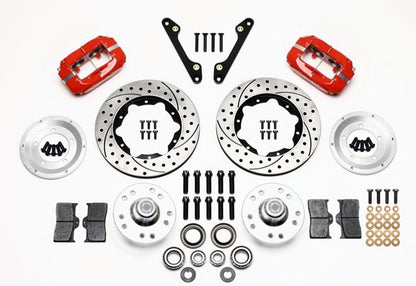

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 11.00" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

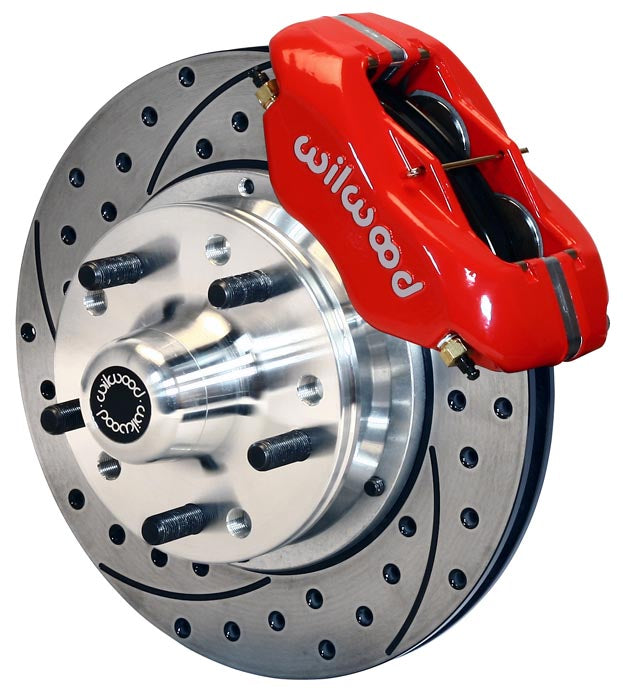

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Camaro/Firebird Front Kits, 1970-1978
