SPRINT KIT,GP320,LEFT FRONT,OUTBOARD

SPRINT KIT,GP320,LEFT FRONT,OUTBOARD

WIL 140-10798

$599.99
$599.99
View full details

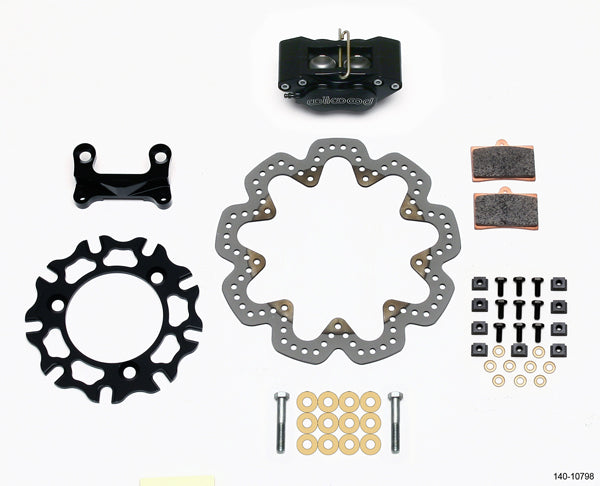

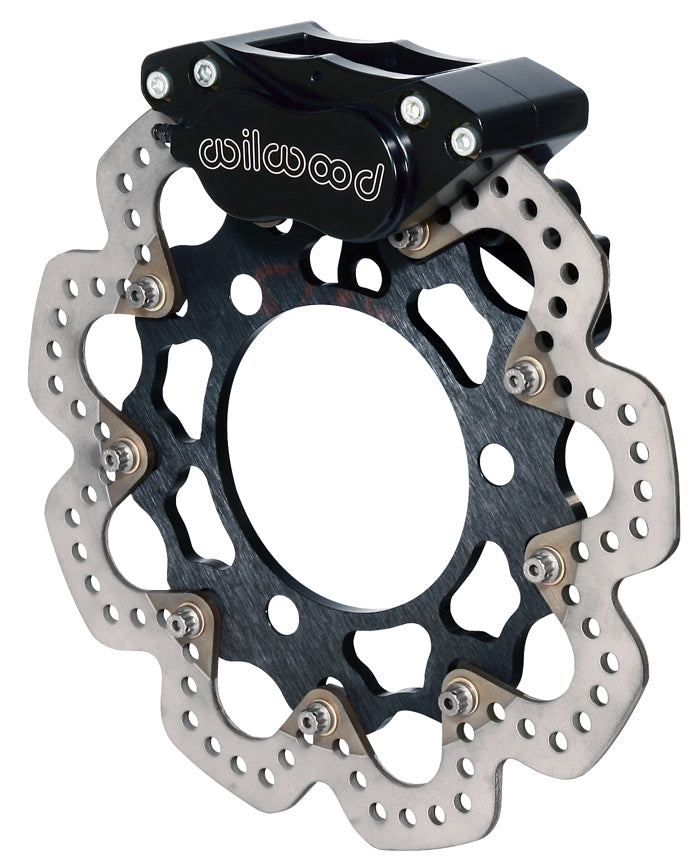

  • GP320 LEFT FRONT OUTBOARD SPRINT CAR KIT WITH 10.50" DIAMETER SCALLOPED ROTOR
  • WILWOOD'S GP320 SPRINT LEFT FRONT BRAKE KIT OFFERS INCREASED BRAKING TORQUE & THERMAL PERFORMANCE OF THE GP320 4 PISTON CALIPERS
  • A DEFINITIVE INCREASE IN BRAKING & DURABILITY OVER TRADITIONAL ALUMINUM OR STEEL ROTOR SYSTEMS
  • MOUNTS ARE INCLUDED FOR STANDARD SPRINT SPINDLE TO MATCH THE INCLUDED 10.50" X 0.19" POLYMETALLIC STAINLESS STEEL ROTOR
  • ALSO INCLUDES COMPOSITION METALLIC BRAKE PADS, LIGHTWEIGHT ALUMINUM DYNAMIC MOUNT 3-PIN ROTOR ADAPTER, & T-NUT HARDWARE KIT
  • DYNAMIC MOUNTING IS THE MOST EFFECTIVE METHOD OF ELIMINATING ALL TYPES OF THERMAL STRESS & DISTORTION IN STEEL ROTOR APPLICATIONS
  • THE ROTOR IS MACHINED WITH MOUNTING SLOTS THAT ARE USED WITH SPECIAL "T-NUTS" & BOLT KITS
  • THIS MOUNTING SYSTEM ALLOWS THE ROTOR TO EXPAND & CONTRACT INDEPENDENTLY OF THE HUB AS THE ROTOR GOES THROUGH TEMPERATURE CHANGES
  • THIS ELIMINATES ALL STRAIN OR BIND AT THE MOUNTING POINTS
  • THE ROTOR RUNS TRUER, LASTS LONGER, & ALL UNDO STRESS ON THE HUB IS ELIMINATED
  • DYNAMIC MOUNTING IS PREFERRED IN ALL APPLICATIONS WHERE TEMPORARY, BUT EXTREME TEMPERATURE SPIKES MAY CAUSE HIGH EXPANSION RATES IN THE STEEL

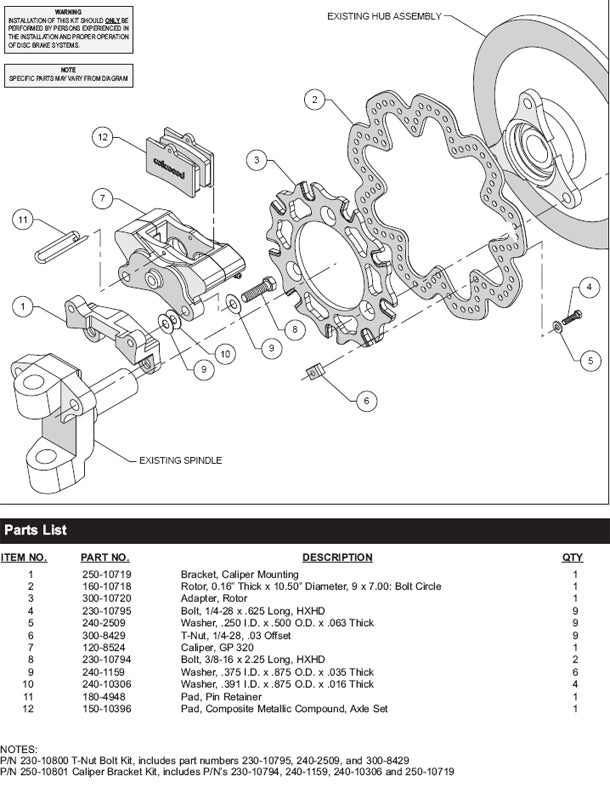

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View
