73-77 GM KIT,FRONT,DP6,12.19,DRILLED,RED

73-77 GM KIT,FRONT,DP6,12.19,DRILLED,RED

WIL 140-10738DR

$1,279.99
$1,279.99
View full details

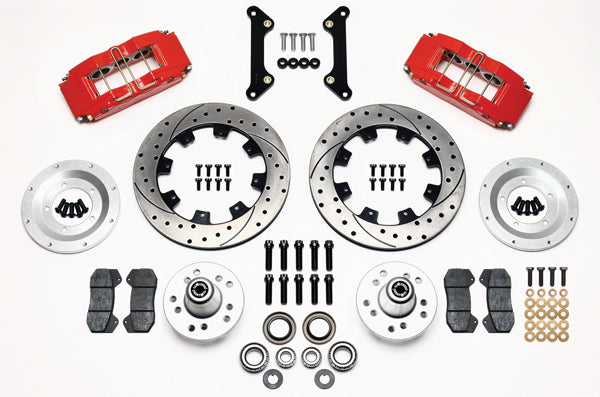

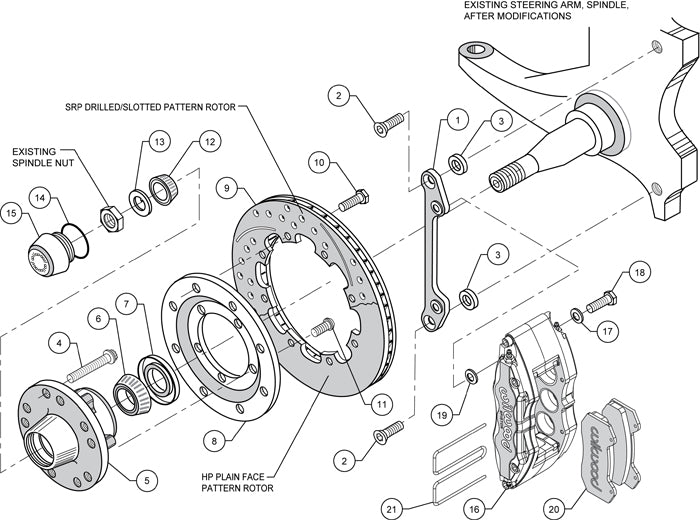

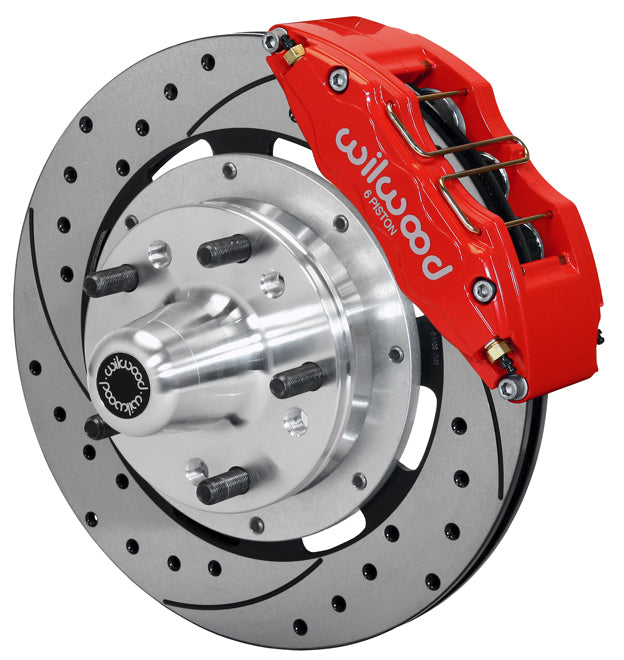

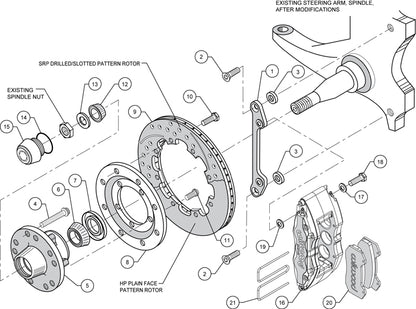

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE BIG BRAKE FRONT HUB & 12.19" DISC BRAKE KIT FOR:
    CHEVROLET:
    *1970-1978 CAMARO WITH DISC BRAKE SPINDLES
    *1973-1977 CHEVELLE WITH DISC BRAKE SPINDLES
    *1973-1977 EL CAMINO WITH DISC BRAKE SPINDLES
    *1973-1979 MALIBU WITH DISC BRAKE SPINDLES
    *1973-1977 MONTE CARLO WITH DISC BRAKE SPINDLES
    *1977-1978 IMPALA WITH OE 11" ROTOR SPINDLES
    *1977-1978 CONCOURS, ALL
    *1975-1978 NOVA WITH DISC BRAKE SPINDLES
    GMC:
    *1973-1977 SPRINT WITH DISC BRAKE SPINDLES
    BUICK:
    *1973-1977 CENTURY WITH DISC BRAKE SPINDLES
    *1973-1977 REGAL WITH DISC BRAKE SPINDLES
    *1975-1978 SKYLARK WITH DISC BRAKE SPINDLES
    *1975 APOLLO WITH DISC BRAKE SPINDLES
    *1977-1978 ESTATE WAGON WITH OE 11" ROTOR SPINDLES
    *1977-1978 LESABRE WITH OE 11" ROTOR SPINDLES
    CADILLAC:
    *1976 SEVILLE WITH DISC BRAKE SPINDLES
    OLDSMOBILE:
    *1973-1977 CUTLASS WITH DISC BRAKE SPINDLES
    *1973-1976 VISTA CRUISER WITH DISC BRAKE SPINDLES
    *1973 4-4-2 WITH DISC BRAKE SPINDLES
    *1975-1978 OMEGA WITH DISC BRAKE SPINDLES
    *1977-1978 88 WITH OE 11" ROTOR SPINDLES
    *1977-1978 CUSTOM CRUISER WITH OE 11" ROTOR SPINDLES
    PONTIAC:
    *1970-1978 FIREBIRD WITH DISC BRAKE SPINDLES
    *1973-1977 GRAND PRIX WITH DISC BRAKE SPINDLES
    *1973-1977 LEMANS WITH DISC BRAKE SPINDLES
    *1975-1977 VENTURA II WITH DISC BRAKE SPINDLES
    *1977-1978 PHOENIX WITH DISC BRAKE SPINDLES
    *1977-1978 BONNEVILLE WITH OE 11" ROTOR SPINDLES
    *1977-1978 CATALINA WITH OE 11" ROTOR SPINDLES

  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR THESE KITS WITH TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF 6 PISTON CALIPERS PROVIDES AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER 6 PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, & SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW & HIGH PERFORMANCE STREET/STRIP MACHINES
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS,
    *DYNAPRO 6 CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Camaro/Firebird Front Kits, 1970-1978
