74-80 PINTO KIT,FRONT,FDL,.810",12.19"

74-80 PINTO KIT,FRONT,FDL,.810",12.19"

WIL 140-10440B

$1,029.99
$1,029.99
View full details

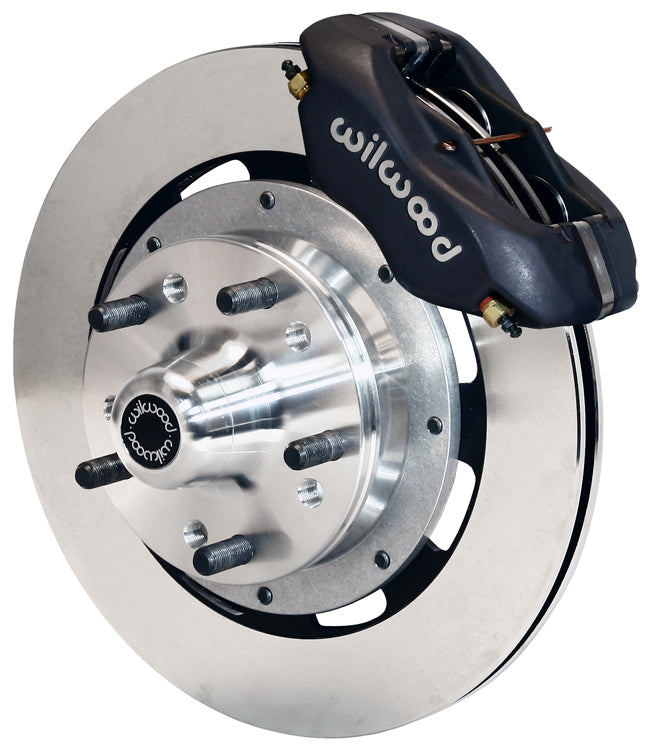

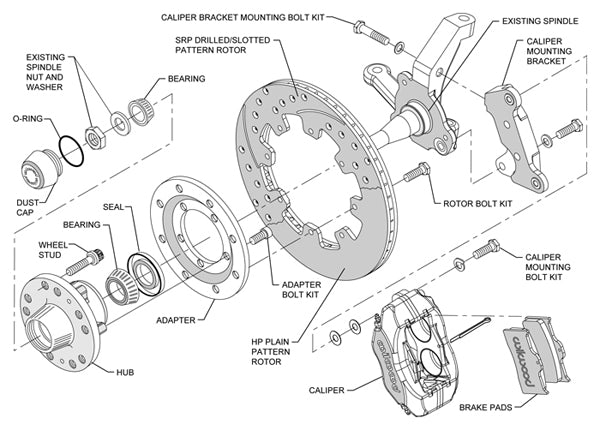

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD FORGED DYNALITE BIG BRAKE FRONT HUB KIT & 12.19" DISC BRAKE KIT FOR:
    FORD:
    *1974-1980 PINTO WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    *1974-1978 MUSTANG II WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)
    MERCURY:
    *1975-1980 BOBCAT WITH DISC BRAKE SPINDLES (FIVE LUG CONFIGURATION ONLY)

  • FEATURING BLACK CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS
  • FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, & HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO ALLOW THESE KITS TO BE USED IN ALMOST ANY HIGH-PERFORMANCE APPLICATION

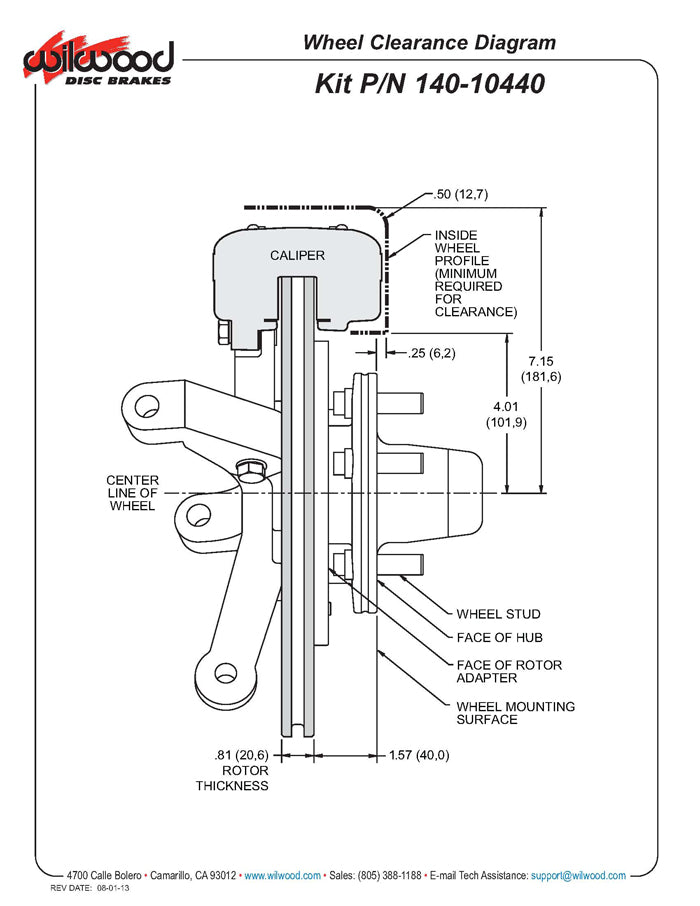

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

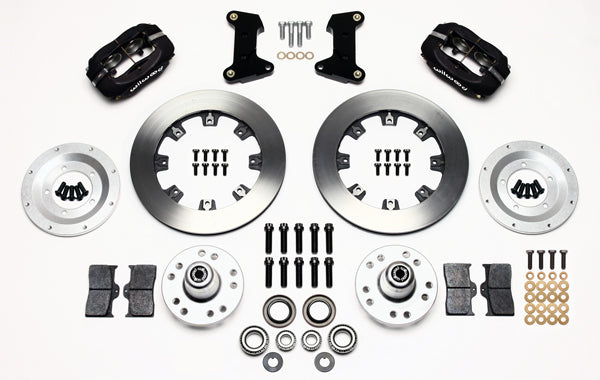

  • KIT INCLUDES:
    *.810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *HUBS, *BEARINGS, *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Ford Kits > Pinto/Mustang II Front Kits, 1971-1980
