88-04 HONDA/ACURA 2.71",REAR W/PB,12",DR

88-04 HONDA/ACURA 2.71",REAR W/PB,12",DR

WIL 140-10211D

$1,089.99
$1,089.99
View full details

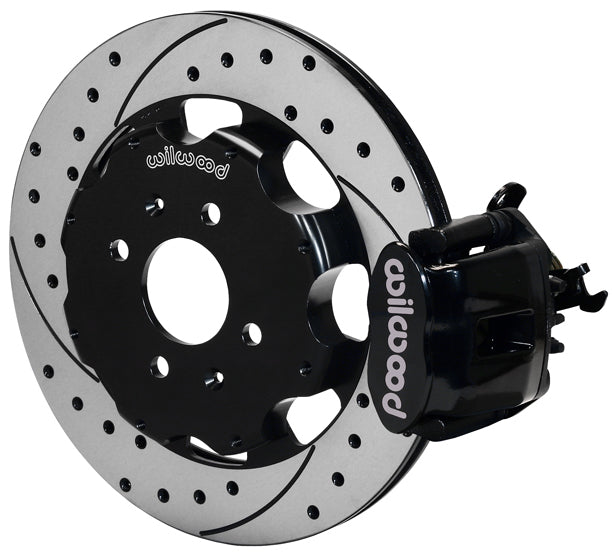

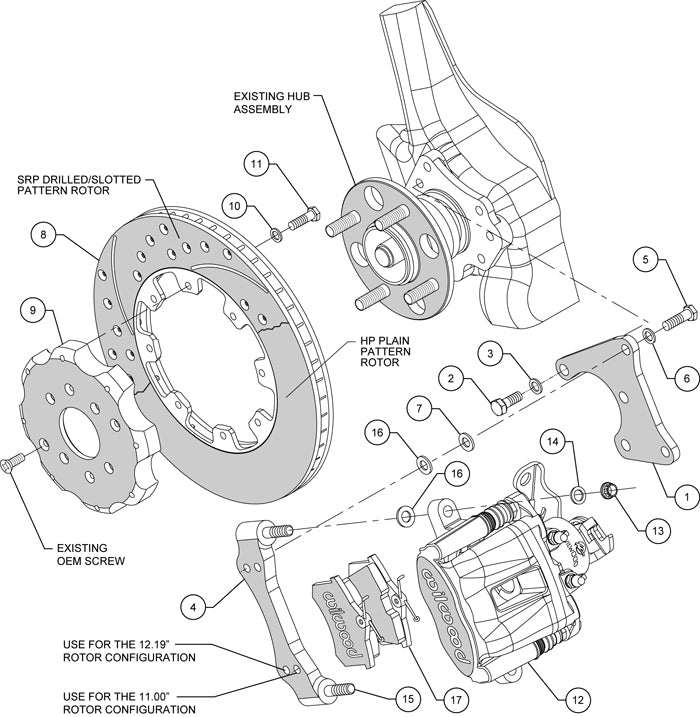

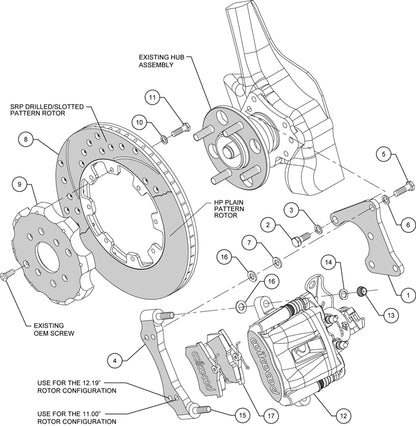

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD COMBINATION PARKING BRAKE (CPB) CALIPER REAR BRAKE KIT FOR:
    HONDA:
    CIVIC COUPE:
    -1993-1995 DX WITH MANUAL TRANSMISSION*
    -1993 EX WITH MANUAL TRANSMISSION*
    -1994-1995 EX WITH MANUAL TRANSMISSION AND WITHOUT ABS*
    CIVIC HATCHBACK:
    -1988-1991 BASE*
    -1989-1991 DX*
    -1989-1991 SI*
    -1992-1994 ALL WITH MANUAL TRANSMISSION, EXCEPT SI*
    -1995 ALL EXCEPT SI*
    CIVIC SEDAN:
    -1988 ALL*
    -1989-1991 DX*
    -1992-1995 DX WITH MANUAL TRANSMISSION*
    -1990-1991 EX*
    -1989-1991 LX*
    -1992-1995 LX WITH MANUAL TRANSMISSION*
    CRX:
    -1988-1991 DX*
    -1988-1991 HF*
    -1988-1989 SI*
    DEL SOL:
    -1993-1997 WITH REAR DRUMS*
  • FEATURING DRILLED ROTORS AND BLACK CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • COMBINATION HYDRO-MECHANICAL PARKING BRAKE CALIPERS USE HYDRAULIC PRESSURE FROM THE MASTER CYLINDER FOR STOPPING POWER, AND AN INTERNAL MECHANICAL LOCK WITHIN THE CALIPER FOR A PARKING BRAKE
  • CPB KITS ARE BUILT FOR APPLICATIONS THAT ARE NOT WELL SUITED FOR INTERNAL SHOE STYLE PARKING BRAKES
  • THE CALIPERS ARE COUPLED WITH OVERSIZED TWO-PIECE ROTOR ASSEMBLIES WITH ALUMINUM HATS AND HIGH FRICTION BP-10 COMPOUND PADS
  • CPB KITS PROVIDE THE CORRECT BALANCED BRAKE PERFORMANCE AND MATCHING STYLE TO COMPLIMENT FRONT BIG BRAKE UPGRADE KITS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

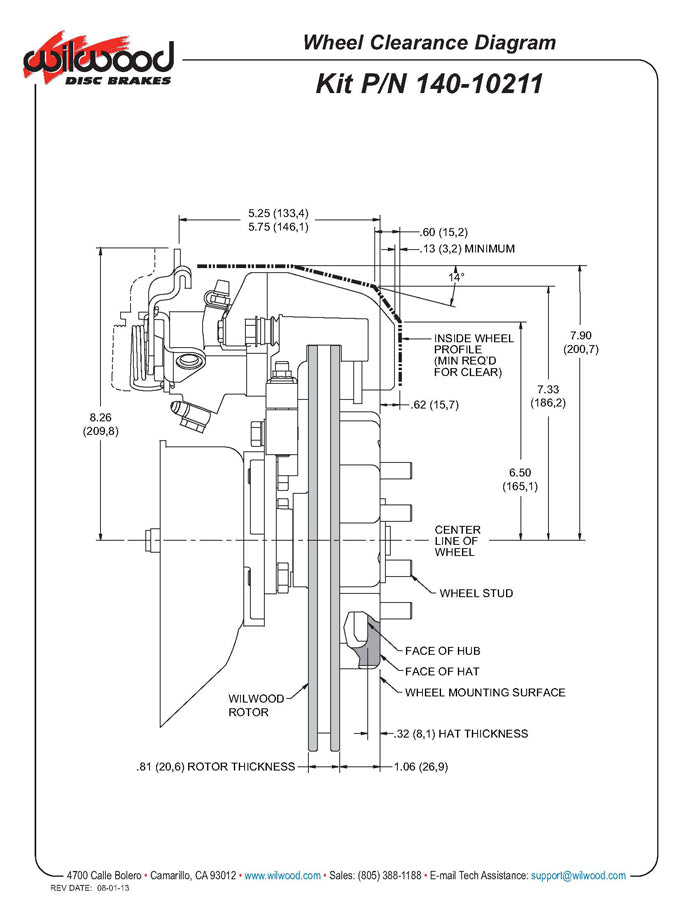

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS IN MOST APPLICATIONS. THEY WILL FIT WITH SOME 16" WHEELS. ON PAGE 3 OF THE INSTRUCTION BOOKLET (LINKED BELOW), THERE IS A DIAGRAM WITH THE MOUNTED DIMENSIONS OF THIS KIT. IF YOU HAVE 16" WHEELS, YOU CAN COMPARE THOSE DIMENSIONS TO THE REAR OF YOUR WHEELS TO SEE IF THEY WILL FIT.

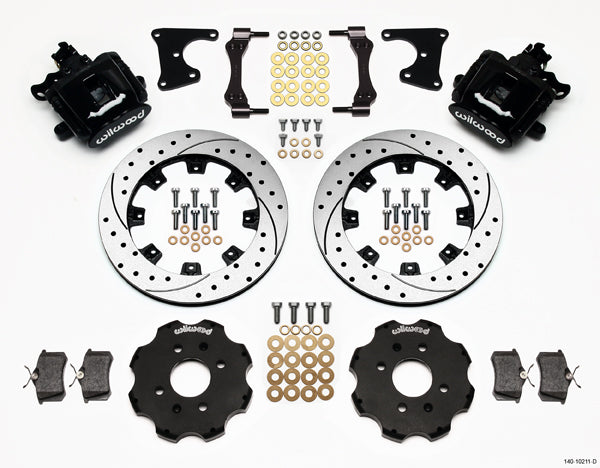

  • KIT INCLUDES:
    *DRILLED, .810" THICK X 12.19" O.D. ROTORS,
    *CPB CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Honda Kits > Civic Rear Kits
