88-04 HONDA/ACURA 2.46,REAR PB,11,RED,DR

88-04 HONDA/ACURA 2.46,REAR PB,11,RED,DR

WIL 140-10208DR

$1,029.99
$1,029.99
View full details

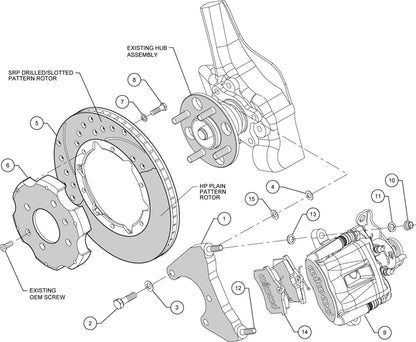

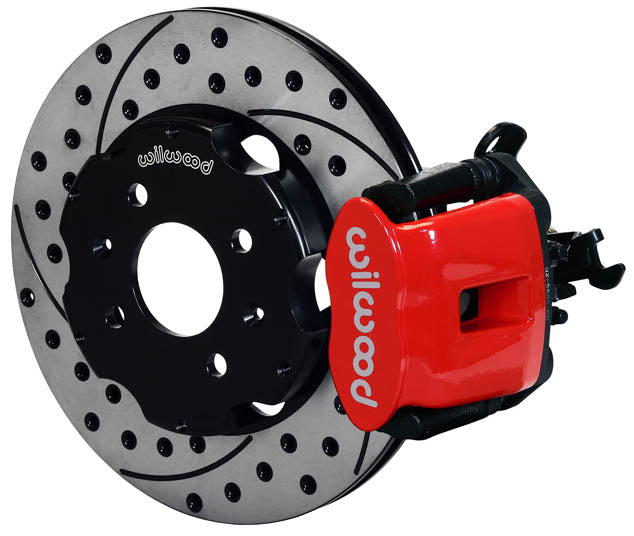

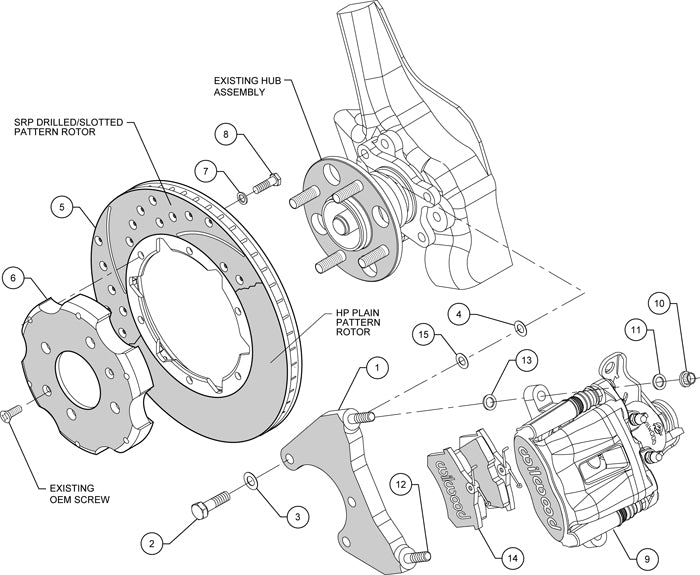

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD COMBINATION PARKING BRAKE (CPB) CALIPER REAR BRAKE KIT FOR:
    HONDA:
    CIVIC COUPE:
    -1993 CIVIC COUPE EX WITH AUTOMATIC*
    -1993-1995 DX WITH AUTOMATIC*
    -1994-1995 EX WITH AUTOMATIC WITHOUT ABS*
    -1996-2000 EX, ALL*
    -1996-2000 DX, ALL*
    -1996-2000 HX, ALL*
    CIVIC HATCHBACK:
    -1992-1994, ALL WITH AUTOMATIC, EXCEPT SI*
    -1996-2000, ALL*
    CIVIC SEDAN:
    -1992-1995 LX WITH AUTOMATIC*
    -1992-1993 DX WITH AUTOMATIC*
    -1994-1995 DX WITH AUTOMATIC*
    -1996 LX WITH ABS*
    -1996 EX WITH ABS*
    -1997-2000 EX*
    -1998-1999 GX*
    -1996-1998 SEDAN WITHOUT ABS*
    -1999-2000 SEDAN, ALL*
  • FEATURING DRILLED & SLOTTED ROTORS AND RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • COMBINATION HYDRO-MECHANICAL PARKING BRAKE CALIPERS USE HYDRAULIC PRESSURE FROM THE MASTER CYLINDER FOR STOPPING POWER, AND AN INTERNAL MECHANICAL LOCK WITHIN THE CALIPER FOR A PARKING BRAKE
  • CPB KITS ARE BUILT FOR APPLICATIONS THAT ARE NOT WELL SUITED FOR INTERNAL SHOE STYLE PARKING BRAKES
  • THE CALIPERS ARE COUPLED WITH OVERSIZED TWO-PIECE ROTOR ASSEMBLIES WITH ALUMINUM HATS AND HIGH FRICTION BP-10 COMPOUND PADS
  • CPB KITS PROVIDE THE CORRECT BALANCED BRAKE PERFORMANCE AND MATCHING STYLE TO COMPLIMENT FRONT BIG BRAKE UPGRADE KITS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

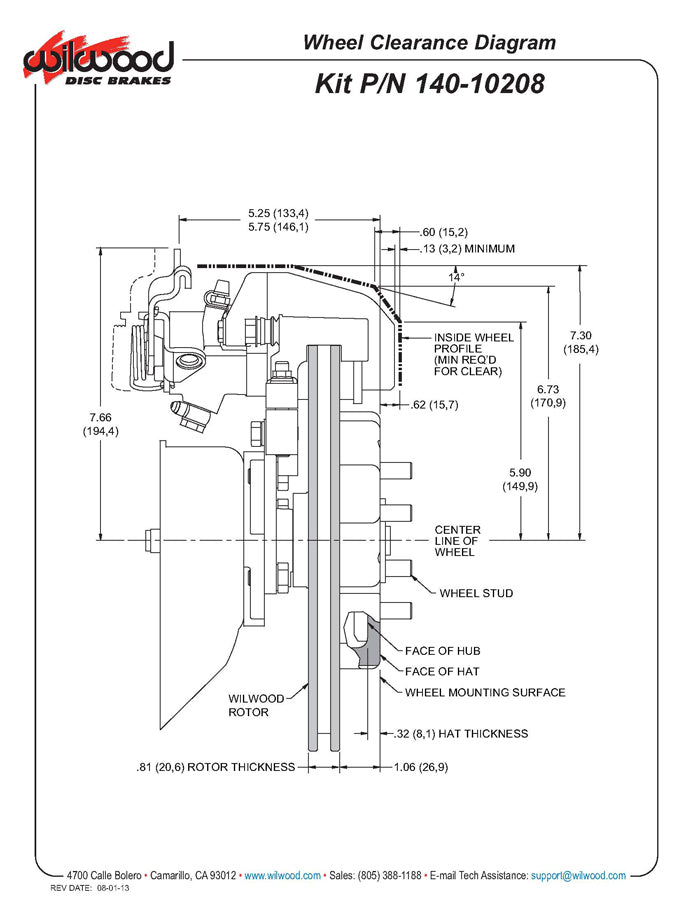

  • THESE BIG BRAKE KITS REQUIRE AT 15" DIAMETER WHEELS

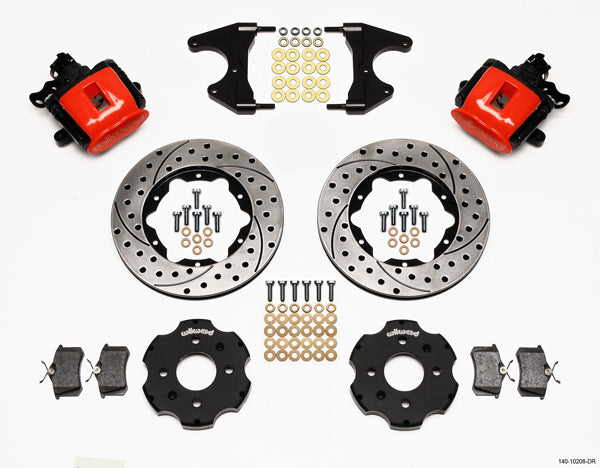

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK X 11.00" O.D. ROTORS,
    *CPB CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 39 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
