KART CALIPER,MASTER CYLINDER & LINE,.500
KART CALIPER,MASTER CYLINDER & LINE,.500
SKU:WIL 120-5499-MC
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Couldn't load pickup availability

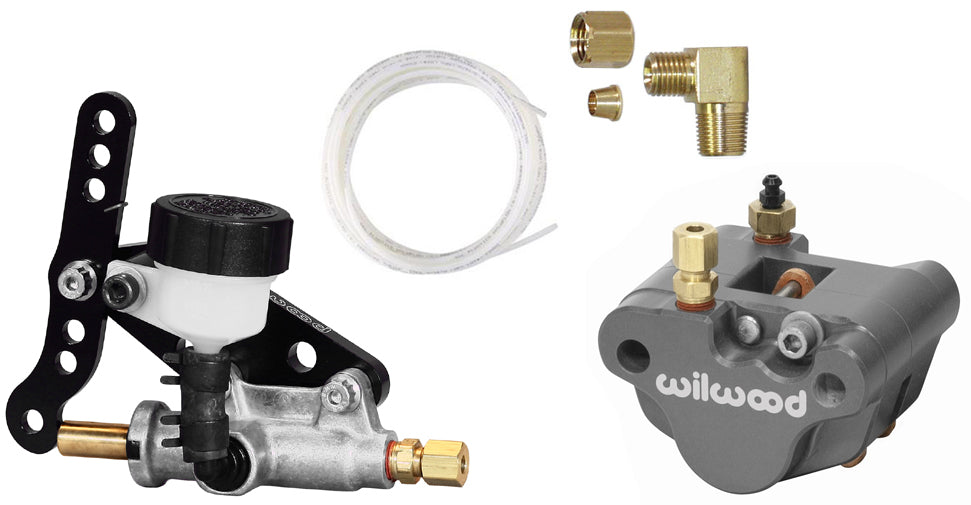

-FITS 0.500" THICK ROTORS
-FEATURES TWO 1.00" PISTONS
-WEIGHS ONLY 1.2 LBS.
-COMES WITH HIGH FRICTION BRAKE PADS
-COMMONLY USED ON GO KARTS, JR. DRAGSTERS, AND OTHER SMALL APPLICATIONS
-WILWOODS KART /JR. DRAGSTER CALIPER HAS BEEN DESIGNED SPECIFICALLY FOR RACING. A UNIQUE SELF RETRACTING AND ADJUSTING PISTON SYSTEM HAS BEEN INCORPORATED INTO THIS CALIPER WHICH ENABLES THE PISTON TO RETRACT AS THE BRAKE LINE PRESSURE IS REDUCED. THE CALIPER CAN BE MOUNTED ON EITHER SIDE OF THE VEHICLE. WEIGHING A MEAGER 1.2 POUNDS, THE CALIPERS LIGHTWEIGHT BILLET DESIGN INCLUDES HIGH PERFORMANCE, HIGH FRICTION BRAKE PADS. ADDITIONAL FEATURES INCLUDE DEEP CUP STAINLESS STEEL PISTON FOR REDUCED HEAT TRANSFER, COTTER PIN, PAD RETAINER, INTERNAL FLUID PASSAGE AND BLUE ANODIZED FINISH. A SPECIFICALLY DESIGNED MASTER CYLINDER IS ALSO AVAILABLE FOR USE WITH THIS CALIPER
-1/2" BORE
-WEIGHS ONLY .55 LBS.
-THIS SUPER LIGHTWEIGHT ALUMINUM MASTER CYLINDER DESIGNED SPECIFICALLY FOR KART & JR. DRAGSTER RACING APPLICATIONS INCORPORATES AN ADJUSTABLE LEVER RATIO WITH A REMOTE MOUNT CLEAR FLUID RESERVOIR FOR EASY MONITORING
-THE ASSEMBLY COMES READY TO INSTALL AND INCLUDES BILLET BRACKET, LOCK-WIRED DRILLED HARDWARD, & FLUID LINE FITTING
-3/16" NYLON TUBING
-5 SHOULD EQUIP MOST KARTS WITH SOME LEFT-OVER THAT CAN BE EASILY CUT OFF
-DEPENDING ON HOW EVERYTHING IS MOUNTED, THE LINE MIGHT RUN TO THE CALIPER AT A BAD ANGLE FOR THE STRAIGHT FITTING. THIS 90 DEGREE FITTING INSTALLS IN PLACE OF THE STRAIGHT FITTING IN THE CALIPER TO ALLOW SMOOTHER, NEATER PLUMBING WITH LESS CHANCE OF KINKING
-90 DEGREE COMPRESSION HOSE END
-1/8" NPT FEMALE TO -3 NYLON HOSE
