ZONE 3" COIL SPRING LIFT KIT,84-01 JEEP XJ W/DANA35 REAR AXLE

ZONE 3" COIL SPRING LIFT KIT,84-01 JEEP XJ W/DANA35 REAR AXLE

STU ZONJ7

$154.95
$154.95
View full details

Brand New Zone Offroad 3" Coil Spring Lift Kit (Part #ZONJ7).

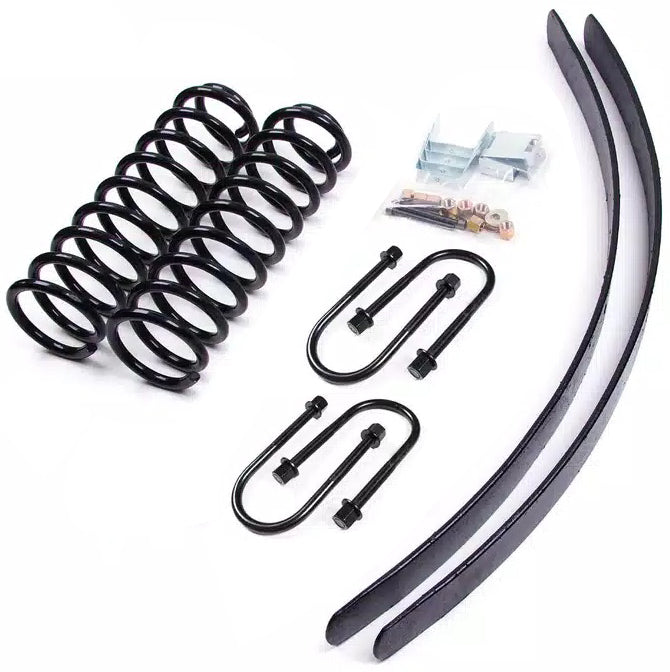

You’ve got the Jeep you want, now get performance you want. This easy-to-install 3" Combo Lift Kit comes with front coil springs, 4 shocks and 2 long Add-A-Leaf's for a smooth ride in your 4WD 1984 - 2001 Jeep Cherokee (XJ) model.

Fits:

  • Jeep:
    • 1984-2001 Cherokee XJ 4WD Gas with Dana 35 Axle

Features:

  • Front 3" coil springs lift ride height, offer great ride quality and improve articulation
  • Rear long add-a-leafs, new center pins, clamps and replacement u-bolts are supplied to freshen up the rear while leveling the stance

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 2.5"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Add-A-Leaf
  • Lift Type: Lift Kit
  • Wheel Size: 15 x 8
  • Back Spacing: 4"
  • Max Tire Size: 30 x 9.5
  • Wheel Size 2: 15 x 8
  • Back Spacing 2: 4"
  • Max Tire Size 2: 31 x 10.5
  • Wheel Size 3: 16 x 8
  • Back Spacing 3: 4"
  • Max Tire Size 3: 31 x 10.5
  • Cutting Required: No
  • Accommodates Factory Wheels: Yes
  • Welding Required: No

Notes:

  • Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You’ll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.
  • Driveline: 1" transfer case drop kit recommended when using stock driveline to maintain the factory driveline angle.

You can view and download the complete assembly instruction booklet here.
