ZONE 2007-2011 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT
ZONE 2007-2011 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT
SKU:STU ZONJ13
Regular price
$307.95
Regular price
Sale price
$307.95
Unit price
per
Couldn't load pickup availability

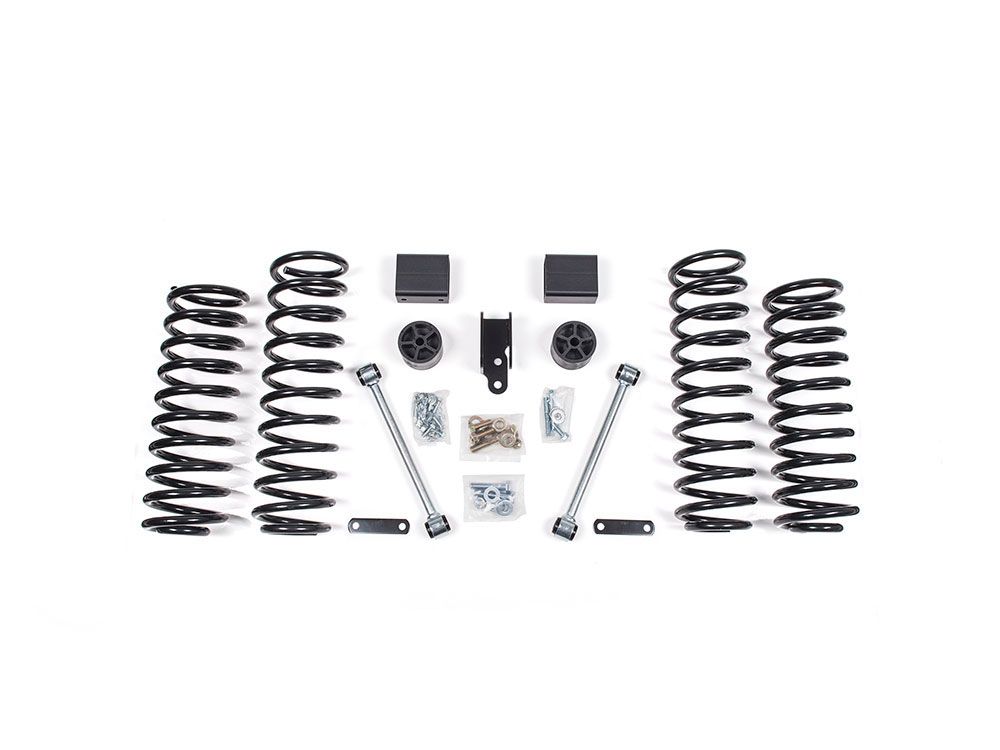

Brand New Zone Offroad 3" Coil Spring Lift Kit (Part #ZONJ13).
Get the look and the performance you want for your Jeep. This 3" Lift Kit for your 4WD 2007 - 2011 Jeep Wrangler (JK) will clear 35" tires and includes heavy-duty coil spacers that offer a dramatic improvement in both ground clearance and wheel travel.
Fits:
- Jeep:
- 2007-2011 Wrangler JK 4 Door 4WD
Features:
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
- Rear track bar bracket correctly positions rear axle under vehicle.
Specs:
- Front Lift Height: 3"
- Rear Lift Height: 3"
- Material: Steel
- Front Lift Method: Coil Springs
- Rear Lift Method: Coil Springs
- Lift Type: Lift Kit
- Wheel Size: 16 x 8
- Back Spacing: 4.5"
- Max Tire Size: 35 x 12.5
- Wheel Size 2: 17 x 9
- Back Spacing 2: 4.5"
- Max Tire Size 2: 35 x 12.5
- Wheel Size 3: 18 x 9
- Back Spacing 3: 4.5"
- Max Tire Size 3: 35 x 12.5
- Is Adjustable: No
- Finish: Powdercoat
- Cutting Required: No
- Accommodates Factory Wheels: No
- Welding Required: No
Notes:
- Stock Control Arms? Alignment cam locks will add 2 degrees of caster when used on stock length control arms, which will better align your wheels.
- Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
- Will work on Rubicon models.
You can view and download the complete assembly instruction booklet here.
