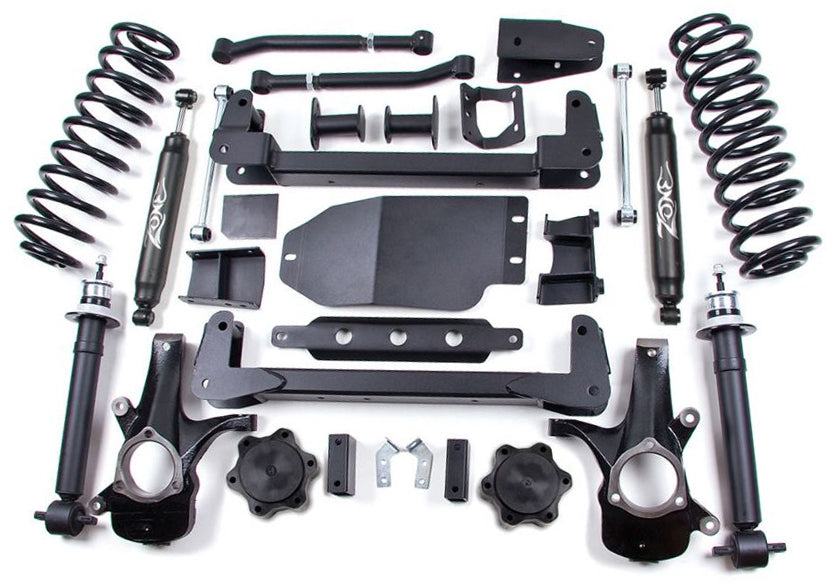

ZONE 2007-2014 TAHOE,YUKON 4WD 6.5" STRUT & DROP CROSSMEMBER LIFT,NITRO SHOCKS

BRAND NEW ZONE OFFROAD 6.5" SUSPENSION LIFT KIT WITH NITRO SHOCKS (PART #ZONC6N).

IF YOU REALLY WANT TO TAKE YOUR SUV TO NEW PLACES THIS 6.5" LIFT KIT IS THE WAY TO GO. YOULL HAVE A HEAD-TURNING SUV THAT IS OFF-ROAD WORTHY, BUT YOU CAN STILL USE AS A DAILY DRIVER. FITS 4WD 2007 - 2014 CHEVY/GM 1500 SUVS. STEP UP NOW, YOULL BE GLAD YOU DID.

FITS:

• CHEVROLET:
• 2007-2013 AVALANCHE 4WD
• 2007-2014 SUBURBAN 1500 4WD
• 2007-2014 TAHOE 4WD
• GMC:
• 2007-2014 YUKON 4WD
• 2007-2014 YUKON XL 1500 4WD

FEATURES:

• HEAVY-DUTY DIFFERENTIAL SKID SLATE IMPROVES OFFROAD PROTECTION.
• HIGH-STRENGTH, 1/4" STEEL CONSTRUCTION CROSSMEMBERS CORRECT LOWER CONTROL ARM GEOMETRY.
• HIGH-PRESSURE, EXTENDED LENGTH, REPLACEMENT FRONT STRUTS IMPROVE PERFORMANCE ON AND OFFROAD.
• HIGH-STRENGTH, CNC MACHINED, REPLACEMENT STEERING KNUCKLES IMPROVE STRENGTH WHILE CORRECTING STEERING ANGLES.
• MULTI-POINT DIFFERENTIAL RELOCATION BRACKETS SECURE FRONT DIFFERENTIAL FOR IMPROVED CV OPERATING ANGLES.

SPECS:

• FRONT LIFT HEIGHT: 6.5"
• REAR LIFT HEIGHT: 5.5"
• FRONT LIFT METHOD: STRUT SPACER & CROSS-MEMBER
• REAR LIFT METHOD: COIL SPRINGS
• WHEEL SIZE 1: 17 X 9
• BACK SPACING 1: 5.75"
• MAX TIRE SIZE 1: 35 X 12.5
• WHEEL SIZE 2: 18 X 9
• BACK SPACING: 2: 5"
• MAX TIRE SIZE 2: 34 X 12.5
• WHEEL SIZE 3: 20 X 9
• BACK SPACING 3: 5.75"
• MAX TIRE SIZE 3: 35 X 12.5
• IS ADJUSTABLE: NO
• FINISH: POWDERCOAT
• CUTTING REQUIRED: NO
• WELDING REQUIRED: YES

NOTES:

• DRIVELINE NOTICE: MINOR ENGAGEMENT OF THE STABILITRAK SYSTEM MAY OCCUR DURING CERTAIN MANEUVERS.
• FITMENT: ALL WHEEL DRIVE MODELS MAY REQUIRE FRONT CV DRIVESHAFT. SEE INSTALLATION INSTRUCTIONS FOR MORE INFORMATION.
• FITMENT: WILL NOT FIT 2007 "CLASSIC" MODELS. IF YOU HAVE A 2007 CLASSIC, SEE KITS FOR COMPARABLE 1999-06 MODELS.
• FITMENT: WILL NOT FIT 2009-11 TWO-MODE HYBRID MODELS WITH ELECTRONIC POWER STEERING (EPS).
• FITMENT: WILL NOT FIT VEHICLES EQUIPPED WITH AUTO-RIDE.
• USE A 1/4" WHEEL SPACER TO ACCOMMODATE FACTORY 20" WHEELS; REFER TO THE PROVIDED "MAX TIRE SIZE" FOR 20" WHEELS FOR TIRE SIZING.
• WHEELS / TIRES: FOR OPTIMAL TIRE CLEARANCE AND REDUCE THE NEED FOR TRIMMING, USE 20X9 WHEELS WITH 5.5-5.75" BACKSPACING.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
