ZONE 2019-2023 CHEVY/GMC 1500 4WD 6" SUSPENSION SYSTEM,NITRO

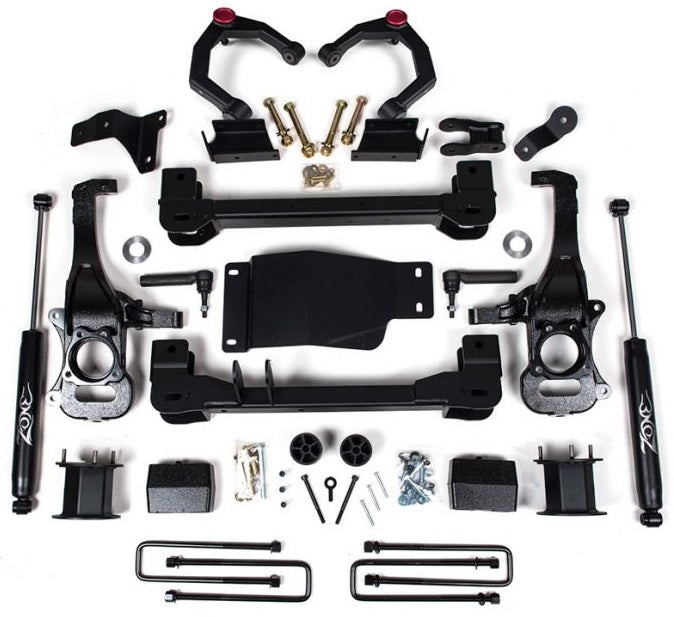

BRAND NEW ZONE OFFROAD 6" SUSPENSION LIFT KIT WITH NITRO SHOCKS (PART #ZONC68N).

TAKE YOUR SILVERADO/SIERRA 1500 TO NEW HEIGHTS WITH THIS 6" LIFT KIT FROM ZONE OFFROAD. KITS INCLUDE EVERYTHING NEEDED FROM HIGH STRENGTH CROSSMEMBERS AND STEERING KNUCKLES TO STRUT SPACERS, ADVENTURE SERIES UPPER CONTROL ARMS AND DIFFERENTIAL RELOCATION BRACKETS TO MAINTAIN DRIVELINE ANGLES. GET THE LOOK, PERFORMANCE, AND CAPABILITY YOUR TRUCK DESERVES WITH CLEARANCE FOR UP TO 35" TIRES.

FITS:

• CHEVROLET:
• 2019-2023 SILVERADO 1500 4WD
• GMC:
• 2019-2023 SIERRA 1500 4WD

FEATURES:

• HIGH STRENGTH CROSSMEMBERS TO CORRECT LOWER CONTROL ARM POSITIONING
• DUCTILE IRON STEERING KNUCKLES AND NEW TIE ROD ENDS TO CORRECT STEERING GEOMETRY AND MAINTAIN ESC SYSTEM COMPATIBILITY
• TOP MOUNTED STRUT SPACERS TO PROVIDE LIFT AND INSTALL EASILY
• DIFFERENTIAL SKID PLATE FOR ADDITIONAL OFFROAD PROTECTION
• ADVENTURE SERIES UPPER CONTROL ARMS FOR IMPROVED STRENGTH AND DURABILITY REAR LIFT BLOCKS AND U-BOLTS TO LIFT AND LEVEL THE STANCE
• SWAY BAR, BRAKE LINE AND BUMP STOP RELOCATION BRACKETS TO CORRECT OPERATING ANGLES

SPECS:

• FRONT LIFT HEIGHT: 6"
• REAR LIFT HEIGHT: 5"
• FRONT LIFT METHOD: KNUCKLE & DROP CROSS-MEMBER
• REAR LIFT METHOD: CAST BLOCKS
• LIFT TYPE: LIFT KIT
• IS ADJUSTABLE: NO
• FINISH: POWDERCOAT
• CUTTING REQUIRED: NO
• WELDING REQUIRED: YES

NOTES:

• 17" WHEELS WITH 4.5" BACKSPACING SHOULD BE TEST FIT PRIOR TO MOUNTING THE TIRE TO ENSURE PROPER CLEARANCE TO THE STEERING KNUCKLE/TIE ROD.
• ALL AFTERMARKET WHEELS SHOULD BE TEST FIT PRIOR TO MOUNTING THE TIRE TO ENSURE PROPER CLEARANCE TO THE BRAKE CALIPER.
• FITS GAS AND DIESEL MODELS.
• OPTIONAL FRONT SKID PLATE WILL NOT WORK WITH 2.7L TURBO ENGINES.
• REQUIRES FRAME BRACKET MODIFICATION.
• STOCK 17" AND 18" WHEELS CANNOT BE REINSTALLED DUE TO TIE ROD END INTERFERENCE, STOCK 20" WHEELS CAN BE REINSTALLED.
• WILL NOT FIT ADAPTIVE RIDE CONTROL (ARC) EQUIPPED MODELS.
• WILL NOT WORK WITH TRAIL BOSS OR AT4 MODELS.
• KIT WILL NOT WORK WITH 2019-2020 1500 CLASSIC MODELS.
• THIS KIT HAS NOT BEEN TEST FITTED ON SILVERADO ZR2 OR SIERRA AT4X MODELS AT THIS TIME.
• WILL NOT FIT MODELS WITH A SINGLE LEAF SPRING (MONOLEAF) REAR SUSPENSION.
• 2022 MODELS: THIS SYSTEM HAS NOT BEEN TESTED ON MODELS EQUIPPED WITH SUPER CRUISE.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
