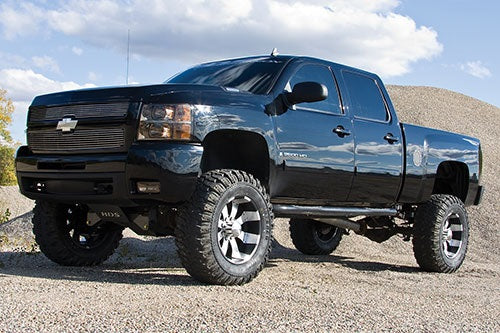

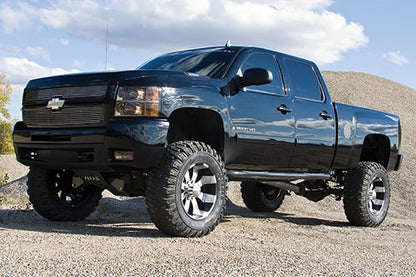

BDS 2001-2010 GM 2500/3500 4WD 7" LIFT KIT,FOX 2.0 SHOCKS

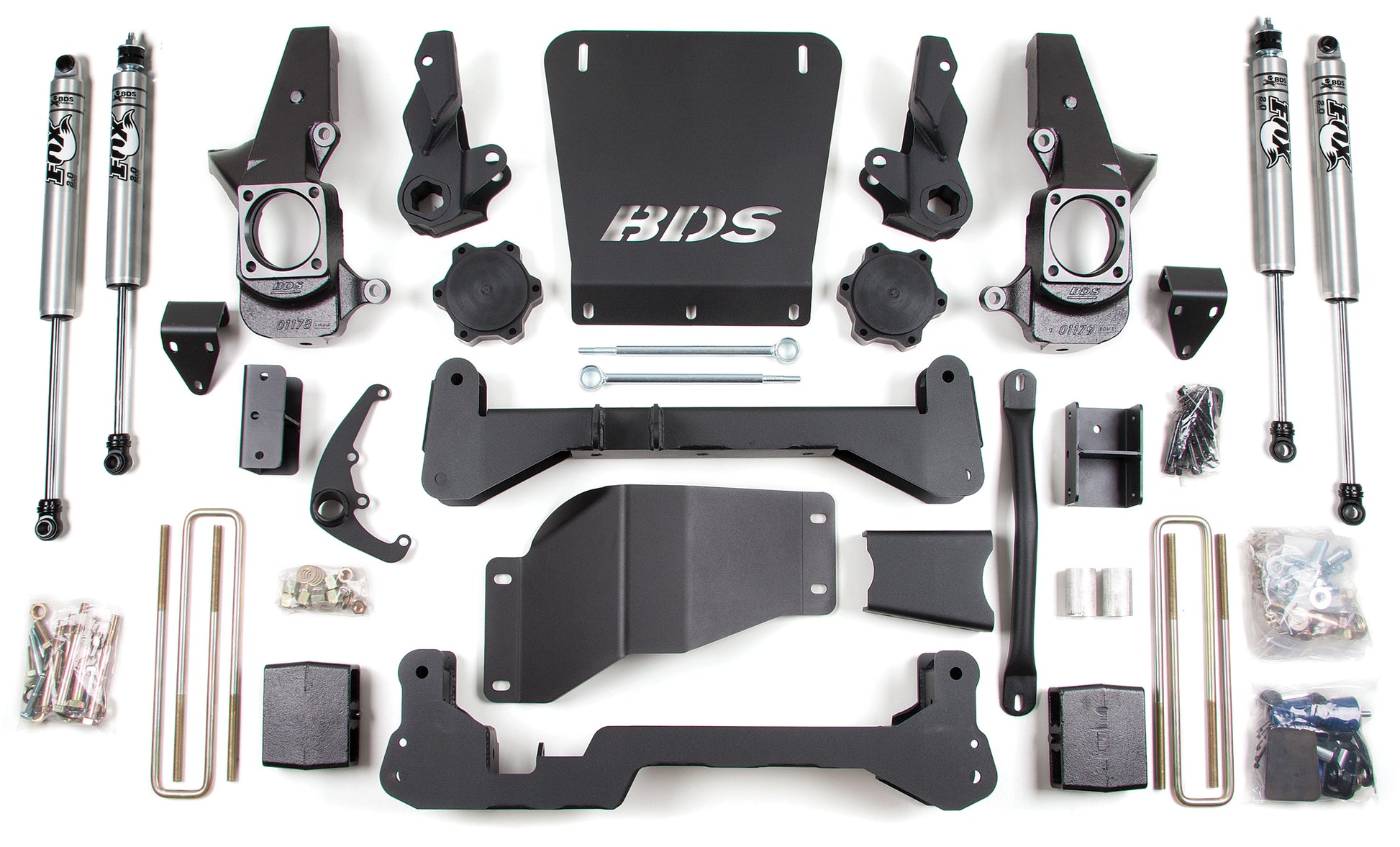

BRAND NEW BDS SUSPENSION 7" LIFT KIT WITH FOX 2.0 SERIES SHOCKS (PART #BDS189FS).

THIS UNIQUE HIGH CLEARANCE SUSPENSION LIFT KIT UTILIZES HIGH ARCHED CROSSMEMBERS THAT BLEND PERFECTLY WITH THE ANGLE OF THE FACTORY INSTALLED LOWER CONTROL ARMS FOR A COMPLETELY INTEGRATED LOOK WHILE LIFTING YOUR VEHICLE A FULL 7" DRAMATICALLY INCREASING GROUND CLEARANCE AT THE FRONT CROSSMEMBERS AND IMPROVING OPERATING GEOMETRY. TORSION BARS ARE MOUNTED DIRECTLY TO THE TOP OF THE LOWER A-ARM ELIMINATING THE NEED TO DROP THE TORSION BAR CROSSMEMBER.

A FRONT SKID PLATE AND DIFFERENTIAL SKID PLATE COME STANDARD, TO LOCK EVERYTHING TOGETHER, CREATING A NEARLY INDESTRUCTIBLE SUB FRAME FOR EXTREME OFF ROAD PROTECTION. THE REAR IS LIFTED WITH A FLAT 5" BLOCK FOR EASY INSTALLATION.

IMPROVE RIDE QUALITY AND CAPABILITY WITH THE FOX 2.0 PERFORMANCE SERIES IFP SHOCKS. SPECIALLY DESIGNED FOR BDS LIFT SYSTEMS, THESE FOX 2.0 ALUMINUM BODY SHOCKS OFFER IMPROVED COOLING CAPACITY AND CORROSION PROTECTION. THESE SHOCKS USE RACE-PROVEN VEHICLE SPECIFIC VALVING ALONG WITH AN INTERNAL FLOATING PISTON (IFP) MONOTUBE DESIGN TO SEPARATE SHOCK OIL FROM HIGH PRESSURE NITROGEN TO ELIMINATE AERATION AND MAXIMIZE PERFORMANCE ON/OFF-ROAD.

FITS:

• CHEVROLET:
• 2001-2010 SILVERADO 2500HD 4WD
• 2001-2010 SILVERADO 3500/3500HD 4WD
• GMC:
• 2001-2010 SIERRA 2500HD 4WD
• 2001-2010 SIERRA 3500/3500HD 4WD

NOTES:

• TORSION BAR TOOL REQUIRED TO LOAD/UNLOAD THE TORSION BARS.
• SOME WELDING REQUIRED.
• REQUIRES FRAME BRACKET MODIFICATION AND DIFFERENTIAL MOUNT MODIFICATION.
• TRACTION BARS WILL NOT FIT STANDARD CAB/SHORT BOX MODELS AND ARE DESIGNED TO WORK ON VEHICLES WITH 4" TO 8" OF LIFT. WILL NOT WORK ON LONG BED MODELS.
• 20" WHEELS WITH 5" TO 5-3/4" BACKSPACING RECOMMENDED TO REDUCE TRIMMING.
• GAS MODELS REQUIRE EXHAUST MODIFICATION.
• NARROW TRACK KNUCKLE WILL SLIGHTLY INCREASE TURNING RADIUS.
• FOR TAIL HIGH STANCE USE #119157 ADD-A-LEAF WITH THE BLOCK KIT OR #069207 WITH LEAF SPRING KIT.
• DUALLY APPLICATIONS WILL REQUIRE CUSTOM U-BOLTS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
