BDS 2017-2019 F250/F350 4WD DIESEL 2.5" RADIUS ARM LIFT,NX2 SHOCKS

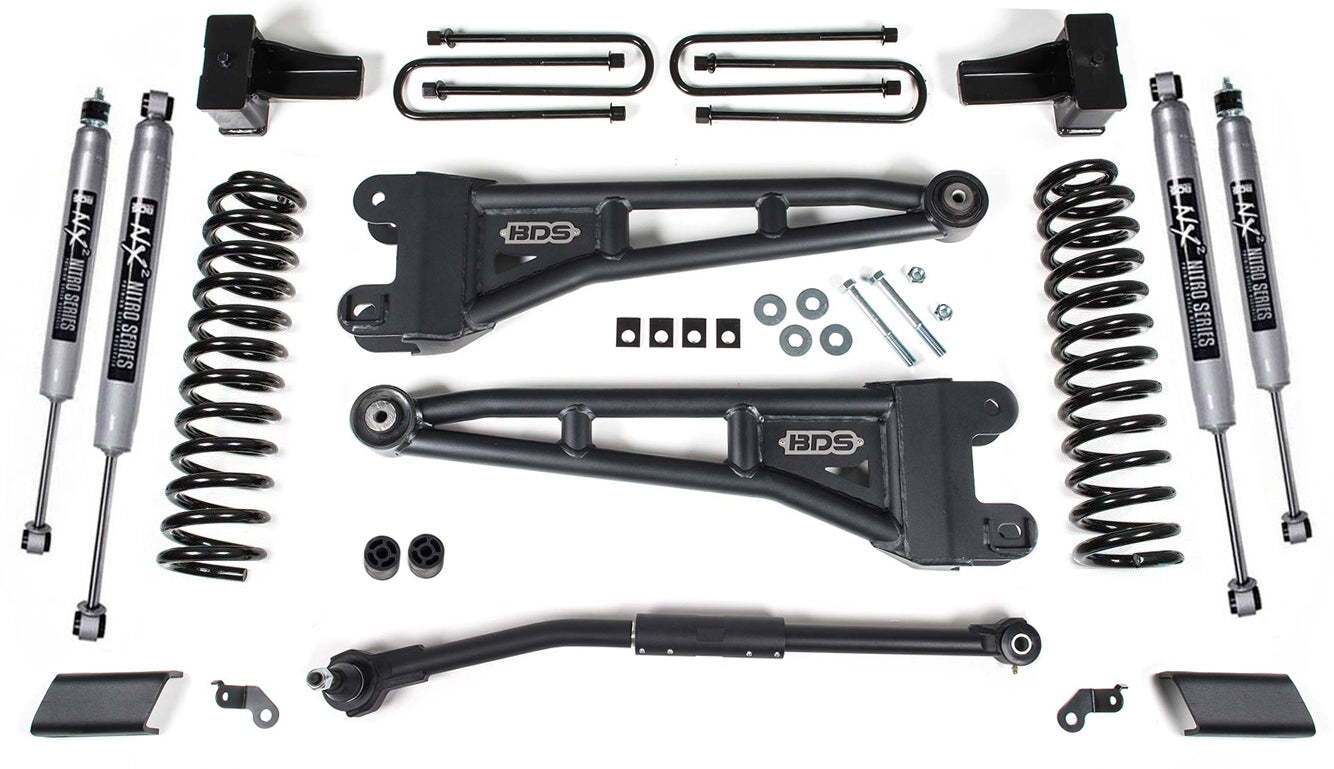

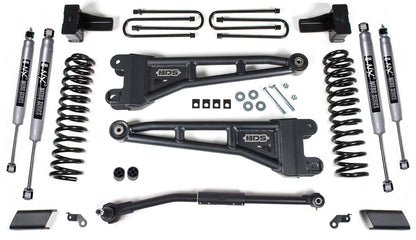

BRAND NEW BDS SUSPENSION 2.5" RADIUS ARM LIFT KIT WITH NX2 SERIES SHOCKS (PART #BDS1543H).

BDS SUSPENSION CONTINUES TO EXPAND WITH NEW SUSPENSION SYSTEMS FOR THE 2017-2019 FORD SUPER DUTY PLATFORM. THE LATEST ADDITION TO THE 1-8" LIFT OPTIONS ARE NEW 2.5" RADIUS ARM SYSTEMS DESIGNED TO IMPROVE LOOKS AND APPEARANCE, STRENGTH, AND PERFORMANCE WITH CLEARANCE FOR 35" TIRES. BASED OFF THE WIDELY POPULAR 2.5" KITS FOR THE PREVIOUS GENERATION SUPER DUTY, THESE NEW SYSTEMS INCLUDE PRORIDE COIL SPRINGS, HEAVY DUTY RADIUS ARMS, ADJUSTABLE TRACK BAR, YOUR CHOICE OF GAS SHOCKS AND BRAKE LINE CORRECTION ALONG WITH REPLACEMENT REAR LIFT BLOCKS AND U-BOLTS TO LEVEL THE STANCE. AS WITH ALL KITS THESE NEW 2.5" RADIUS ARM SYSTEMS FOR THE FORD SUPER DUTY ARE BACKED BY FACTORY PROTECTION PLUS OFFERING YOU PEACE OF MIND OUT ON THE TRAIL OR WHEREVER YOUR NEXT ADVENTURE MAY BE. THIS INCLUDES A BDS NO FINE PRINT WARRANTY, ESC SYSTEM COMPATIBILITY AND A 5YEAR-60,000MILE DRIVETRAIN WARRANTY.

THE BDS NX2 SERIES GAS SHOCKS OFFER IMPRESSIVE PERFORMANCE ON AND OFF-ROAD. STANDARD IN MOST BDS LIFT KITS, THESE NITROGEN CHARGED, TWIN-TUBE SHOCKS OFFER 10-STAGE VELOCITY SENSITIVE VALVING FOR LIGHTNING FAST DAMPER PERFORMANCE AND CONTROL.

FITS:

• FORD:
• 2017-2019 F-250 SUPER DUTY 4WD DIESEL
• 2017-2019 F-350 SUPER DUTY 4WD DIESEL

NOTES:

• COIL SPRINGS DESIGNED FOR DIESEL TRUCKS. WILL WORK ON GAS TRUCKS AND WILL NET ROUGHLY 3" OF FRONT LIFT.
• MOUNTING LARGER TIRES ON FACTORY WHEELS IS NOT RECOMMENDED DUE TO POTENTIAL BRAKE LINE CLEARANCE ISSUES.
• FACTORY TRACK BAR MOUNTING BOLT REQUIRES 405 FT-LBS OF TORQUE, PLAN AHEAD ON HOW TO ACHIEVE THIS TORQUE SPEC.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
