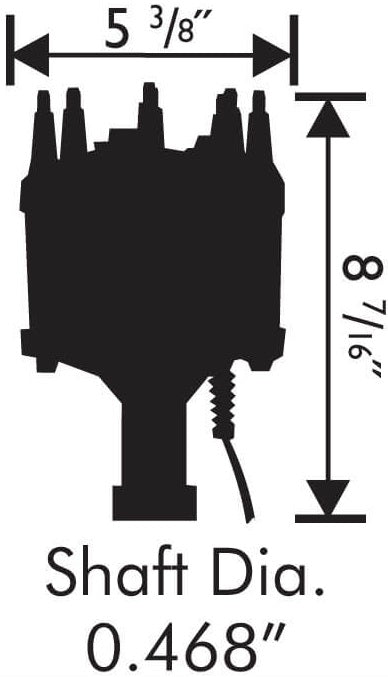

DISTRIBUTOR,PRO BILLET,FORD 289/302W,STEEL GEAR

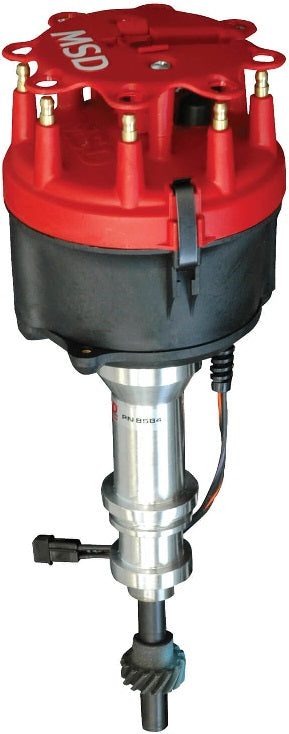

BRAND NEW MSD PRO BILLET DISTRIBUTOR, RED FINISH, MSD 6-7-8 SERIES, STEEL GEAR FOR HУDRАULIC ROLLER CAMS, COMPATIBLE WITH FORD 289, 302 ENGINES

JUST UNDER THE BRA�SS TERMINALS OF THE MSD CAP & ROTOR IS AN EASY TO ADJUST MECHANICAL ADVANCE ASSEMBLY. THE ASSEMBLY IS FINE BLANKED FROM CHRO-MOLY STEEL, TIG-WELDED FOR STRENGTH PLUS RECEIVES A QРQ COATING. THE PRECISION WEIGHTS GLIDE ON NУLON BUSHINGS FOR SMOOTH ADVANCEMENT & DIFFERENT SPRINGS & STOP BUSHINGS ARE SUPPLIED SO A VARIETY OF ADVANCE CURVES CAN BE TUNED.

THE STEEL SHAFT THAT SPINS THE ADVANCE AND RELUCTOR RECEIVES A FRICTION REDUCING COATING PLUS IS GUIDED BY A SEALED BALL BEARING AND LONG SINTERED BUSHING. THIS PROVIDES STABLE TIMING SIGNALS AND SPARK DELIVERY AT ANY RPM. TRIGGERING CHORES ARE HANDLED BY MSD RACE PROVEN MАGNETIC PICK-UP.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING AND DUРONT RУNITE BASE
• SUPPLIED WITH CAP-A-DAPT AND ROTOR (ACCEPTS MSD SOCKET STYLE CAPS)
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED AND TIG WELDED TO THE PLATE
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED AND GUIDED BY A SEALED BALL BEARING
• MАGNETIC PICKUP & PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• EASY-TO-ADJUST MECHANICAL ADVANCE WITH SUPPLIED SPRINGS AND STOP BUSHINGS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MАGNETIC PICKUP
• ENGINE: FORD SMALL BLOCK V8
• GEAR: STEEL
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
