DISTRIBUTOR,PRO BILLET,FORD 351W,STEEL GEAR

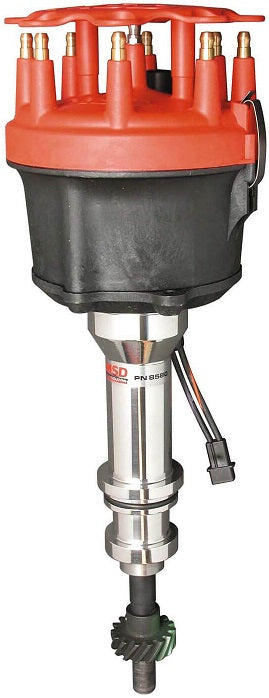

BRAND NEW MSD STEEL GEAR BILLET DISTRIBUTOR, RED FINISH, MSD 6-7-8 SERIES, COMPATIBLE WITH FORD 351W ENGINES

JUST UNDER THE BRA�SS TERMINALS OF THE MSD CAP AND ROTOR IS AN EASY-TO-ADJUST MECHANICAL ADVANCE ASSEMBLY. THE ASSEMBLY IS FINE BLANKED FROM CHRO-MOLY STEEL, TIG-WELDED FOR STRENGTH PLUS RECEIVES A QPQ COATING. THE PRECISION WEIGHTS GLIDE ON NYLON BUSHINGS FOR SMOOTH ADVANCEMENT AND DIFFERENT SPRINGS AND STOP BUSHINGS ARE SUPPLIED SO A VARIETY OF ADVANCE CURVES CAN BE TUNED.

THE STEEL SHAFT THAT SPINS THE ADVANCE AND RELUCTOR RECEIVES A FRICTION REDUCING COATING PLUS IS GUIDED BY A SEALED BALL BEARING & LONG SINTERED BUSHING. THIS COMBINATION PROVIDES STABLE TIMING SIGNALS AND SPARK DELIVERY AT ANY RPM. TRIGGERING CHORES ARE HANDLED BY MSD RACE PROVEN, MAINTENANCE-FREE MАGNETIC PICK-UP.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

FEATURES:

• MAINTENANCE-FREE MАGNETIC PICKUP & ADVANCE ASSEMBLY

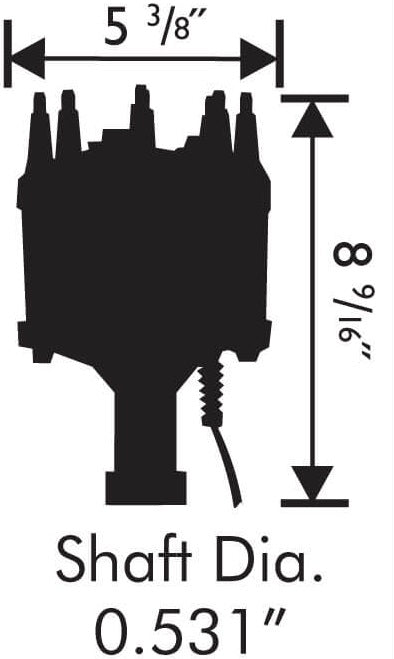

• SAME HEIGHT & WIDTH AS PART #8584

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MAGNETIC PICKUP
• ENGINE: FORD 351W
• GEAR: STEEL
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
