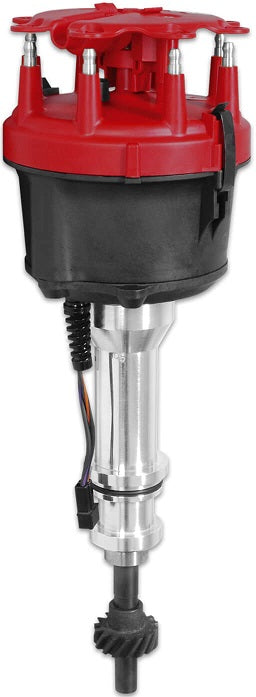

DISTRIBUTOR,PRO BILLET,FORD 351C/429/460

BRAND NEW MSD PRO BILLET DISTRIBUTOR, RED FINISH, MSD 6-7-8 SERIES, COMPATIBLE WITH FORD 351C, 351M, 400, 429 & 460 ENGINES

JUST UNDER THE BRA�SS TERMINALS OF THE MSD CAP AND ROTOR IS AN EASY-TO-ADJUST MECHANICAL ADVANCE ASSEMBLY. THE ASSEMBLY IS FINE BLANKED FROM CHRO-MOLY STEEL, TIG-WELDED FOR STRENGTH PLUS RECEIVES A QPQ COATING. THE PRECISION WEIGHTS GLIDE ON NYLON BUSHINGS FOR SMOOTH ADVANCEMENT AND DIFFERENT SPRINGS AND STOP BUSHINGS ARE SUPPLIED SO A VARIETY OF ADVANCE CURVES CAN BE TUNED.

THE STEEL SHAFT THAT SPINS THE ADVANCE AND RELUCTOR RECEIVES A FRICTION REDUCING COATING PLUS IS GUIDED BY A SEALED BALL BEARING & LONG SINTERED BUSHING. THIS COMBINATION PROVIDES STABLE TIMING SIGNALS AND SPARK DELIVERY AT ANY RPM. TRIGGERING CHORES ARE HANDLED BY MSD RACE PROVEN, MAINTENANCE-FREE MАGNETIC PICK-UP.

NOTE: MUST BE USED WITH AN MSD 6, 7 OR 8-SERIES IGNITION.

NOTE: WILL NOT CLEAR SOME FACTORY-STYLE SHAKER HOOD SCOOPS.

FEATURES:

• CNC MACHINED BILLET ALUMINUM HOUSING & DUРONT RУNITE BASE
• SUPPLIED WITH CAP-A-DAPT & ROTOR (ACCEPTS MSD SOCKET STYLE CAPS)
• MECHANICAL ADVANCE ASSEMBLY CAN BE LOCKED OUT FOR CRANK TRIGGER SYSTEMS
• NYLON PADS ENSURE SMOOTH OPERATION OF THE ADVANCE WEIGHTS
• ADVANCE WEIGHT PINS ARE STAKED & TIG WELDED TO THE PLATE
• ADVANCE PLATE & WEIGHTS ARE FINE BLANKED FROM CHROME MOLY STEEL & QPQ COATED FOR FRICTION REDUCTION
• POLISHED STEEL SHAFT IS QPQ COATED & GUIDED BY SEALED BALL BEARING
• MAINTENANCE-FREE MАGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT THE RPM RANGE
• ADJUSTABLE MECHANICAL ADVANCE WITH SUPPLIED SPRINGS & STOP BUSHINGS

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MАGNETIC PICKUP
• ENGINE: FORD 351C-460
• GEAR: CAST IRON
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
