DISTRIBUTOR,PRO BILLET,CHEVY V-8,LOCKED,BRZ GEAR

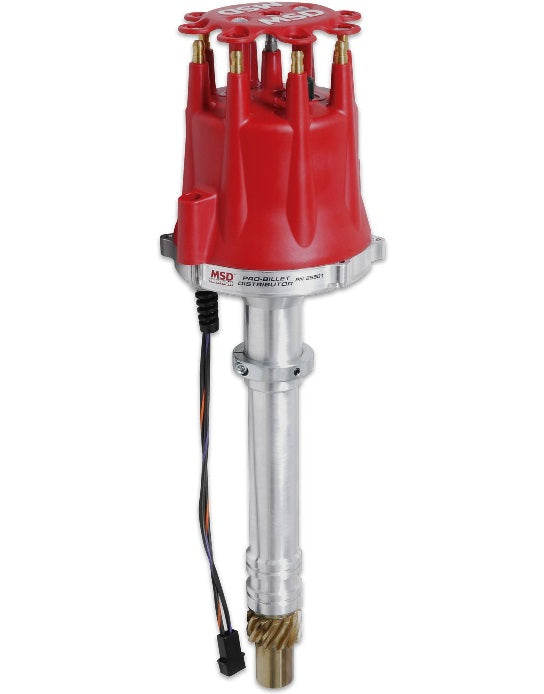

BRAND NEW MSD PRO BILLET DISTRIBUTOR, RED HEI STYLE DISTRIBUTOR CAP, MSD 6-7-8-10 SERIES IGNITION, COMPATIBLE WITH CHEVY V8 ENGINES

THIS STRONG, BILLET ALUMINUM DISTRIBUTOR IS SET UP FOR ENGINES THAT RUN LOCKED-OUT TIMING OR AN MSD TIMING COMPUTER. WITH NO ADVANCE ASSEMBLY, THE ROTOR PLATE IS WELDED DIRECTLY TO THE OVERSIZED SHAFT. A SEALED BALL BEARING GUIDES THE TOP OF THE SHAFT WHILE AN EXTRA LONG SINTERED BUSHING STABILIZES THE LOWER PORTION.

TRIGGER SIGNALS ARE PRODUCED VIA A HIGH-OUTPUT MАGNETIC PICK-UP. THIS PICKUP IS EXTREMELY ACCURATE AND NEVER REQUIRES ADJUSTMENT. DESIGNED PRIMARILY FOR RACE ENGINES, AN OVERSIZED (+.006") BRONZE GEAR IS INSTALLED ALONG WITH AN ADJUSTABLE SLIP COLLAR FOR MODIFIED BLOCKS, HEADS OR INTAKE MANIFOLDS.

FEATURES:

• DESIGNED TO BE COMPATIBLE WITH RACE APPLICATIONS WITH NO MECHANICAL ADVANCE
• WILL NOT ACCEPT A VACUUM ADVANCE CANISTER
• ONLY COMPATIBLE WITH AN MSD 6, 7, 8, OR 10 SERIES IGNITION
• SUPPLIED WITH AN HEI STYLE DISTRIBUTOR CAP AND ROTOR (ACCEPTS CAP-A-DAPTS)
• SUPPLIED WITH A 0.006" OVERSIZED BRONZE GEAR INSTALLED
• O-RING SEALS CAN BE ADDED TO MODIFIED BLOCKS TO IMPROVE OIL PRESSURE CONTROL
• SPECIAL OIL TRACT IMPROVES LUBRICATION TO THE DISTRIBUTOR AND CAM GEAR
• POLISHED STEEL SHAFT IS QРQ COATED AND GUIDED BY A SEALED BALL BEARING
• ADJUSTABLE SLIP COLLAR MOUNTING FLANGE FOR ENGINES WITH MODIFIED DECK HEIGHTS
• MАGNETIC PICKUP AND PRECISION RELUCTOR CREATE STABLE TRIGGER SIGNALS THROUGHOUT RPM RANGE
• CNC MACHINED BILLET ALUMINUM HOUSING AND BILLET ALUMINUM BASE

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: MАGNETIC PICKUP
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
