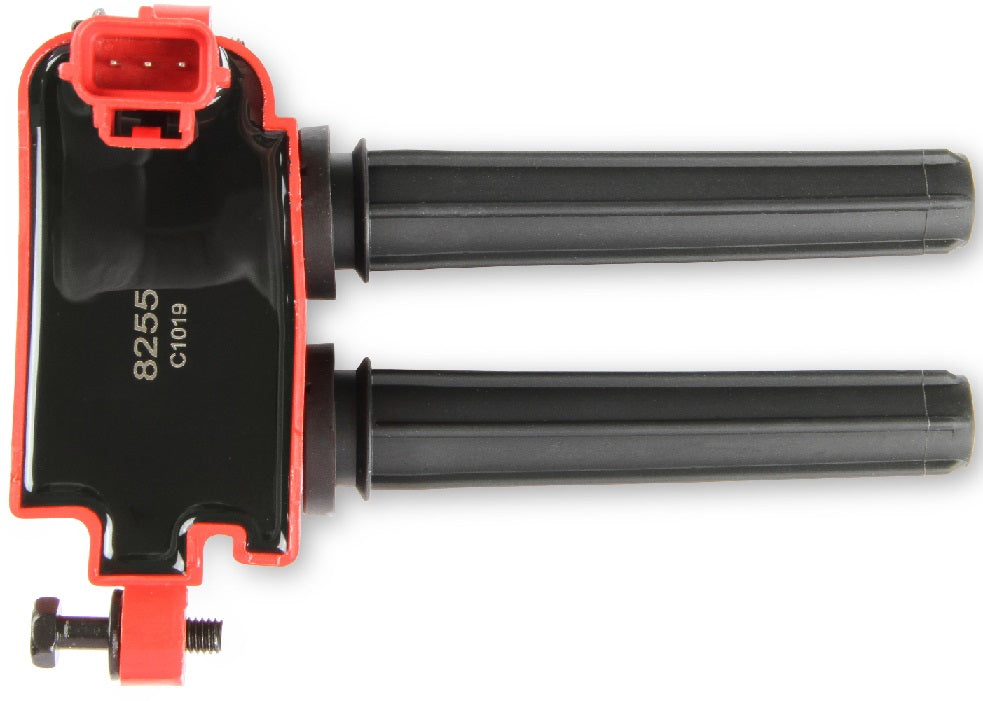

IGNITION COILS,05-20 MOPAR HEMI,5.7L,6.1L,RED,8PK

Brand New MSD Ignition Coil, Blaster, Red, 8 Pack, Compatible with 2005-2020 HEMI 5.7L/6.1L/6.2L/6.4L Engines (Hоlley Part #82558).

The Coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit.

Features:

• Improved high rpm operation
• winding design and materials
• Direct bolt-in to factory connectors
• Secondary Current (mA): 56 mA

Specs:

• Brand: MSD
• Color: Red
• Engine: 2005-2020 HEMI 5.7L/6.1L Engines
• Inductance: 2.15 mH
• Maximum Voltage: 36,000
• Primary Resistance: .403 ohms
• Product Type: Ignition Coil
• Quantity: Set of 8
• Secondary Resistance: 14.5K ohms
• Spark duration: 1320 mS
• Spark Energy: 96 mJ
• Turns Ratio: 80:1

You can view and download the complete assembly instruction booklet here.
