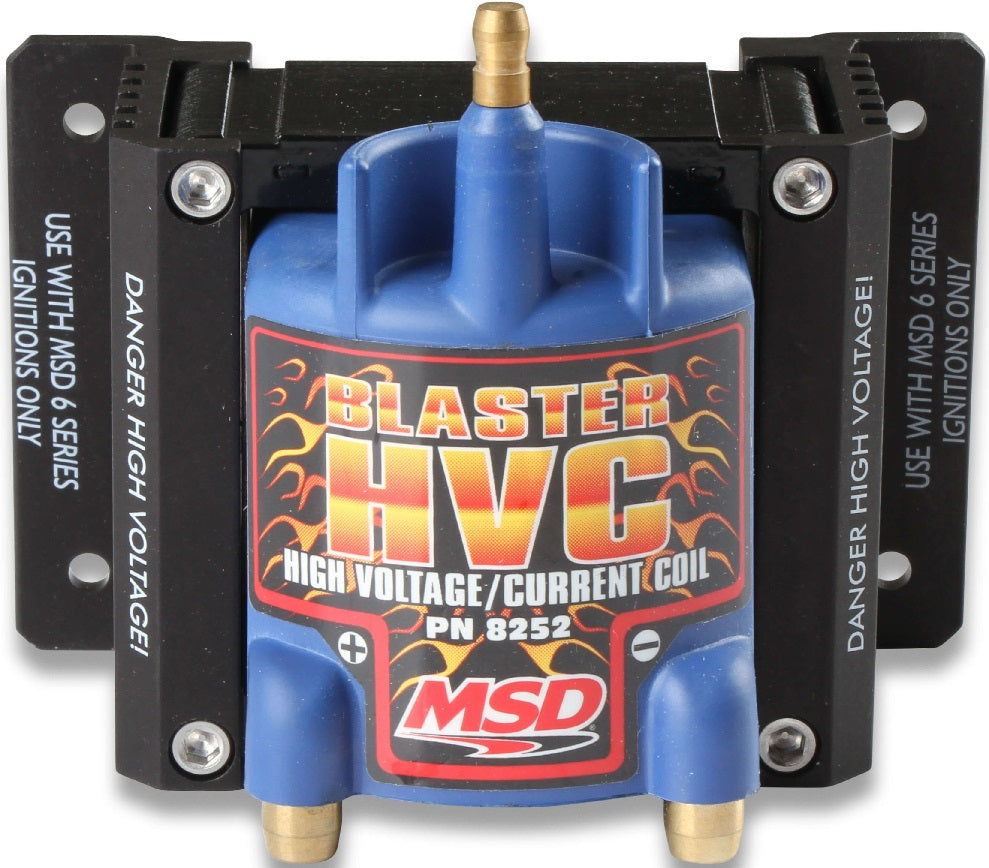

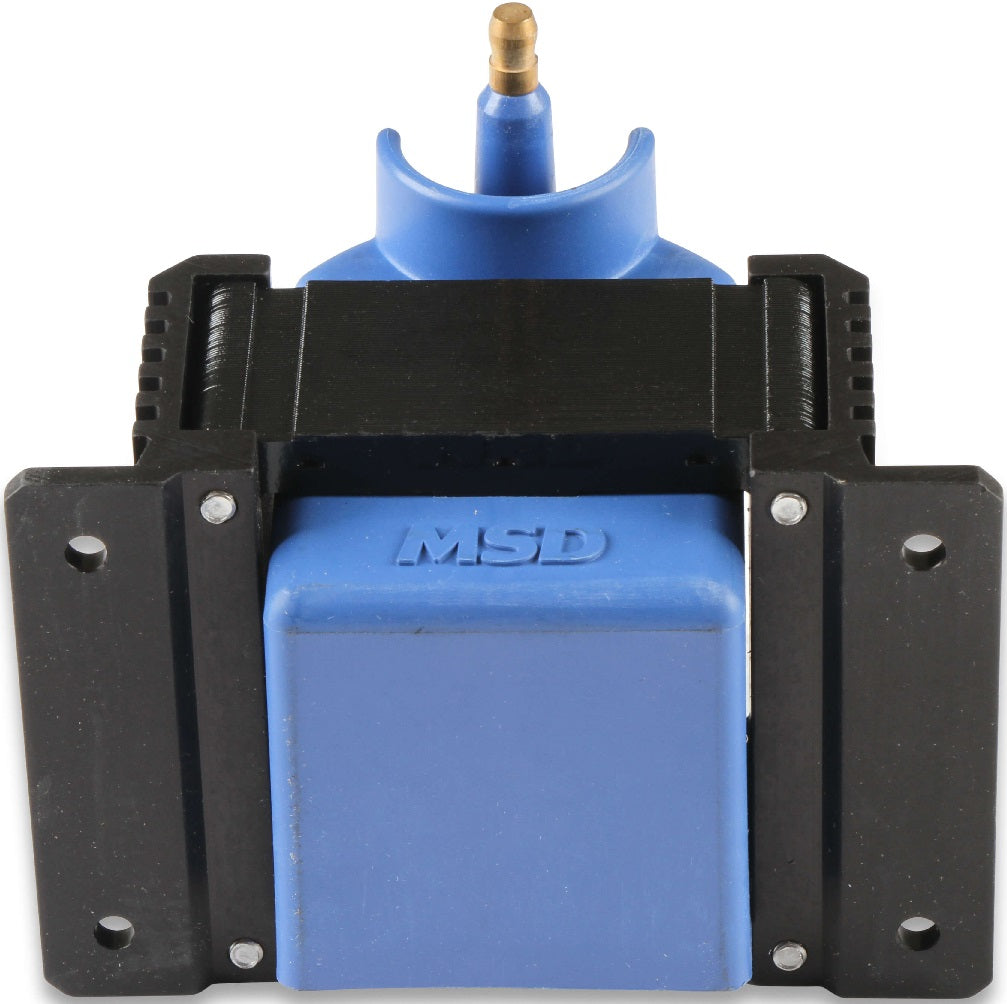

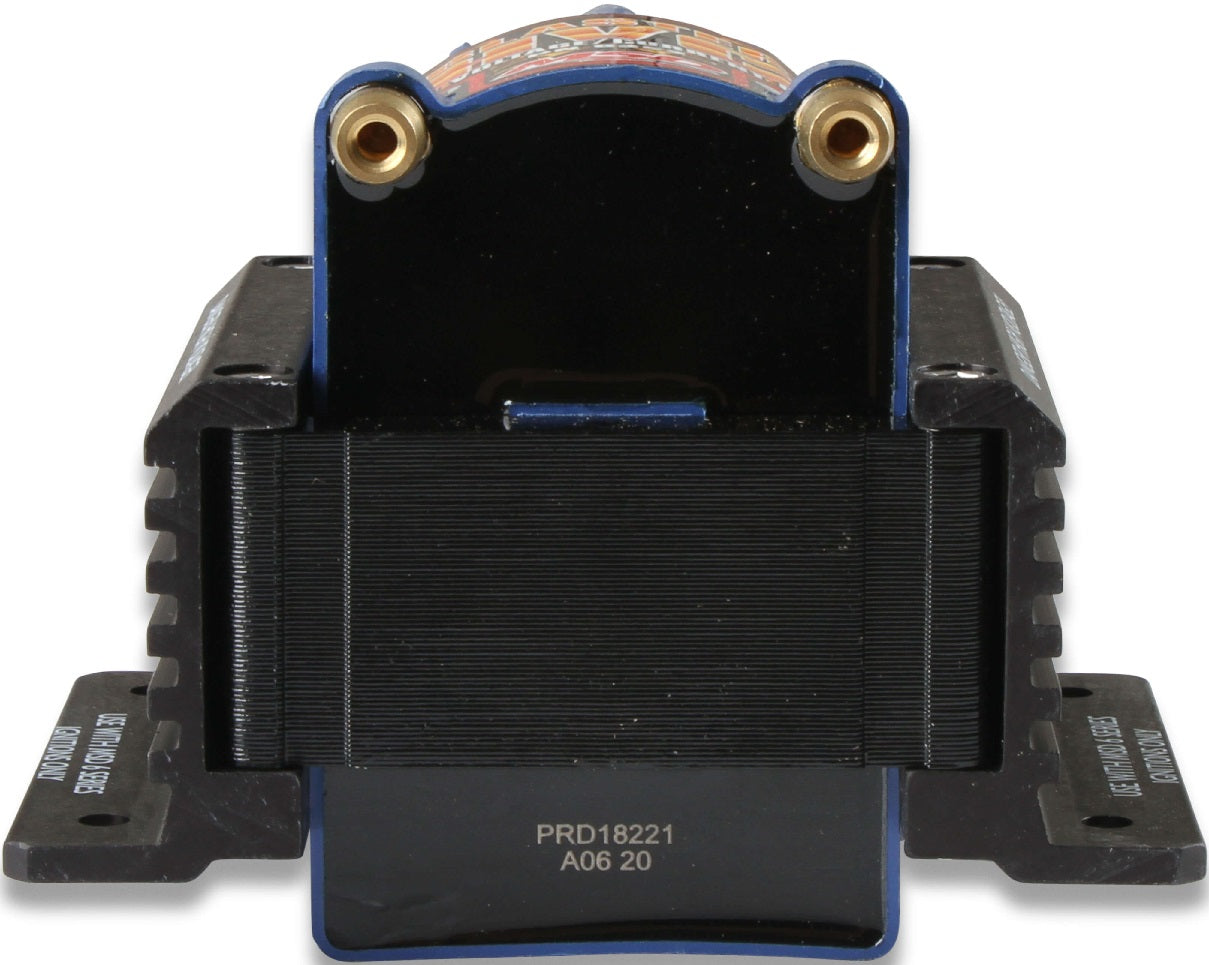

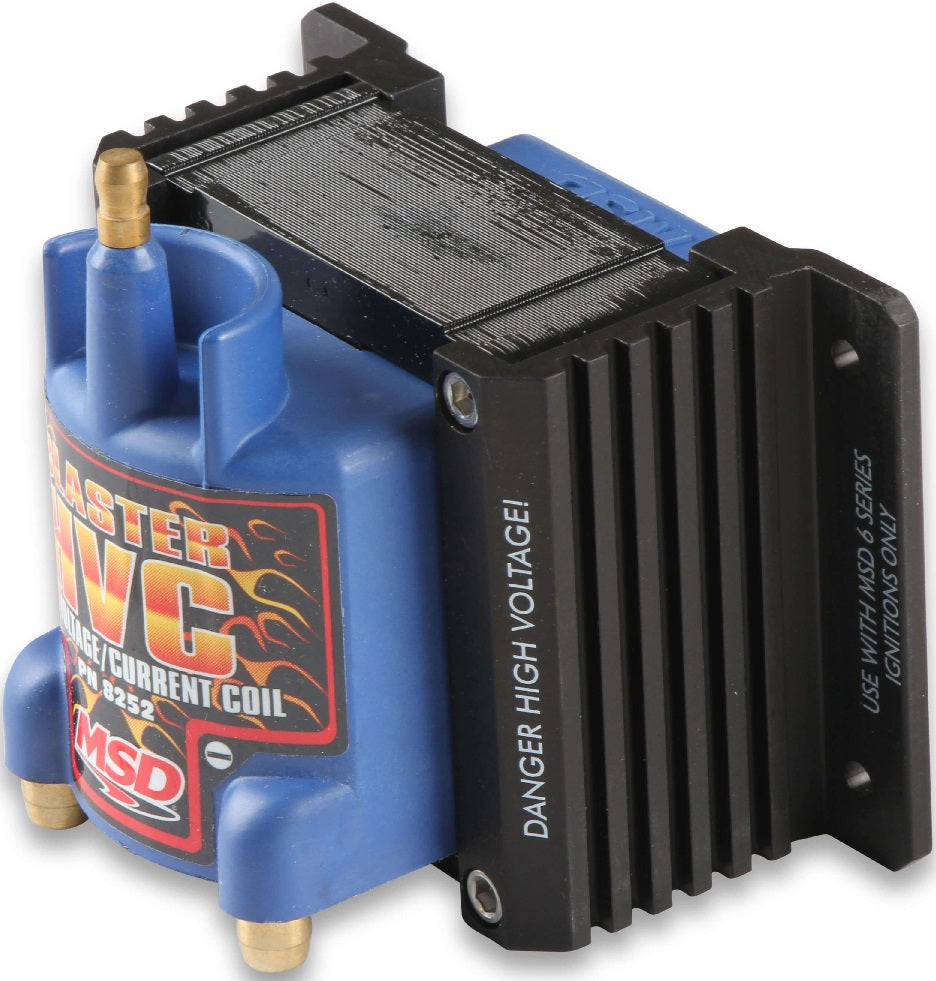

COIL,BLASTER HVC,MSD 6 SERIES

BRAND NEW MSD IGNITION COIL, BLASTER HVC, BLUE, 42,000 VOLTS, COMPATIBLE WITH MSD 6 SERIES IGNITIONS

COILS HAVE ALWAYS HAD TO COMPROMISE VOLTAGE OUTPUT AGAINST CURRENT OUTPUT. MORE VOLTAGE INCREASES THE INITIAL IONIZATION OF THE SPARK PLUG GAP BUT LOWERS THE AMOUNT OF CURRENT, OR HEAT, THAT FOLLOWS ACROSS THE PLUG GAP. WHEN A COIL IS DESIGNED TO PRODUCE MORE CURRENT, THE VOLTAGE OUTPUT GENERALLY SUFFERS WHICH TAXES THE EASE OF IONIZING THE GAP. THE MSD HVC COILS ARE DESIGNED TO PRODUCE MAXIMUM VOLTAGE AND ENERGY!

FEATURES:

• DESIGNED FOR HIGH RPM, LONG DURATION APPLICATIONS
• WORKS WITH ELECTRONIC IGNITIONS AND MSD IGNITION CONTROLS (BALLAST RESISTOR REQUIRED FOR POINTS SYSTEMS)
• 100:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• WINDINGS ARE ENCASED IN BLUE EPOXY AND SECURED WITH EXTRUDED BRACKETS
• SPARK PLUG STYLE TERMINAL AND THREADED BRASS PRIMARY STUDS
• SUPPLIED WITH RUBBER SHOCK MOUNTS

SPECS:

• BRAND: MSD
• INDUCTANCE: 7 MH
• MAXIMUM VOLTAGE: 42,000 VOLTS
• PEAK CURRENT: 300 MA
• PRIMARY RESISTANCE: .02 OHMS
• PRODUCT TYPE: IGNITION COIL
• SECONDARY RESISTANCE: 1.38K OHMS
• SPARK DURATION: 200 US

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
