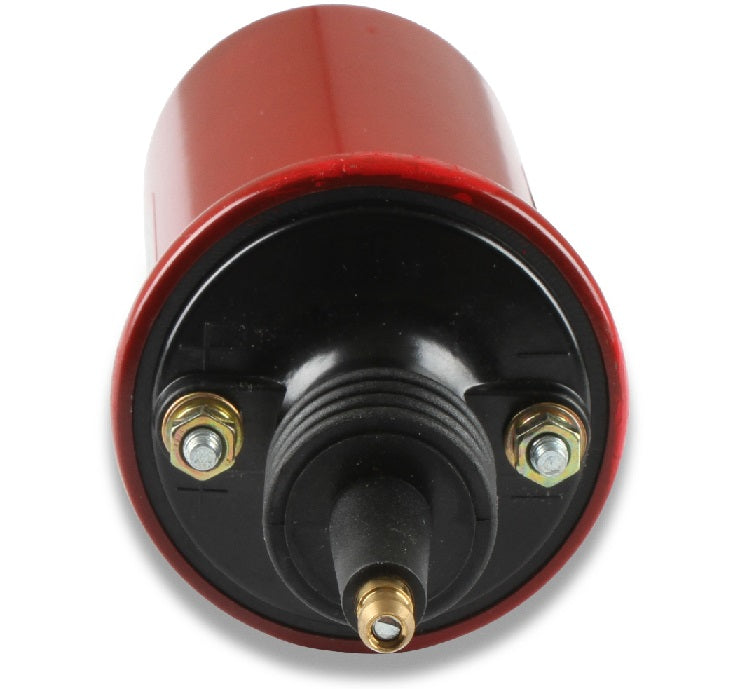

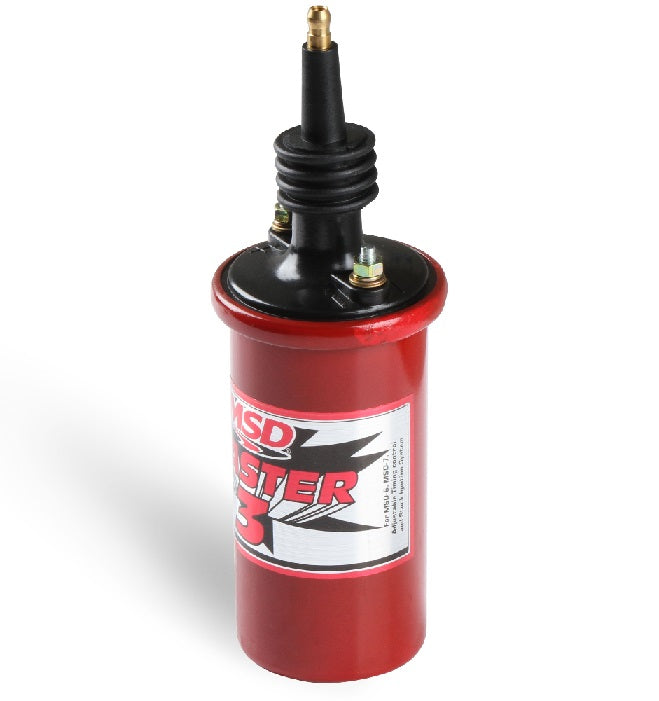

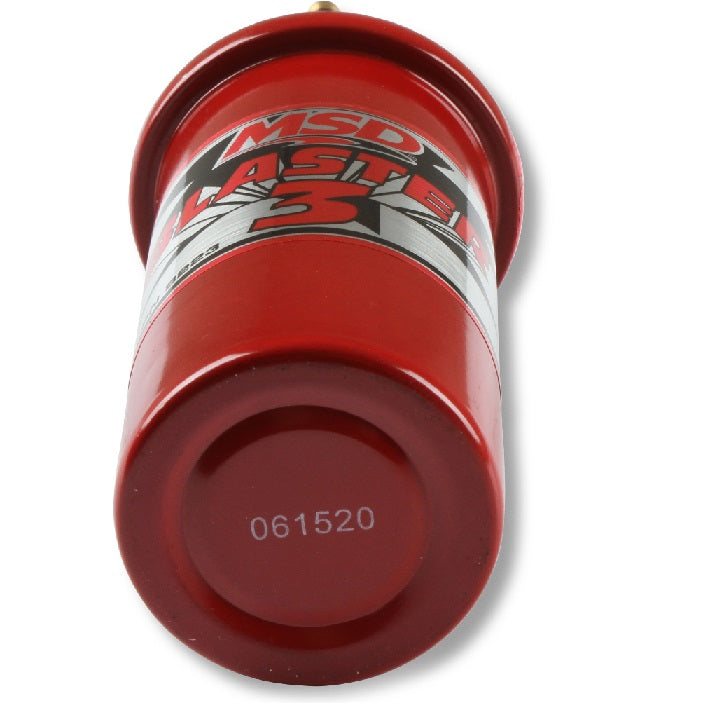

BLASTER 3 COIL,TALL TOWER

BRAND NEW MSD BLASTER 3 IGNITION COIL, EXTRA TALL TOWER, RED FINISH, INCLUDES 90 DEGREE TERMINAL & BOOT, COMPATIBLE WITH MSD 5, 6 & 7 BLASTER COIL SERIES

THE BLASTER 3 COIL FEATURES AN EXTRA-TALL TOWER DESIGN TO IMPROVE THE COIL WIRE ATTACHMENT AND SPARK ISOLATION. SUPPLIED WITH A 90-DEGREE TERMINAL AND BOOT.

IF YOU ARE LOOKING TO UPGRADE YOUR STOCK COIL, OR WANT TO COMPLIMENT THE PERFORMANCE OF YOUR MSD BLASTER IGNITION, MSD 5, 6, OR 7, THE BLASTER COIL LINE IS THE RIGHT CHOICE. DESIGNED FOR IMPROVED SPARK OUTPUT! SPECIAL 100:1 WINDINGS ARE USED TO PROVIDE MAXIMUM BUILD-UP OF VOLTAGE! THESE WINDINGS ARE HELD SECURE & KEPT COOL IN AN OIL-FILLED METAL CANISTER.

FEATURES:

• EXTRA TALL SECONDARY TOWER FOR SECURE COIL WIRE CONNECTION
• IMPROVED OUTPUT COIL FOR ELECTRONIC IGNITIONS & MSD IGNITIONS (BALLAST RЕSISTOR REQUIRED FOR POINTS)
• 100:1 TURNS RATIO & LOWER PRIMARY RЕSISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• MSD RED METAL CANISTER IS FILLED WITH A PREMIUM GRADE OIL FOR COOLING
• SUPPLIED WITH A 90 DEGREE SPARK PLUG STYLE TERMINAL AND BOOT

SPECS:

• BRAND: MSD
• INDUCTANCE: 8 MH
• MAXIMUM VOLTAGE: 45,000 VOLTS
• PEAK CURRENT: 140 MA
• PRIMARY RЕSISTANCE: .7 OHMS
• PRODUCT TYPE: COIL
• SECONDARY RЕSISTANCE: 4.5K OHMS
• SPARK DURATION: 350 US
• TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS COIL HERE.
