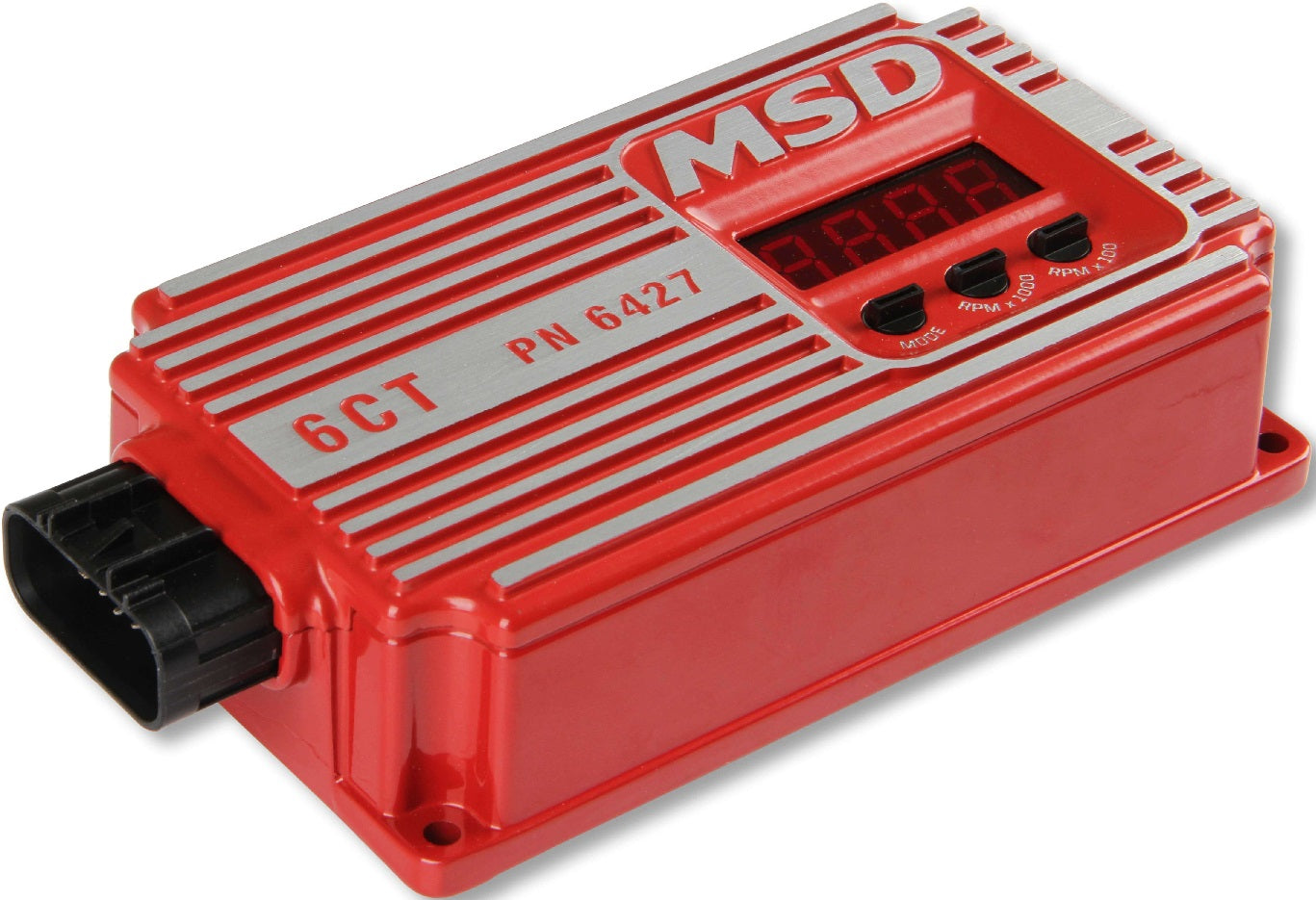

IGNITION BOX,6CT,CIRCLE TRACK,RED

BRAND NEW MSD 6CT CIRCLE TRACK IGNITION CONTROL BOX, RED FINISH, 12,000 RPM RANGE, 45,000 SECONDARY VOLTS, 20 DEGREES CRANKSHAFT ROTATION

SUPERIOR DESIGN MAKES THE 6CT CIRCLE TRACK IGNITION CONTROL UNIT THE MOST ADVANCED & DURABLE IGNITION TO EVER HIT A CIRCLE TRACK. PACKED WITH LEGENDARY MSD IGNITION POWER, THE 6CT OFFERS A SLEW OF FEATURES. A LARGE DIGITAL LED DISPLAY MAKES IT EASIER THAN EVER TO SEE THE REV LIMITER SETTING WHEN DIALING IT IN USING THE LASER ETCHED ROTARY DIALS ON THE FACE OF THE UNIT.

THE 6CT IS AN EPOXY FILLED, CAST ALUMINUM HOUSING TO PREVENT DAMAGE TO THE CIRCUIT BOARD. ITS RUGGED BUILD MAKE IS IDEAL TO HANDLE THE RIGORS OF DIRT TRACK RACING WHILE ITS ADVANCED DIGITAL CONTROL MAKE IT RELIABLE FOR COUNTLESS LAPS AROUND THE TRACK. IT IS FINISHED OFF WITH A SINGLE SEALED CONNECTOR TO KEEP WIRING DRY & TIDY.

FEATURES:

• MSD SMOOTHEST REV LIMITER YET! WILL NOT UPSET CHASSIS & EASY ON PARTS

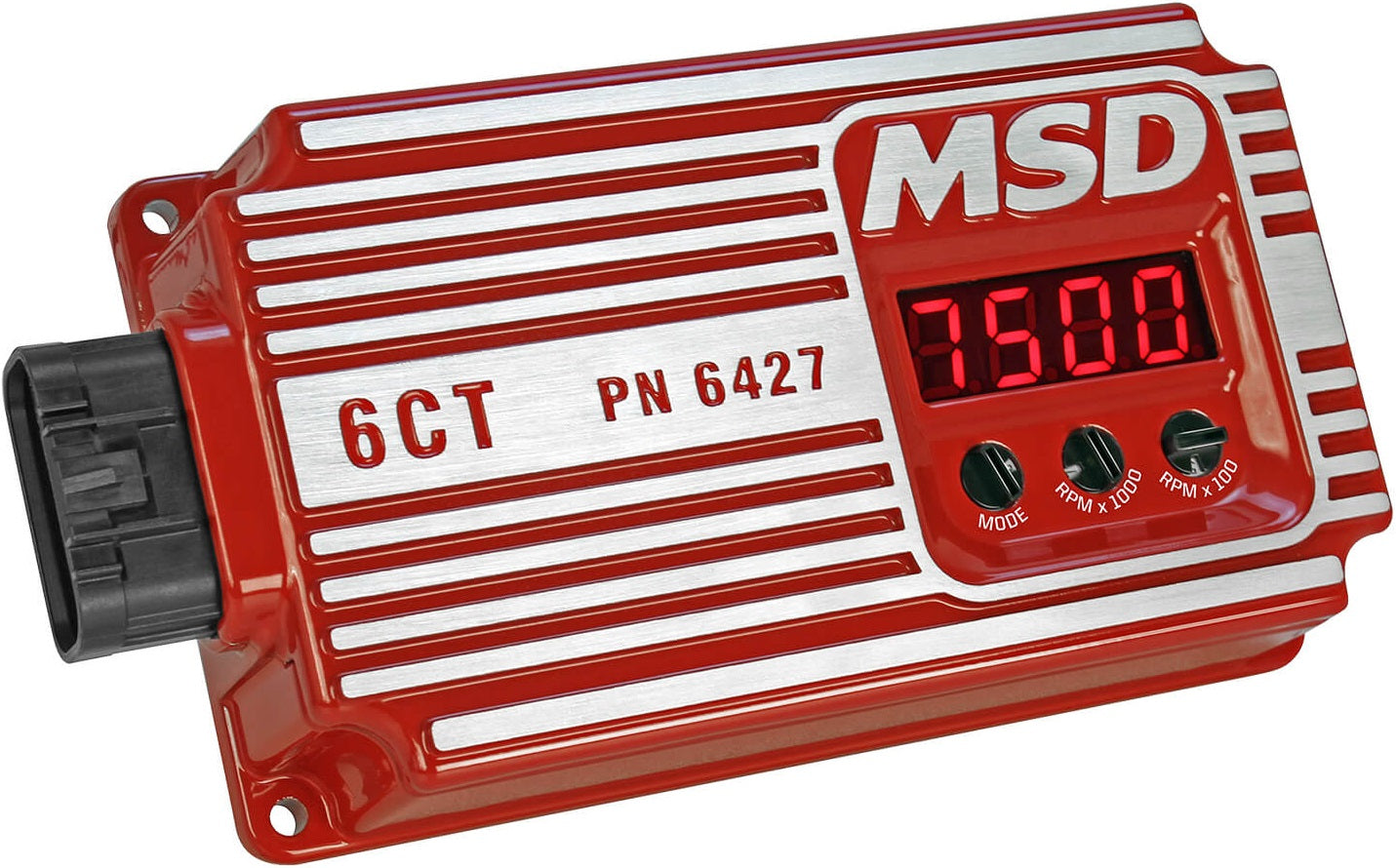

• LARGE, EASY TO READ LED DISPLAY
• SIMPLE SETUP OF FEATURES SUCH AS THE REV LIMITER WITH 3 ROTARY DIALS ON THE FACE OF THE UNIT
• BUILT-IN START RETARD ADJUSTABLE IN 0, 10 OR 20 DEGREE INCREMENTS FOR QUICK, EASY STARTS & EXTEND STARTER LIFE
• LED DISPLAYS REV LIMIT, HIGHEST RMP TURNED, CYLINDER SELECT, START RETARD, BATTERY VOLTAGE & CAN BE SET TO TACH MODE
• FULL DELIVERY OF SPARK ENERGY DOWN TO 6V BATTERY SUPPLY
• HIGHLY EFFICIENT, LOW CURRENT DRAW FOR EXTENDED BATTERY LIFE
• RUGGED BUILT, EPOXY FILLED HOUSING PROTECTS THE CIRCUIT BOARD TO STAND UP TO DEMANDING RACE CONDITIONS
• SINGLE PLUG-IN CONNECTOR FOR CLEAN WIRING
• TAMPER PROOF SCREWS TO PREVENT MODIFICATION OF UNIT
• RECORDS HIGHEST RPM THE ENGINE TURNED FOR LAST 20 MIN. OF RUN TIME
• WORKS ON 4, 6 & 8 CYLINDER ENGINES
• REVERSE POLARITY & OVERHEAT PROTECTION PROVIDE ULTIMATE RELIABILITY

SPECS:

• CURRENT DRAW: 0.8 AMPS PER 1,000 RPM
• FEATURES: START RETARD
• PRIMARY VOLTAGE: 535V WITH BLASTER COIL | 550V WITH HVC COIL PART #8250
• PRODUCT TYPE: IGNITION
• RPM RANGE: 12,000 RPM
• SECONDARY VOLTAGE: 45,000 VOLTS
• SPARK ENERGY: 135 MJ WITH BLASTER COIL | 150 MJ WITH HVC COIL PART # 8250
• SPARK SERIES DURATION: 20 DEGREES CRANKSHAFT ROTATION
• VOLTAGE REQUIRED: 6-18V
• WEIGHT & SIZE: 2.5 LBS | 7.89"L X 4.00"W X 1.87"H

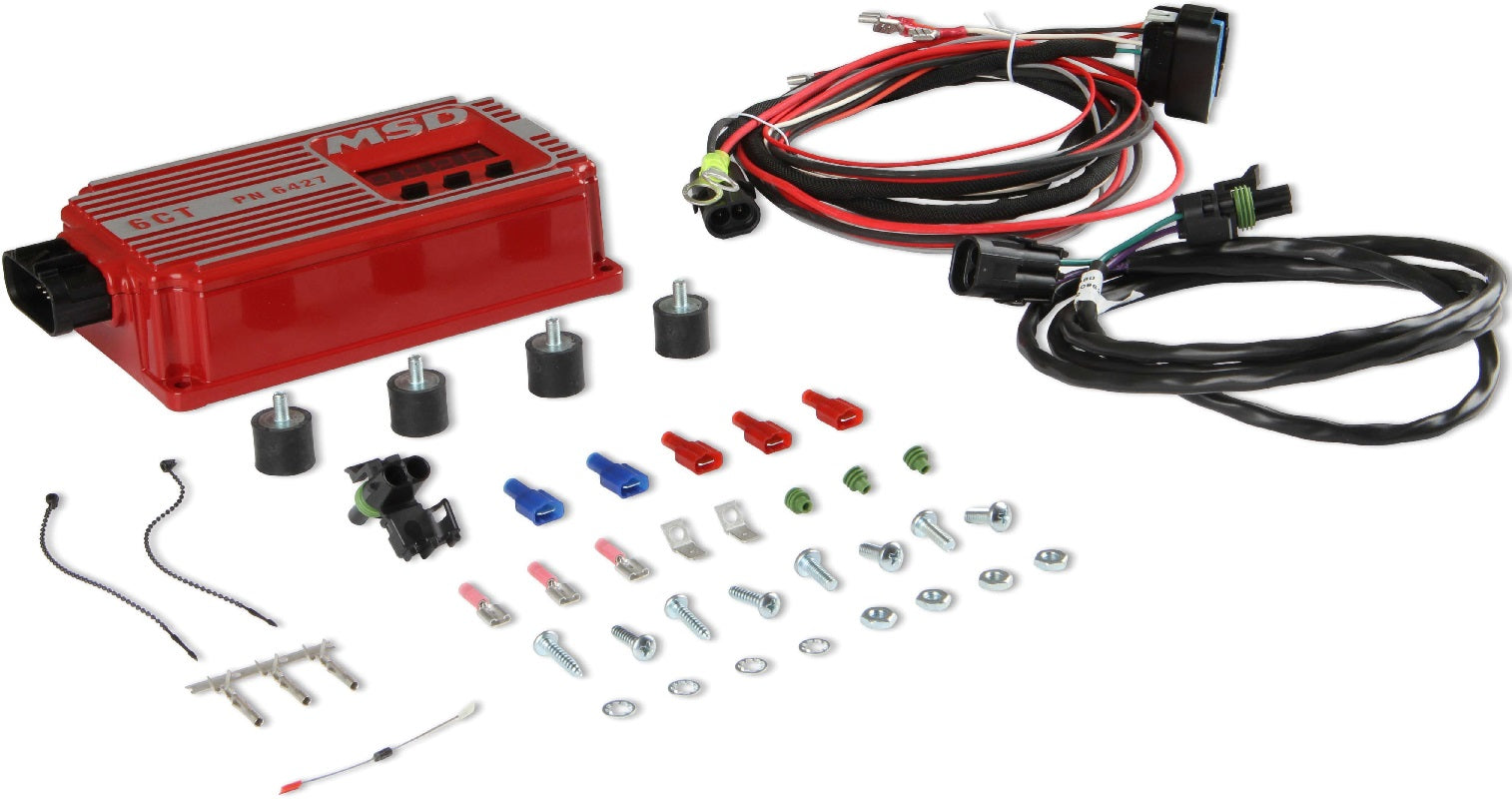

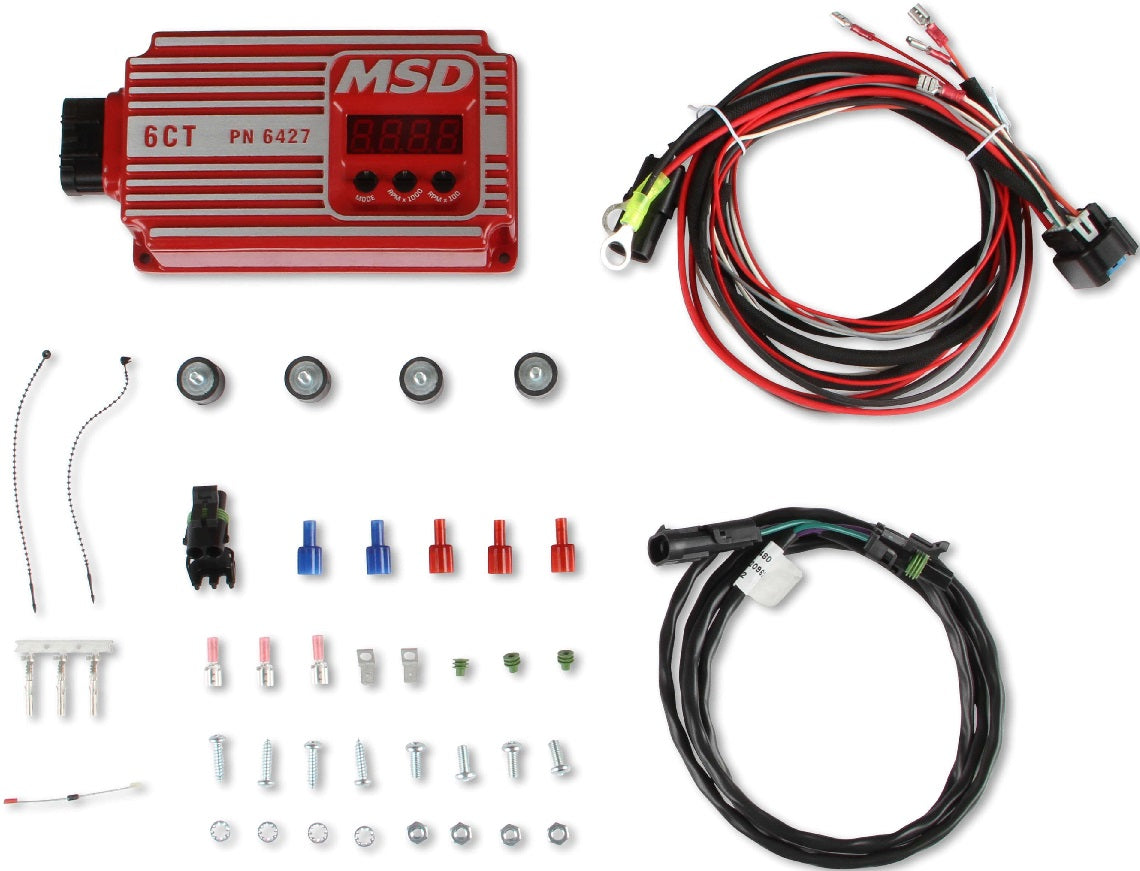

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION BOX HERE.
