SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,15%,DENSO MOUNT

SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,15%,DENSO MOUNT

KRC 57742 115

$799.99
$799.99
View full details
  • THE PERFECT KIT TO EQUIP THE ENTIRE FRONT OF A SMALL BLOCK CHEVY
  • THIS KIT INCLUDES THE POWER STEERING PUMP & THE WATER PUMP. IT MOUNTS THE POWER STEERING PUMP TO THE LEFT SIDE OF THE BLOCK & FEATURES PULLEYS WITH A 15% REDUCTION. IT ALSO CONTAINS THE BRACKET, PULLEY, & BELT FOR ANY 93mm (138mm BOLT PATTERN) DENSO ALTERNATOR

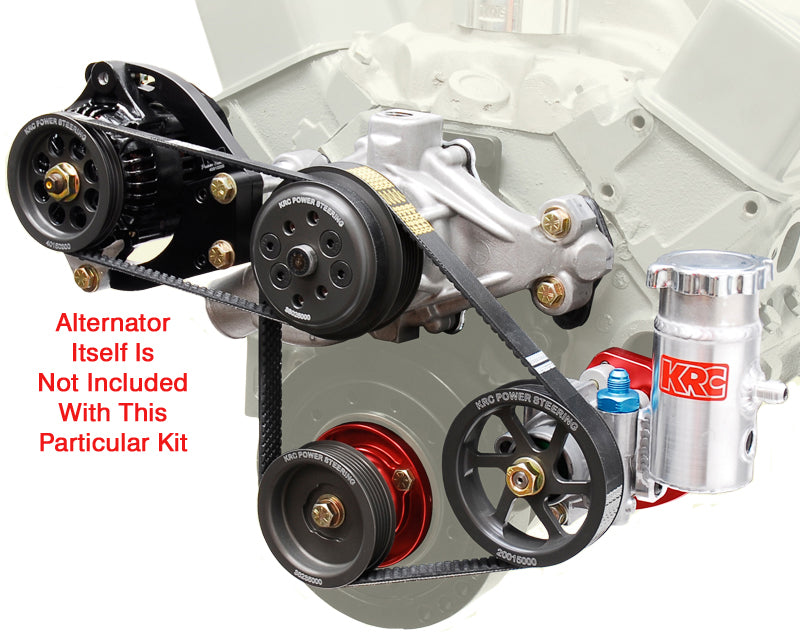

  • THIS PARTICULAR KIT DOESNT INCLUDE THE ALTERNATOR ITSELF. THIS SAME KIT WITH A DENSO ALTERNATOR IS #KRC 57782 115

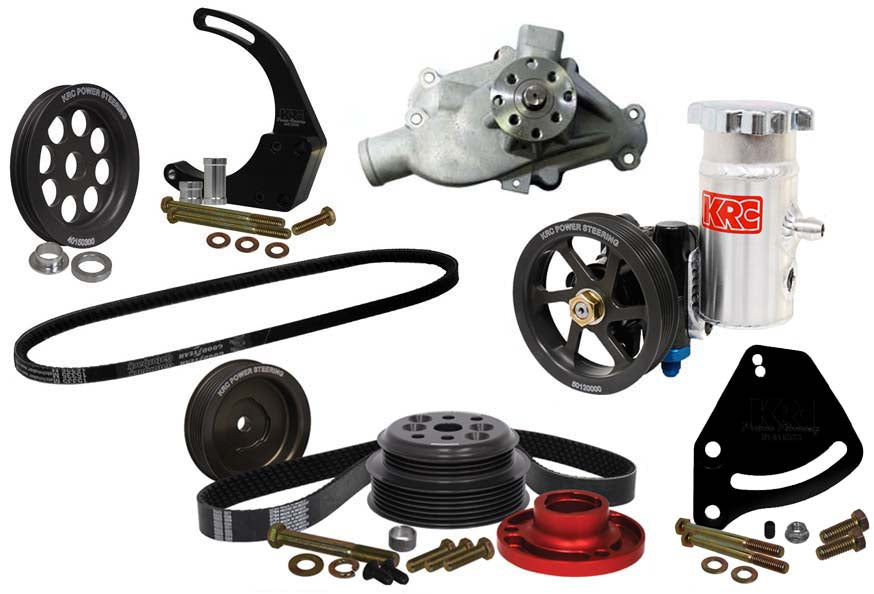

  • THIS KIT INCLUDES:

    *ALUMINUM WATER PUMP:
    -SHORT DESIGN
    -3/4" SHAFT
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -DUAL FAN MOUNTING PATTERN

    *CAST IRON POWER STEERING PUMP WITH SERPENTINE PULLEY & BOLT-ON POWER STEERING RESERVOIR:
    -7.2cc PUMP VOLUME
    --6AN INLET ON THE TANK & -6AN OUTLET ON THE PUMP
    -PUMP FEATURES A FLOW VALVE THAT CAN EASILY BE CHANGED TO ADJUST THE FEEL OF THE STEERING
    -PULLEY IS LIGHTWEIGHT ALUMINUM & MEASURES 4.2" DIAMETER
    -LIGHTWEIGHT ALUMINUM TANK HAS AN 8 OUNCE CAPACITY

    *SBC HEAD MOUNT POWER STEERING PUMP BRACKET:
    -BOLTS TO THE LEFT SIDE OF THE BLOCK ON A SBC
    -HIGH QUALITY, LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -ALL SURFACES ARE FULLY CNC MACHINED
    -ADJUSTABLE DESIGN
    -CAPTURES NUT MAKES STARTING BOLTS EASIER
    -COMES WITH ALL NECESSARY BOLTS, NUTS, & WASHERS

    *SERPENTINE WATER PUMP PULLEY:
    -DOUBLE GROOVE PULLEY
    -4" DIAMETER REAR GROOVE WITH 6 RIBS
    -3 1/2" DIAMETER FRONT GROOVE WITH 3 RIBS FOR THE ALTERNATOR BELT
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

    *SERPENTINE CRANK PULLEY:
    -SINGLE GROOVE PULLEY WITH 6 RIBS
    -3 1/2" DIAMETER
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

    *6 RIB SERPENTINE BELT:
    -GOES AROUND POWER STEERING PUMP PULLEY, WATER PUMP PULLEY, & CRANK PULLEY

    *DENSO ALTERNATOR BRACKET:
    -CNC MACHINED, 6061-T6 ALUMINUM DENSO MID-MOUNT ALTERNATOR BRACKET
    -ANODIZED FINISH
    -INCLUDES ALL APPROPRIATE HARDWARE & SPACERS THAT ARE NECESSARY TO MOUNT THE ALTERNATOR

    *SERPENTINE ALTERNATOR PULLEY:
    -3 1/2" DIAMETER
    -SINGLE GROOVE WITH 3 RIBS
    -CNC MACHINED, 6061-T6 BILLET ALUMINUM CONSTRUCTION

    *3 RIB SERPENTINE ALTERNATOR BELT:
    -GOES AROUND ALTERNATOR PULLEY & FRONT GROOVE ON WATER PUMP PULLEY

  • ***THE DIFFERENCE IN DIAMETERS OF THE WATER PUMP PULLEY (4") AND THE CRANK PULLEY (3.5") GIVES A 15% REDUCTION. WE HAVE 30%, 15%, & 0% (1 TO 1) KITS AVAILABLE. WE RECOMMEND THAT YOU STAY CLOSE TO YOUR STOCK REDUCTION, HOWEVER, IN SOME CASES, YOUR SPECIFIC APPLICATION MIGHT CALL FOR YOU TO SPEED UP OR SLOW DOWN THE WATER FLOW TO COOL THE ENGINE BETTER. DIFFERENT SIZE PULLEYS WILL ACCOMPLISH THIS WHEN NECESSARY



    • Click Picture
    For Larger View

  • 93mm (138mm BOLT PATTERN) DENSO ALTERNATOR DIAGRAM: (THIS IS INCLUDED TO SHOW THE STYLE OF ALTERNATOR THAT WILL FIT THIS KIT. THIS KIT DOESNT INCLUDE THE ALTERNATOR ITSELF)



    • Click Picture
    For Larger View
