INTAKE MANIFOLD,LS1/2/6,FRONT 102MM,LP,FAB,BLACK

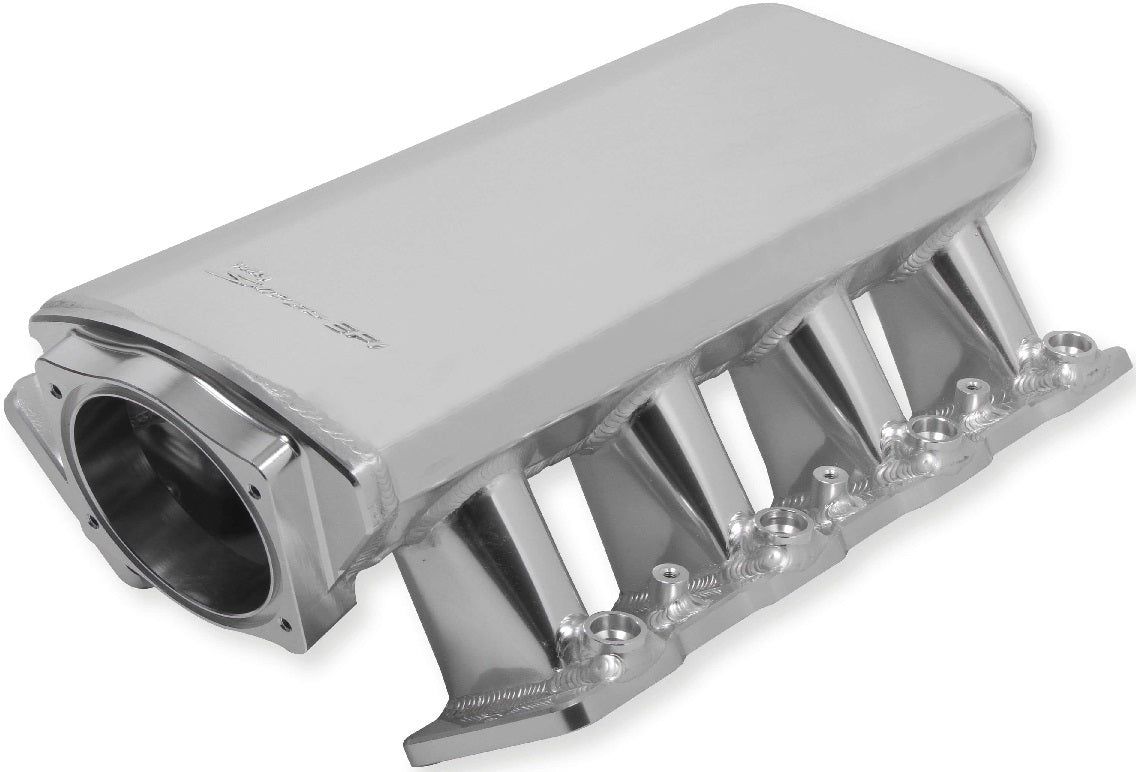

BRAND NEW HOLLEY SNIPER EFI LOW-PROFILE METAL FABRICATED INTAKE MANIFOLD, SILVER FINISH, 102MM THROTTLE BORE, COMPATIBLE WITH GM LS1/LS2/LS6 ENGINES

HOLLEY SNIPER FABRICATED MANIFOLDS CONTINUES TO PUSH THE AFTERMARKET BY INTRODUCING LOW PROFILE INTAKES FOR GM LS ENGINES. THESE INTAKES ARE A GOOD LOOKING, PERFORM WELL, AND OFFER AN EXTREMELY GOOD VALUE FOR A PERFORMANCE SHEET METAL STYLE INTAKE MANIFOLD FOR THE VERY POPULAR GM LS ENGINE FAMILY.

EACH MANIFOLD IS READY TO BOLT ON OUT OF THE BOX & DESIGNED TO ACCEPT OUR SNIPER HIGH-FLOW THROTTLE BODIES AND INCLUDE HIGH FLOW FUEL RAIL KIT. THIS UPDATED DESIGN WAS DEVELOPED TO ALLOW THE END USER TO FIT UNDER A STOCK HOOD. EACH MANIFOLD IS PRECISION FIXTURED AND WELDED FOR A PERFECT FIT AND MAXIMUM STRUCTURAL INTEGRITY.

NOTE: THIS INTAKE IS COMPATIBLE WITH STOCK LS HEADS. THE USE OF SOME AFTERMARKET CYLINDER HEADS MAY RESULT IN PORT MISALIGNMENT.

FEATURES:

• SILVER FINISH CREATES HIGH IMPACT UNDER-HOOD STYLING
• 3MM (1/8") THICK T6061 SHEET ALUMINUM CONSTRUCTION FOR MAX DURABILITY
• 102MM THROTTLE BORE OPENING FOR INCREASED AIR FLOW

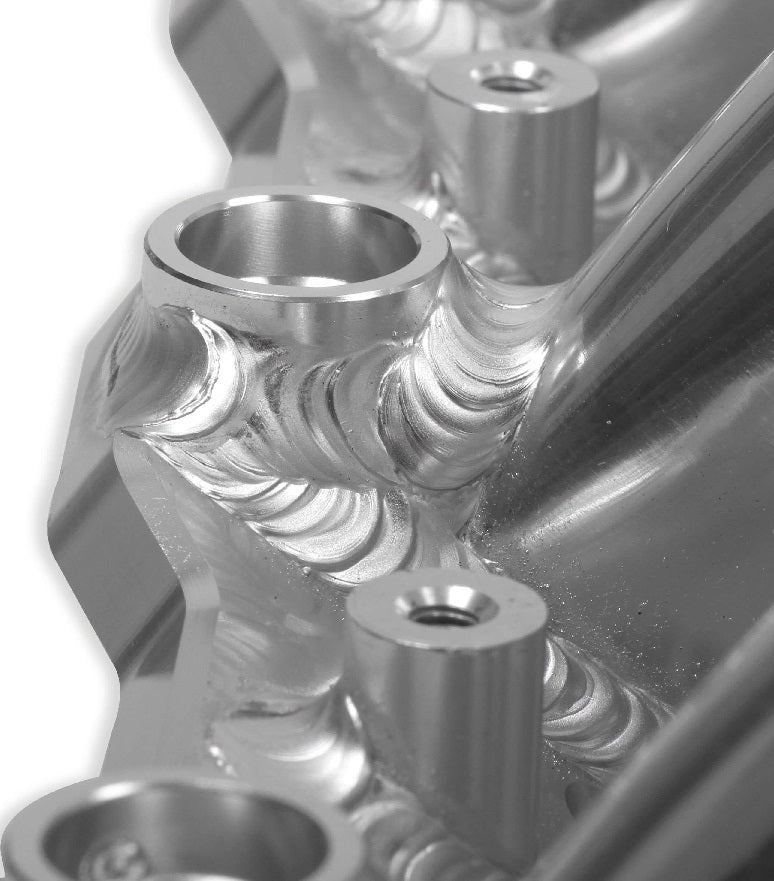

• 100% TIG WELDED FOR STRENGTH & DURABILITY
• INCLUDES 3/8" FUEL RAIL KITS (SNIPER LOGO LASER ENGRAVED)
• LOW PROFILE, COMPACT DESIGN (OVERALL 1.875 INCHES SHORTER) ALLOWS FITMENT UNDER STOCK HOODS ON CORVETTE, CАMАRO, FIREBIRD, GТO & OTHERS WHERE HOOD CLEARANCE IS AT MINIMUM

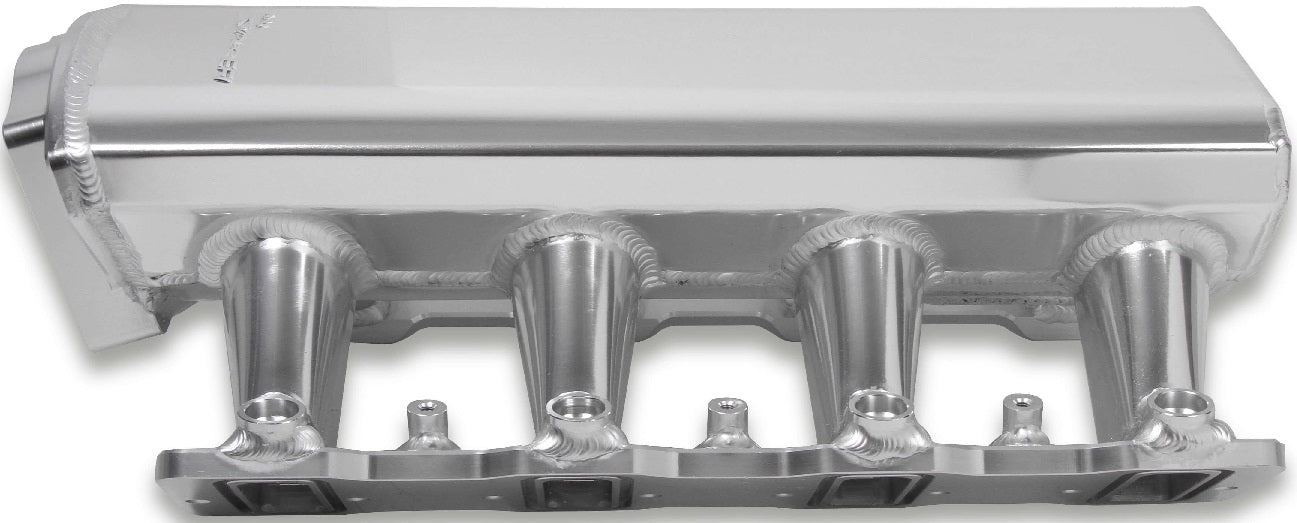

• INTAKE RUNNERS WITH TAPERED TOP IS DESIGNED TO INCREASE AIR VELOCITY & MORE EVENLY DISTRIBUTE AIRFLOW TO ALL 8 CYLINDERS IMPROVING PERFORMANCE/THROTTLE RESPONSE

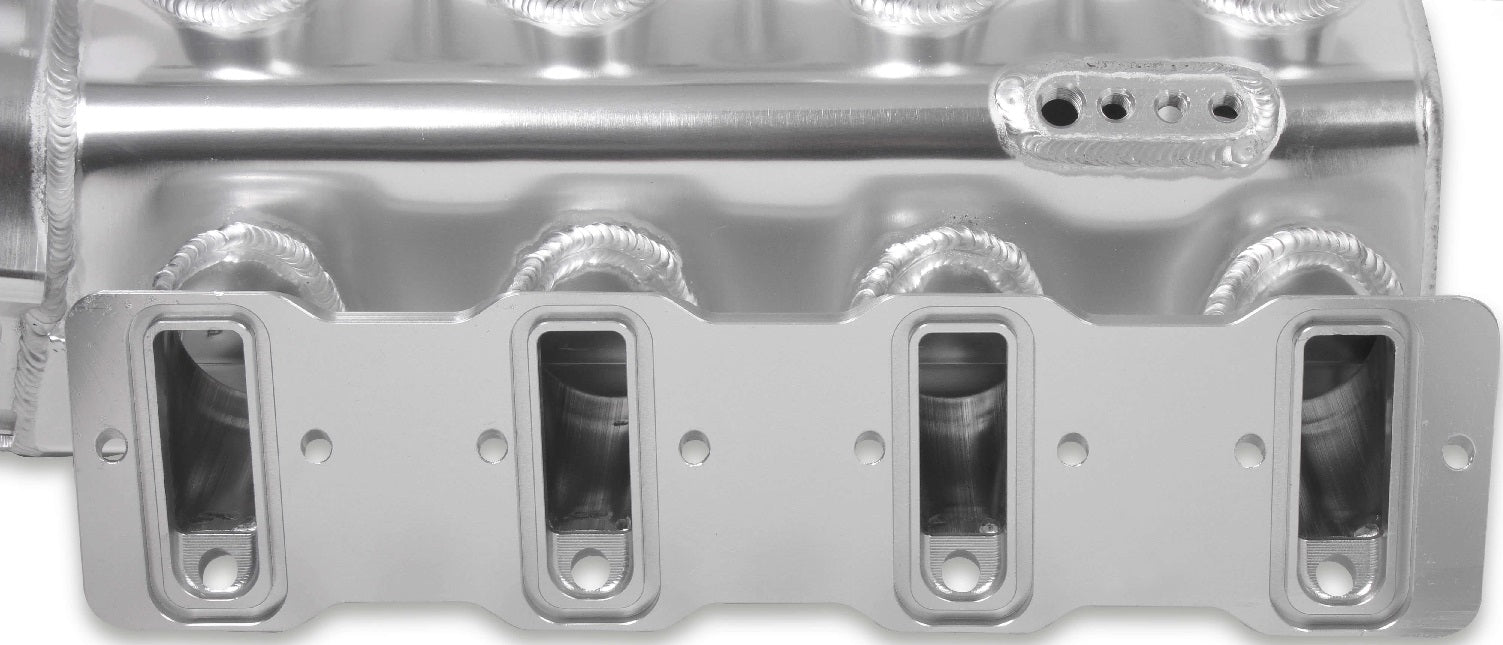

• PROVISION FOR MAP SENSOR LOCATED ON REAR OF PLENUM
• INCLUDES ALL GASKETS AND HARDWARE FOR INSTALLATION
• ONLY ACCEPTS EV1 STYLE INJECTORS

SPECS:

• BRAND: HOLLEY SNIPER EFI
• COLOR: SILVER
• CONSTRUCTION: FABRICATED
• ENGINE: GM LS1/LS2/LS6
• FRONT HEIGHT: 6.392 INCH
• FUEL SYSTEM TYPE: EFI
• INJECTOR STYLE PROVISION: EV1
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 5.684 INCH
• RECOMMENDED USE: FORCED INDUCTION
• RPM POWER BAND: 1500-6500 RPM
• RUNNER LENGTH: 4.527" (115MM)
• THROTTLE BORE: 102MM
• VACUUM PORTS: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
