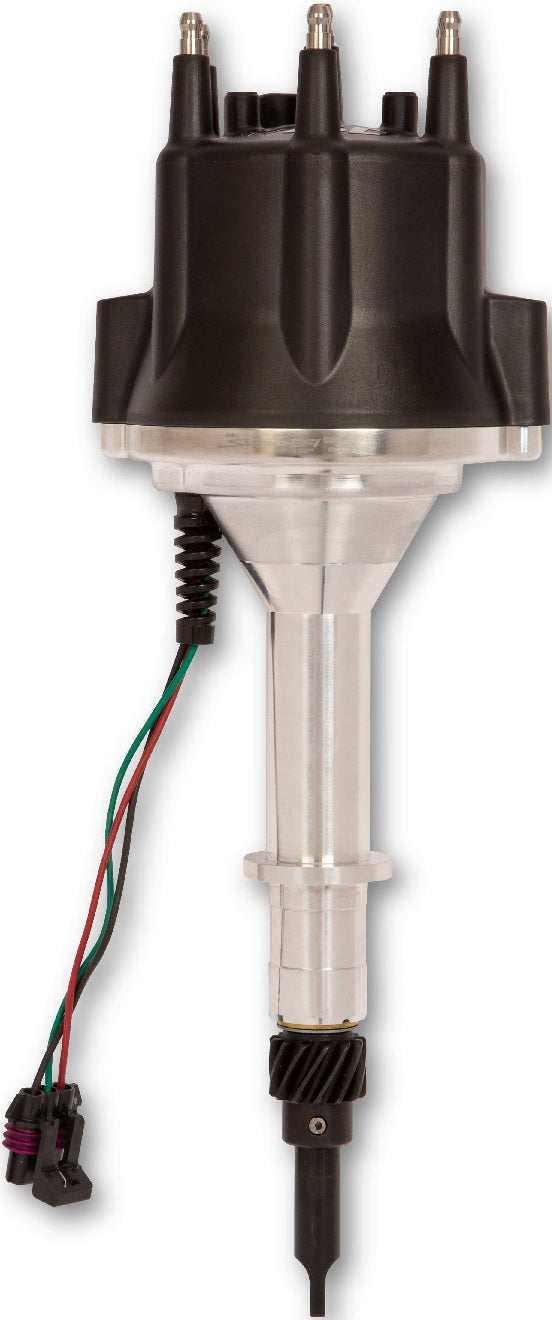

SNIPER EFI,HYPERSPARK,DISTRIBUTOR,JEEP 258

BRAND NEW HOLLEY SNIPER EFI HYPERSPARK DISTRIBUTOR, COMPATIBLE WITH 1971-1983 JEEP CJ5

HYPERSPARK IGNITION, FROM SNIPER EFI IS DESIGNED TO EASILY ADD IGNITION TIMING CONTROL TO NEARLY ANY SNIPER EFI INSTALL. THE HOUSING IS BILLET ALUMINUM STUFFED WITH A HALL EFFECT CRANK SIGNAL SENSOR FOR A NOISE-FREE RPM SIGNAL TO YOUR SNIPER EFI ECU. THE COMPLETE SYSTEM CONSISTS OF A HIGH OUTPUT HYPERSPARK CD IGNITION BOX (PART #556-151) THAT PRODUCES 535 VOLTS OF PRIMARY VOLTAGE ALL THE WAY UP TO 12,000 RPM & A HYPERSPARK IGNITION COIL (PART #556-152) THAT SENDS 45,000 VOLTS TO THE PLUG.

NOTE: HYPERSPARK CD IGNITION BOX PART #556-152 AND IGNITION COIL PART #556-151 SOLD SEPARATELY.

COMPATIBLE WITH:

• JEEP:
• 1971-1983 CJ5
• 1971-1975 CJ6
• 1976-1986 CJ7

FEATURES:

• HALL EFFECT CRANK TRIGGER SENSOR HOUSING PROVIDES A NOISE-FREE RPM SIGNAL TO SNIPER ECU
• RECOMMENDED FOR SNIPER EFI BBD, 550-858,550-859 OR 550-860
• BILLET DISTRIBUTOR HOUSING PROVIDES CORROSION RESISTANCE
• PATENTED CLEAR INSTALL CAP ELIMINATES ANY CONFUSION WHILE INSTALLING THE DISTRIBUTOR
• PLUG & PLAY WAY TO ADD TIMING CONTROL TO A SNIPER EFI INSTALL

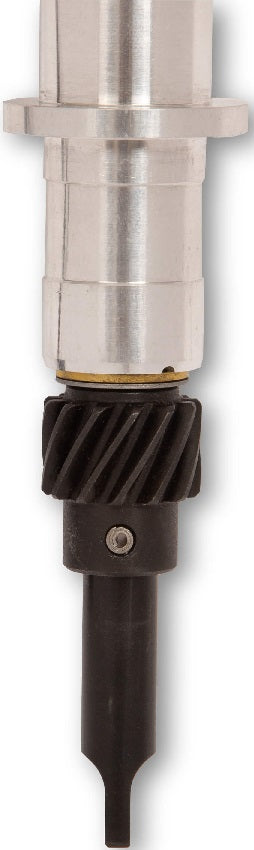

• DISTRIBUTOR SHUTTER WHEEL IS PINNED & WELDED TO THE SHAFT
• INCLUDES WIRE RETAINER FOR A CLEAN INSTALL
• COMES WITH CAST GEAR INSTALLED - CONTACT CAMSHAFT MANUFACTURER FOR RECOMMENDED GEAR MATERIAL

SPECS:

• BRAND: HOLLEY SNIPER EFI
• COLOR: SHINY
• EMISSION CODE: 3
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
