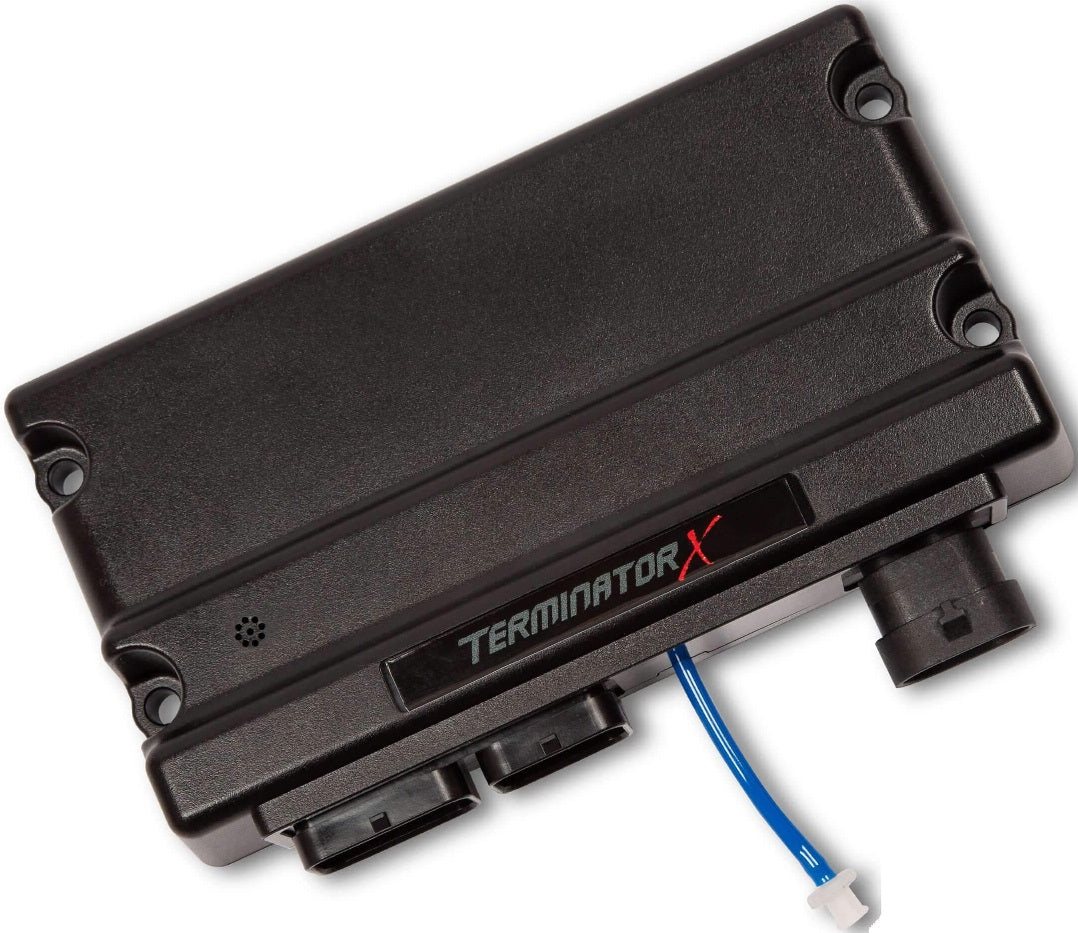

TERMINATOR X ECU

BRAND NEW HOLLEY TERMINATOR X SERVICE ELECTRONIC CONTROL UNIT

THESE STANDALONE TERMINATOR X ECUS (ELECTRONIC CONTROL UNIT) ARE INTENDED TO BE USED AS SERVICE COMPONENTS FOR YOUR TERMINATOR X EFI INSTALLATION. THE TERMINATOR X ECU FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR & 4 PROGRAMMABLE INPUTS & OUTPUTS. THE INPUTS & OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, OR PROGRESSIVE NITROUS CONTROL.

THE TERMINATOR X MAX ECU FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR, ELECTRONIC TRANSMISSION CONTROL, DRIVE-BY-WIRE THROTTLE BODY CONTROL & 4 PROGRAMMABLE INPUTS & OUTPUTS. THE INPUTS & OUTPUTS ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE.

FEATURES:

• OEM (ORIGINAL EQUIPMENT MANUFACTURER) INJECTORS SUPPORTED, WITH PART NUMBERS PROVIDED IN THE HANDHELD WIZARD, OR SOFTWARE
• GENUINE BOSCH LSU 4.9 WIDEBAND CONTROL (WILL NOT WORK WITH LSU 4.2 OXYGEN SENSORS)
• 8 BUILT-IN MULTI-COLOR DIAGNOSTIC LEDS ALLOW YOU TO QUICKLY IDENTIFY A VARIETY OF POTENTIAL SYSTEM ISSUES, SUCH AS A FAILED TPS (THROTTLE POSITION SENSOR) AUTOSET - FAULTY CRANK OR CAM SENSORS, OR POTENTIAL OXYGEN SENSOR ISSUES
• BUILT IN 1BAR MAP (MANIFOLD AIR PRESSURE) SENSOR. ON BOOSTED APPLICATIONS, YOU CAN DISABLE THE INTERNAL MAP SENSOR & UTILIZE AN EXTERNAL MAP SENSOR
• 4 INPUTS - 12V, GROUND, 5V & FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE (FUEL & OIL PRESSURE INPUTS ARE PRE-TERMINATED)
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT & MORE
• GM LS & LT, FORD COYOTE & MOPAR GEN V DRIVE-BY WIRE THROTTLE BODY CONTROL (TERMINATOR X MAX ONLY)
• GM 4L60 & 4L80 & FORD 4R70W TRANSMISSION CONTROL (TERMINATOR X MAX ONLY)
• BOOST CONTROL - BOOST VS TIME, BOOST VS GEAR, BOOST VS RPM, BOOST VS SPEED, BOOST SAFETIES
• NITROUS CONTROL - SINGLE CHANNEL OF WET OR DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES, & TARGET CLOSED LOOP AFR
• ADVANCED TABLES - 4X 1D TABLES, 1X 1D PER GEAR TABLE, 4X 2D TABLES, 1X 2D PER GEAR TABLE
• FREE EFI TUNING SOFTWARE FOR COMPLETE CONTROL OF YOUR TERMINATOR X POWER PLANT

SPECS:

• BRAND: HOLLEY EFI
• PRODUCT TYPE: ECU
