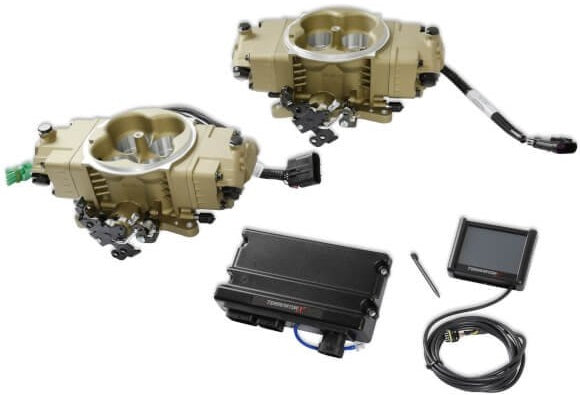

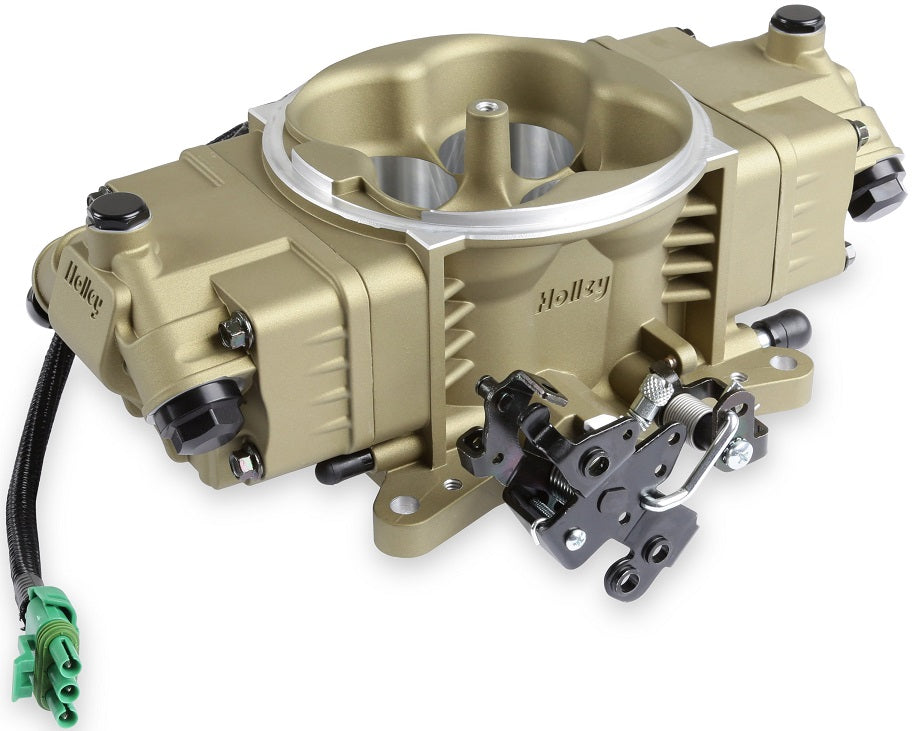

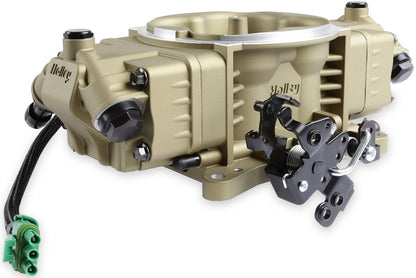

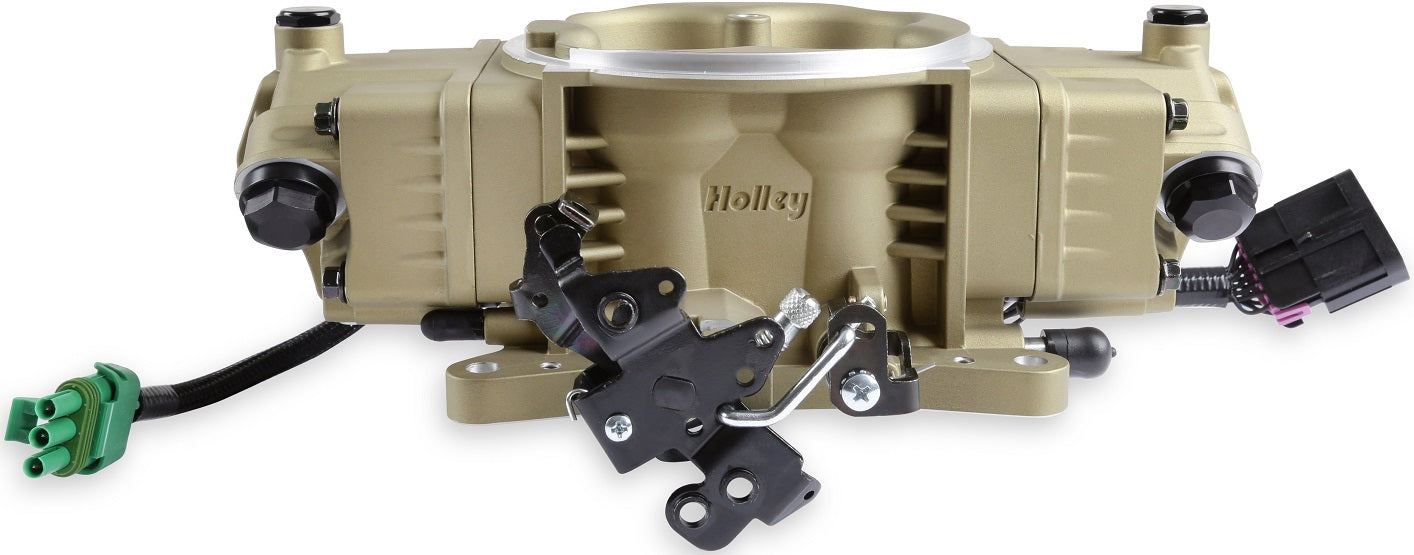

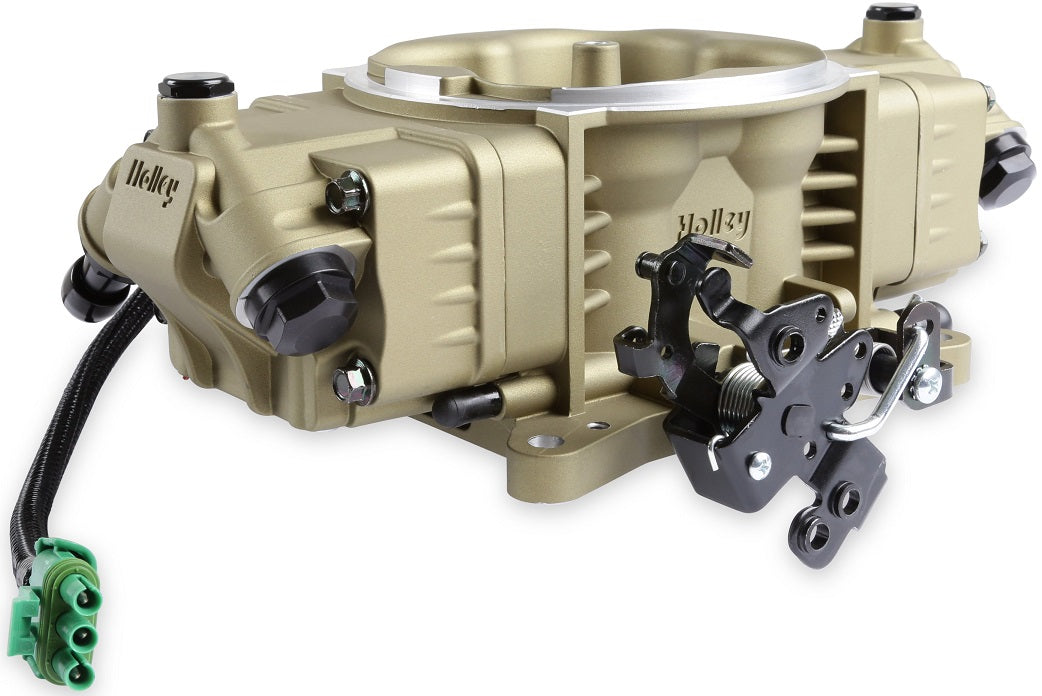

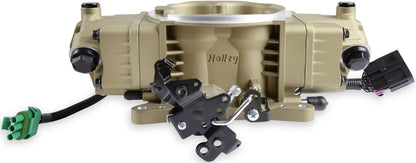

TERMINATOR X STEALTH,4150 X 2,8 INJ,GOLD

BRAND HOLLEY TERMINATOR EFI X STEALTH 4150 2X4, GOLD FINISH, 8 INJECTORS, 800-1500 HP, 650 HP NATURALLY ASPIRATED

THE TERMINATOR X STEALTH 4150 2X4 EFI SYSTEMS FROM HOLLEY FEATURES 8, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 1500 HP NATURALLY ASPIRATED OR 1250 HP ON FORCED INDUCTION APPLICATIONS. THE TERMINATOR X ЕCU IS CAPABLE OF FUEL MAP SELF-LEARNING AND IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY & WIDE-OPEN THROTTLE HORSEPOWER.

FEATURES:

• BOLT ON 2X4 4150 FLANGE CARBURETOR REPLACEMENT
• SUPPORTS UP TO 1500 HP NATURALLY ASPIRATED OR 1250 HP FORCED INDUCTION WITH 8 - 100 LB/HR INJECTORS
• INTERNAL 1BAR MAP SENSOR, BUILT INTO THE TERMINATOR X ЕCU
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI
• INTEGRATED IGNITION TIMING CONTROL
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD (ANSWER A FEW QUESTIONS ABOUT YOUR ENGINE AND IT CREATES THE BASE MAP, THEN STARTS TUNING ON ITS OWN!) - NO LAPTOP REQUIRED!
• SELF-TUNING ЕCU
• THE INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN!
• OEM STYLE TPS/IAC AND FUEL PRESSURE REGULATOR, FOR YEARS OF DEPENDABLE SERVICE
• INCLUDED WELD-IN O2 SENSOR BUNG FOR THE EXHAUST ENSURES A LEAK FREE OXYGEN SENSOR INSTALLATION
• PLUG & PLAY WITH HOLLEY EFI ACCESSORIES

SPECS:

• BRAND: HOLLEY EFI
• COLOR: GOLD
• IGNITION TYPE: UNIVERSAL
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EFI SYSTEM HERE.
