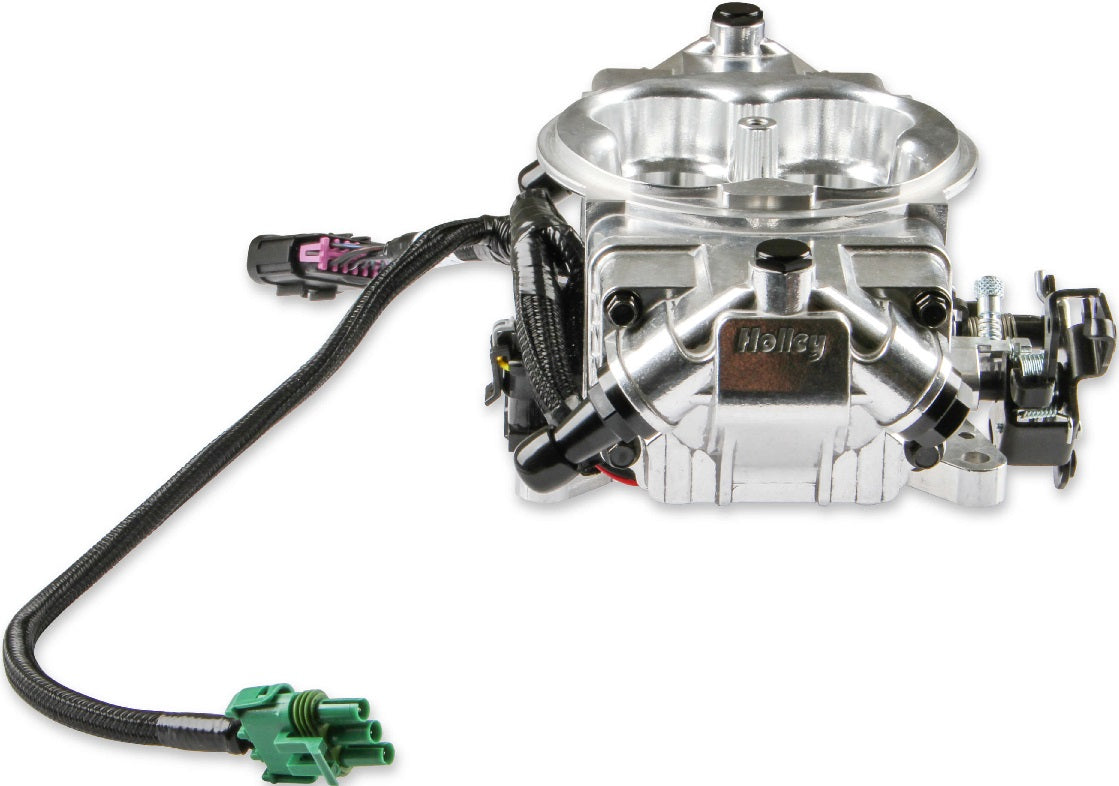

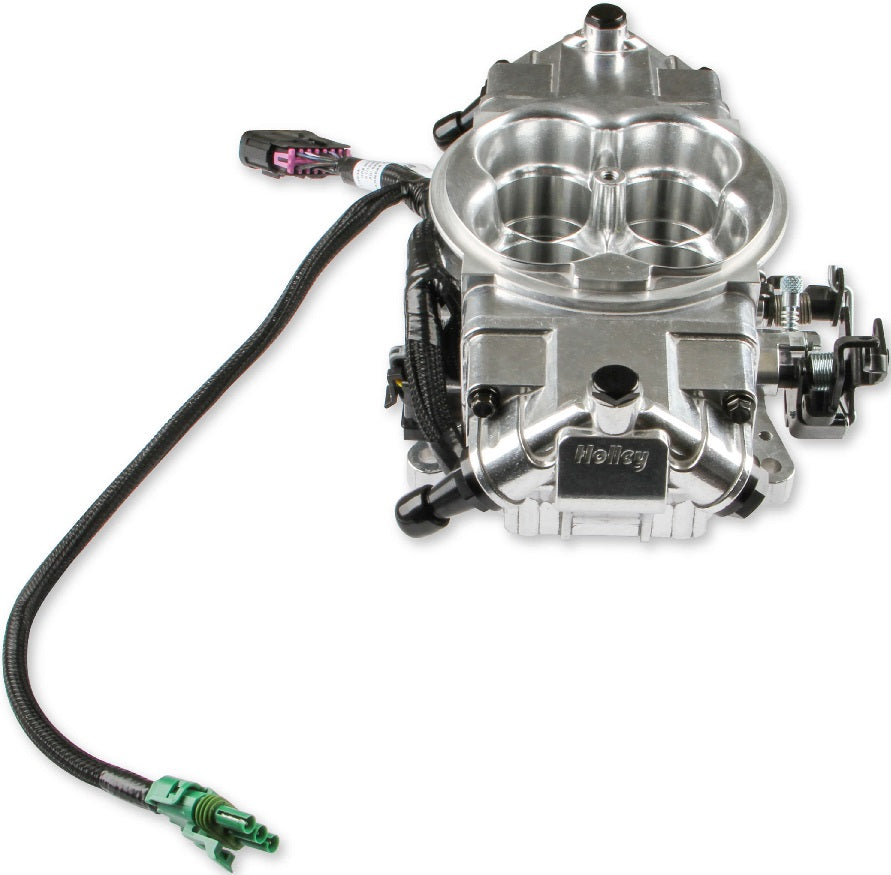

TERMINATOR XMAX STEALTH,4150,4INJ,58X,TRANSMISSION,SHINY

BRAND NEW HOLLEY TERMINATOR X MAX STEALTH 4150 58X LS, SHINY FINISH, COMPATIBLE WITH GM 4L60 & 4L80 TRANSMISSIONS

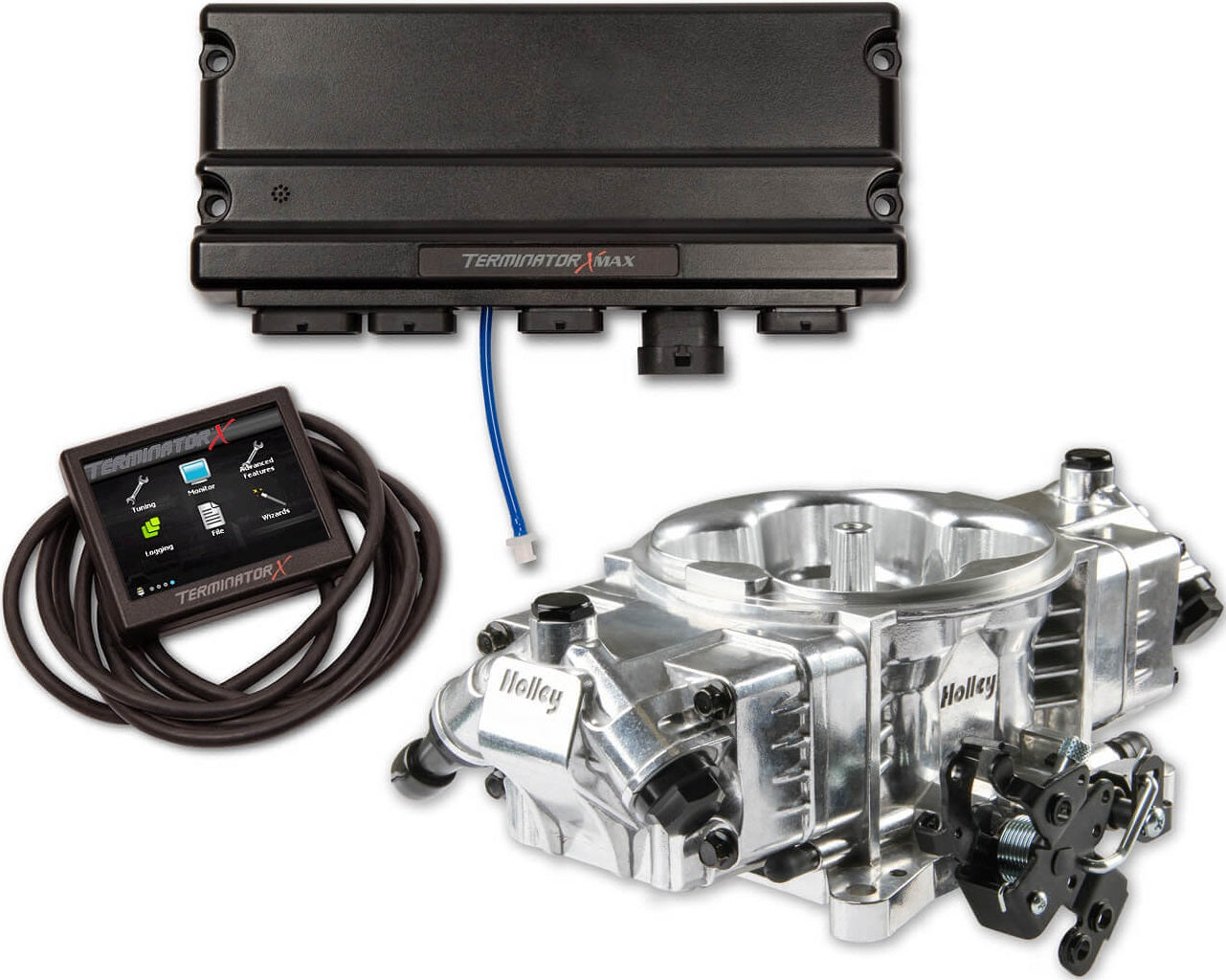

THE TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. THE TERMINATOR X ЕCU FEATURES FUEL MAPS THAT SELF-LEARN AND INTEGRATED IGNITION TIMING CONTROL, YIELDING IMPROVED IDLE STABILITY, DRIVABILITY, AND HORSEPOWER AT WIDE-OPEN THROTTLE!

INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 AND FORD C4/C6 APPLICATIONS. THESE KITS PROVIDE PLUG AND PLAY TRANSMISSION CONTROL FOR GM 4L60 & 4L80 TRANSMISSIONS.

FEATURES:

• SUPPORTS UP TO 650HP WITH 4 - 100LB./HR. INJECTORS
• PROVIDES PLUG & PLAY TRANSMISSION CONTROL FOR GM TRANSMISSIONS
• INTERNAL 1BAR MAP SENSOR, BUILT INTO THE TERMINATOR X ЕCU
• ALL OF THE WIRING EXITS BELOW THE FUEL INJECTOR BOWLS, FOR A COMPLETELY STEALTH INSTALLATION
• AIR ENTRY MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, BASE PRESSURE OF 58.5 PSI, SUCH AS 12-886
• INTEGRATED IGNITION TIMING CONTROL PLUG AND PLAY WITH FACTORY LS COIL SUB HARNESS AND OEM LS COILS - NO EXTERNAL BOXES/MODULES NEEDED TO RUN COIL NEAR PLUG
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, ТUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD
• 4 INPUTS - 12V, GROUND, 5V, AND FREQUENCY, FOR THINGS SUCH AS ADDITIONAL PRESSURE SENSORS, OR ACTIVATION TRIGGERS FOR NITROUS ACTIVATION, OR A TRANS BRAKE (FUEL AND OIL PRESSURE INPUTS ARE PRE-TERMINATED)
• 4 OUTPUTS - GROUND, PWM - , FOR ACCESSORIES SUCH AS; FANS, BOOST CONTROL, NITROUS CONTROL, IAC KIT ETC.
• THE INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
• OEM STYLE TPS/IAC
• COMPATIBLE WITH HOLLEY EFI DIGITAL DASHES, GAUGES AND FUEL SYSTEM ACCESSORIES

SPECS:

• BRAND: HOLLEY EFI
• COLOR: SHINY
• IGNITION TYPE: GM LS 58X
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM
• TERMINATOR LS OPTIONS: FUEL, SPARK, TRANSMISSION

YOU CAN VIEW AND DOWNLOAD THE QUICK START GUIDE FOR THIS FUEL INJECTION SYSTEM HERE.
