TERMINATOR X STEALTH 4150,4 INJ,BLACK

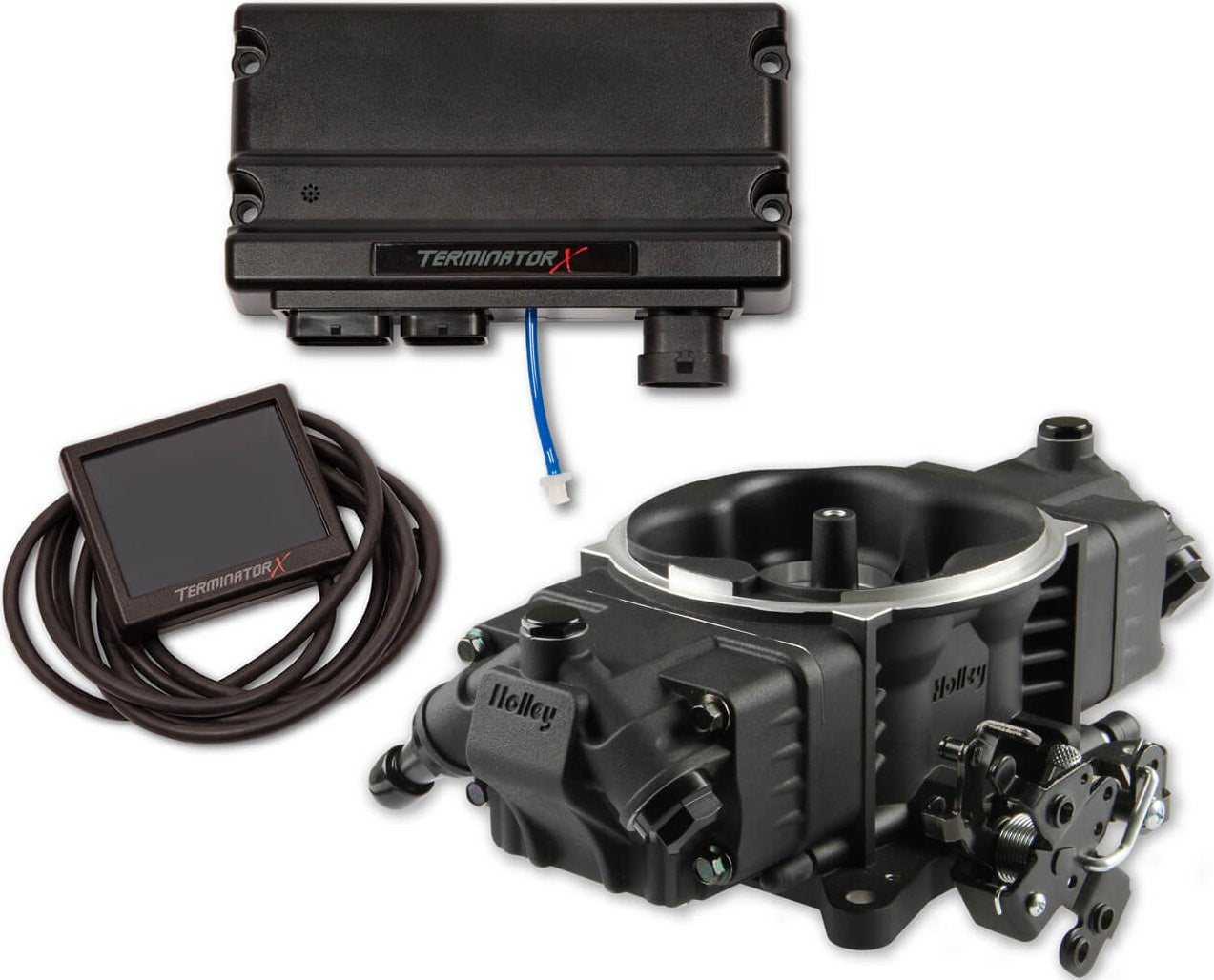

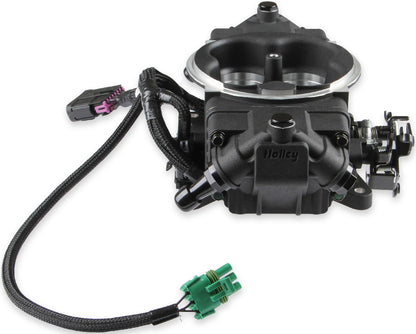

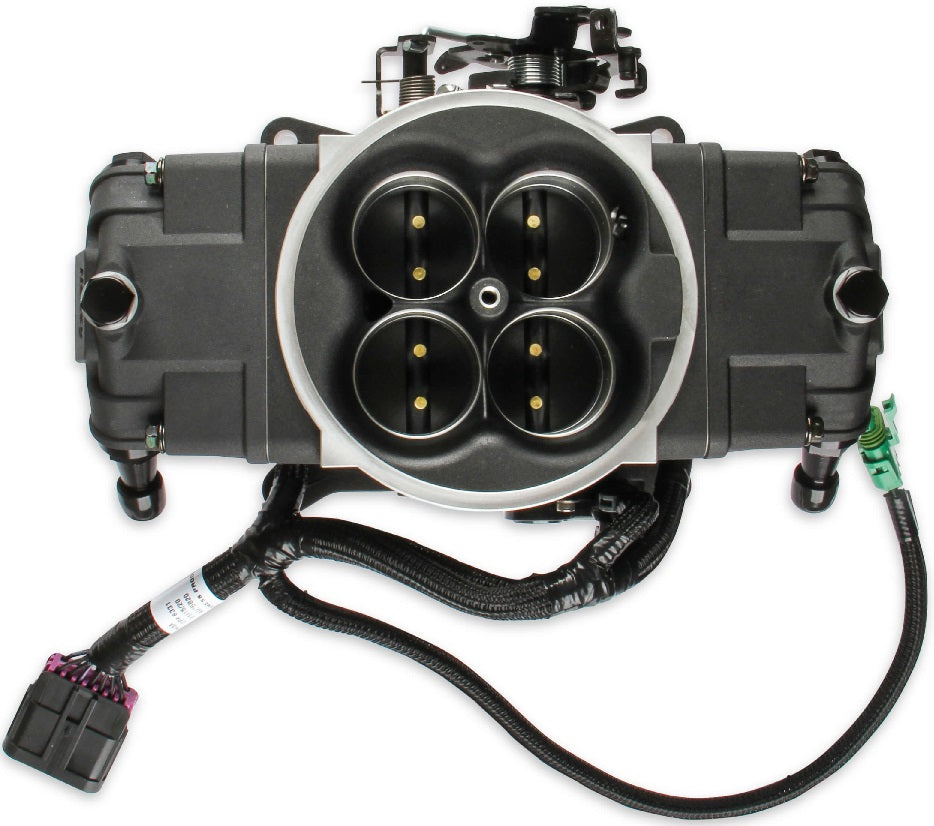

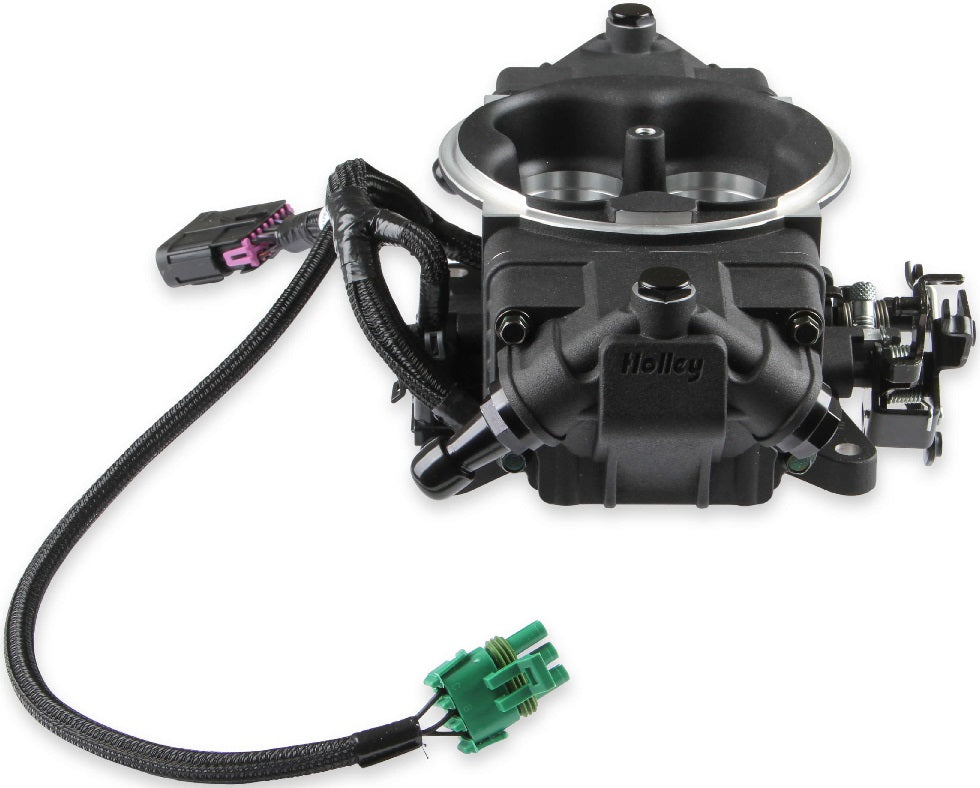

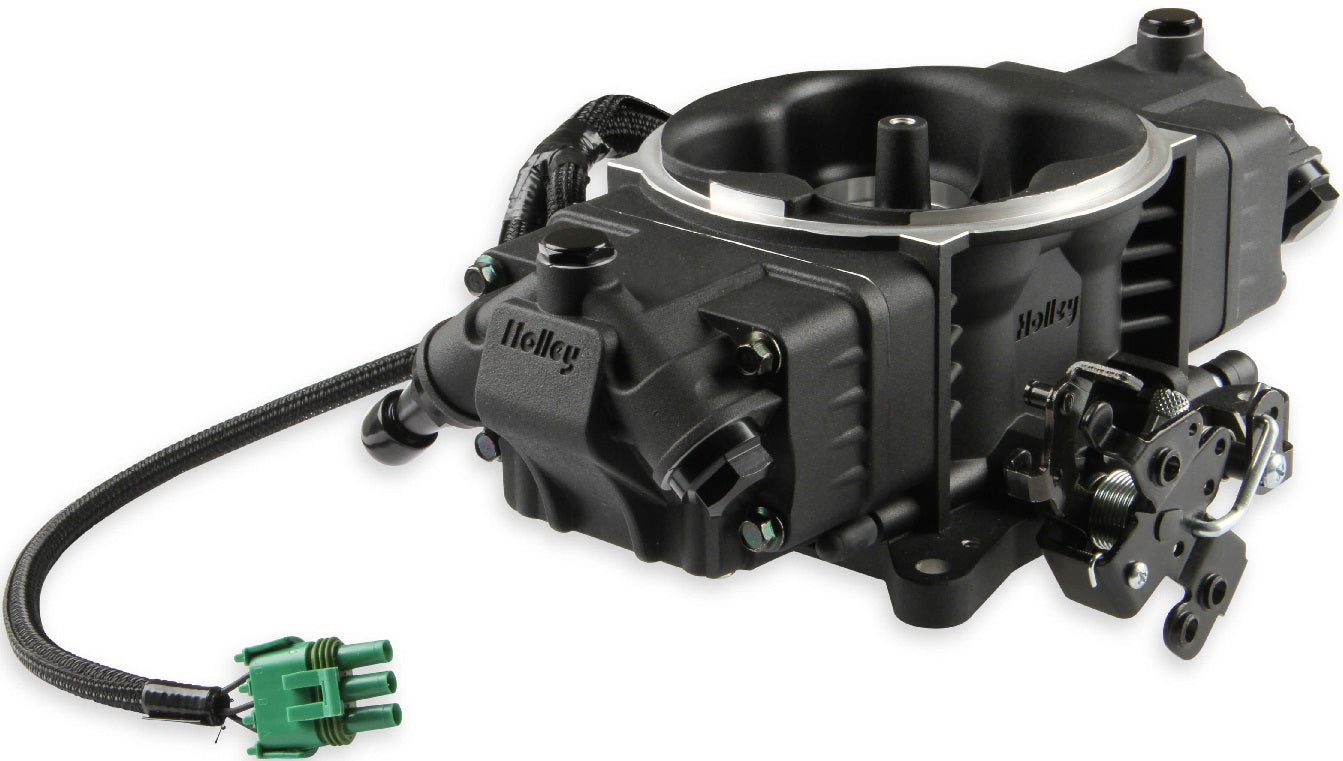

BRAND NEW HOLLEY TERMINATOR X STEALTH 4150 EFI SYSTEM, BLACK, 650 HP WITH FOUR 100 LB PER HR INJECTORS

THE TERMINATOR X STEALTH 4150 EFI SYSTEM FROM HOLLEY FEATURES 4, 100LB/HR FUEL INJECTORS CAPABLE OF SUPPORTING UP TO 650 HP NATURALLY ASPIRATED OR 600 HP ON FORCED INDUCTION APPLICATIONS. THE TERMINATOR X ECU IS CAPABLE OF FUEL MAP SELF-LEARNING & IGNITION TIMING CONTROL, IMPROVING IDLE STABILITY, DRIVABILITY & WIDE-OPEN THROTTLE HORSEPOWER!

STEALTH 4150 ALSO INCLUDES TRANSMISSION KICK DOWN PROVISIONS FOR GM TH350/400, 200R4/700R4 & FORD C4/C6 APPLICATIONS.

FEATURES:

• BOLT ON 4150 FLANGE CARBURETOR REPLACEMENT
• SUPPORTS UP TO 650HP WITH FOUR 100LB/HR INJECTORS
• INCLUDES HIGH PRESSURE FUEL CROSSOVER LINE
• ALL OF THE WIRING EXITS BELOW THE REAR FUEL INJECTOR COVER, FOR A COMPLETELY STEALTH INSTALL
• TIMED SPARK PORT FOR VACUUM ADVANCED DISTRIBUTORS LOCATED UNDER THE FRONT FUEL BOWL, FOR EASY ACCESS TO THE DISTRIBUTOR
• AIR ENTRY IS MACHINED TO FIT MOST STOCK STYLE AIR CLEANERS WITH AIR CLEANER LOCATOR PROVISIONS
• EXTERNAL FUEL PRESSURE REGULATOR REQUIRED, SET TO A BASE PRESSURE OF 58.5 PSI, LIKE HOLLEY PART # 12-886
• INTEGRATED IGNITION TIMING CONTROL IMPROVES IDLE STABILITY, FUEL ECONOMY, AND WIDE OPEN THROTTLE PERFORMANCE
• HIGH RESOLUTION FULL COLOR TOUCHSCREEN FOR INITIAL SETUP, TUNING & GAUGE DISPLAYS
• SIMPLE CALIBRATION WIZARD - NO LAPTOP REQUIRED
• INCLUDED GENUINE BOSCH LSU 4.9 WIDEBAND OXYGEN SENSOR PROVIDES REAL-TIME FUEL MAP LEARN
• OEM STYLE TPS/IAC FOR YEARS OF DEPENDABLE SERVICE

SPECS:

• BRAND: HOLLEY EFI
• COLOR: BLACK
• INJECTOR SIZE: 100 LB/HR @ 58.5 PSI
• MAX HORSEPOWER RATING: 650 NATURALLY ASPIRATED
• PRODUCT TYPE: EFI SYSTEM

YOU CAN VIEW AND DOWNLOAD THE QUICK START INSTRUCTION BOOKLETS FOR THIS EFI SYSTEM HERE.
