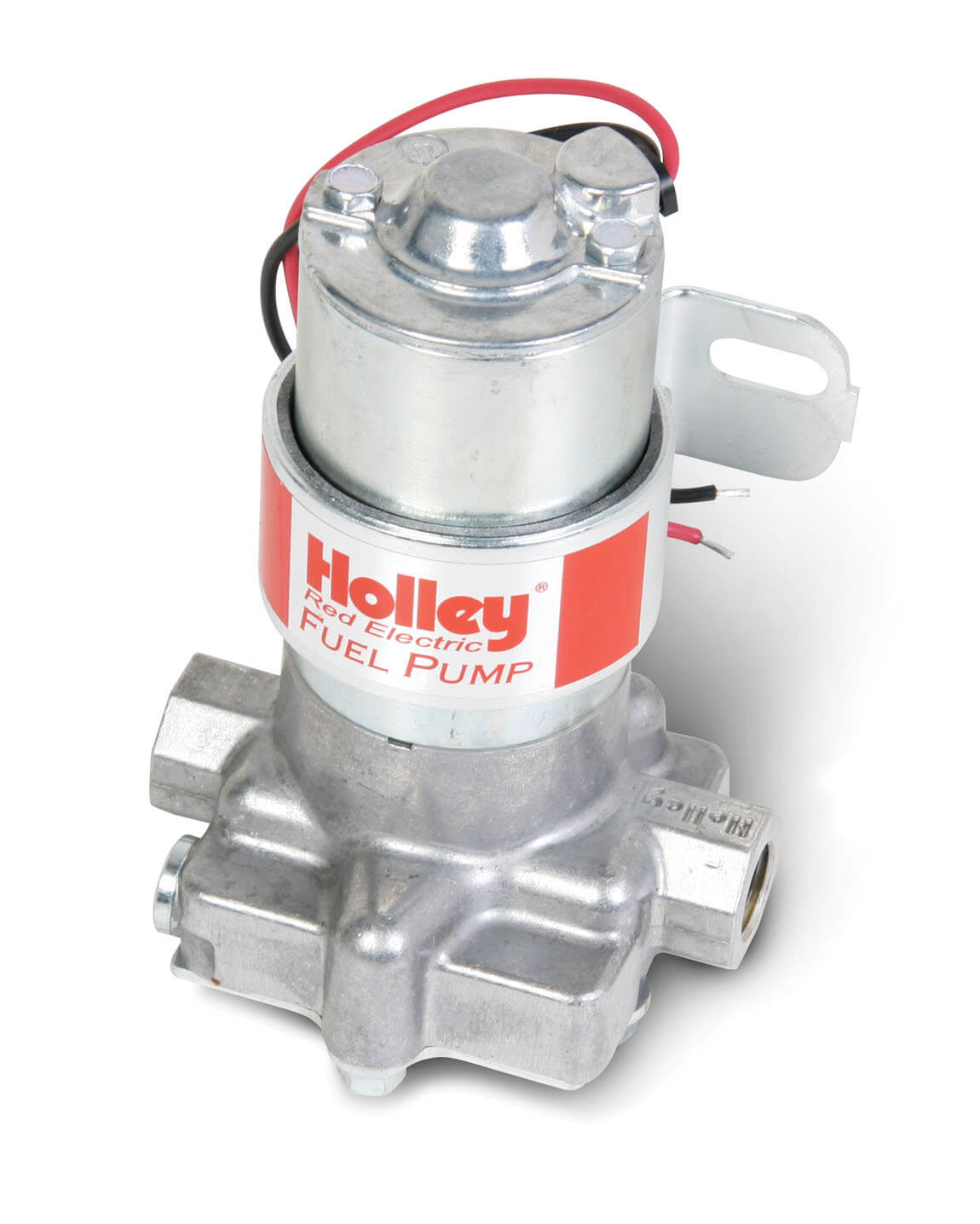

FUEL PUMP,ELECTRIC,RED,97GPH

BRAND NEW HOLLEY 97 GPH RED ELECTRIC FUEL PUMP

THE WORLD FAMOUS RED, BLUE AND BLACK FUEL PUMPS ARE THE MOST RECOGNIZED PERFORMANCE PUMPS OF ALL TIMES. THEY HAVE BEEN POWERING RACING LEGENDS AND STREET ENTHUSIASTS ALIKE SINCE THE EARLY 70S. THEIR TIME PROVEN ROTOR/VANE DESIGN IS KNOWN TO GET THE JOB DONE IN AN AFFORDABLE PACKAGE.

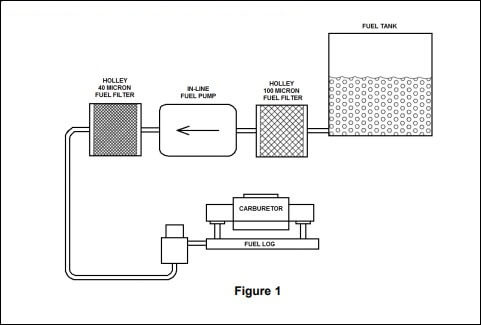

NOTE: SHOULD BE MOUNTED BELOW THE FUEL LEVEL OF THE TANK FOR A GOOD GRAVITY FEED ON THE INLET SIDE. RELAY KIT P/N 12-753 RECOMMENDED. THESE ARE TO BE USED WITH 12 VOLT SYSTEMS ONLY.

STREET/STRIP CARBURETED APPLICATIONS COMPATIBLE WITH GASOLINE ONLY.

FEATURES:

• TUMBLE POLISHED BILLET LOOK
• LOWER HOUSING CASTING DESIGNED FOR ENHANCED FUEL FLOW
• MAXIMUM PRESSURE IS 7 PSI
• MOTOR DRAWS 2 AMPS CURRENT
• RELAY KIT P/N 12-753 & 7 1/2 AMP FUSE RECOMMENDED
• CONSTANT FUEL FLOW WITH NO PULSATION
• IMPROVED DESIGN FOR STREET/STRIP APPLICATIONS
• NOT DESIGNED TO BE USED ON AIRCRAFT OF ANY TYPE
• DISTINCTIVE RED LOGO

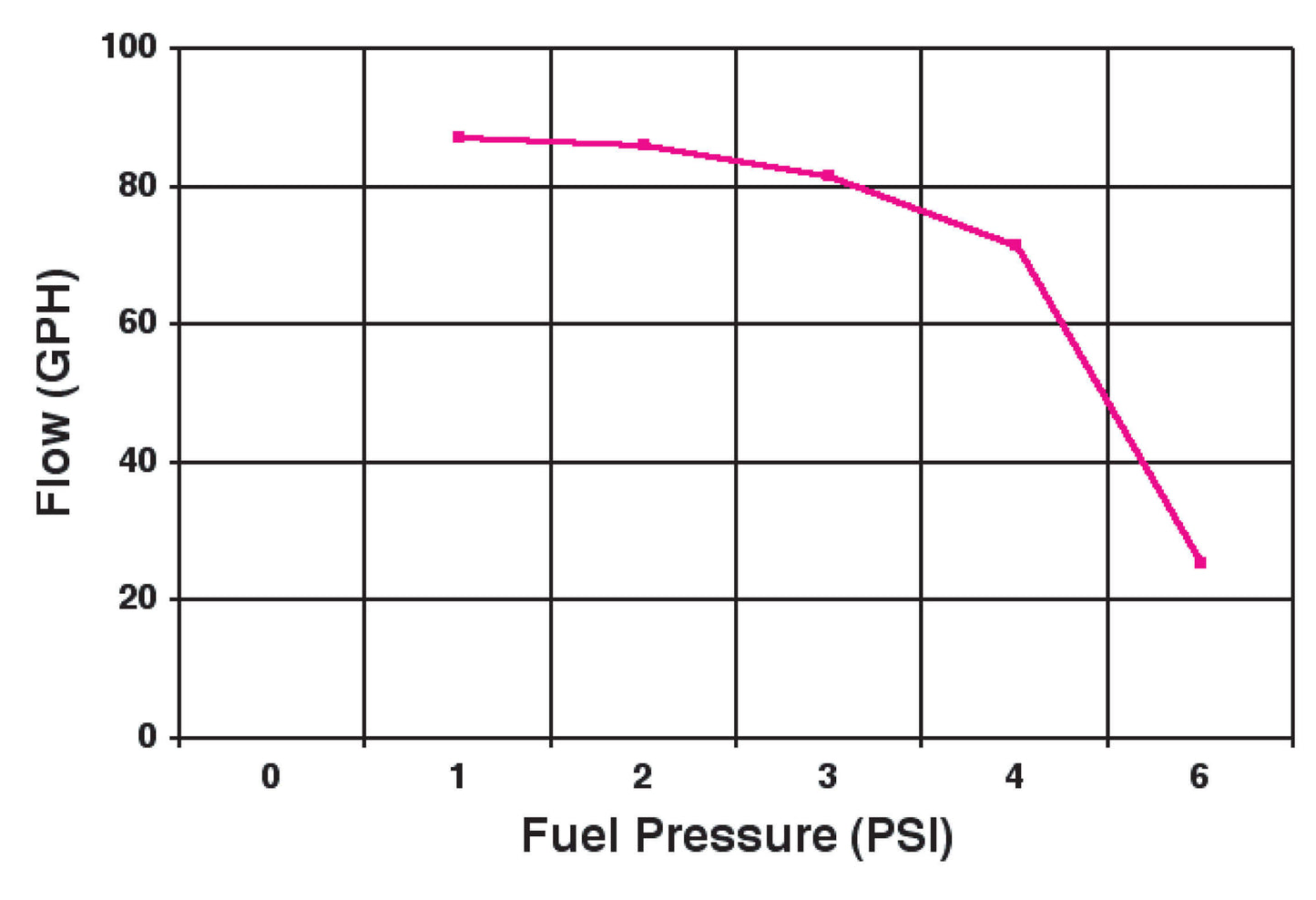

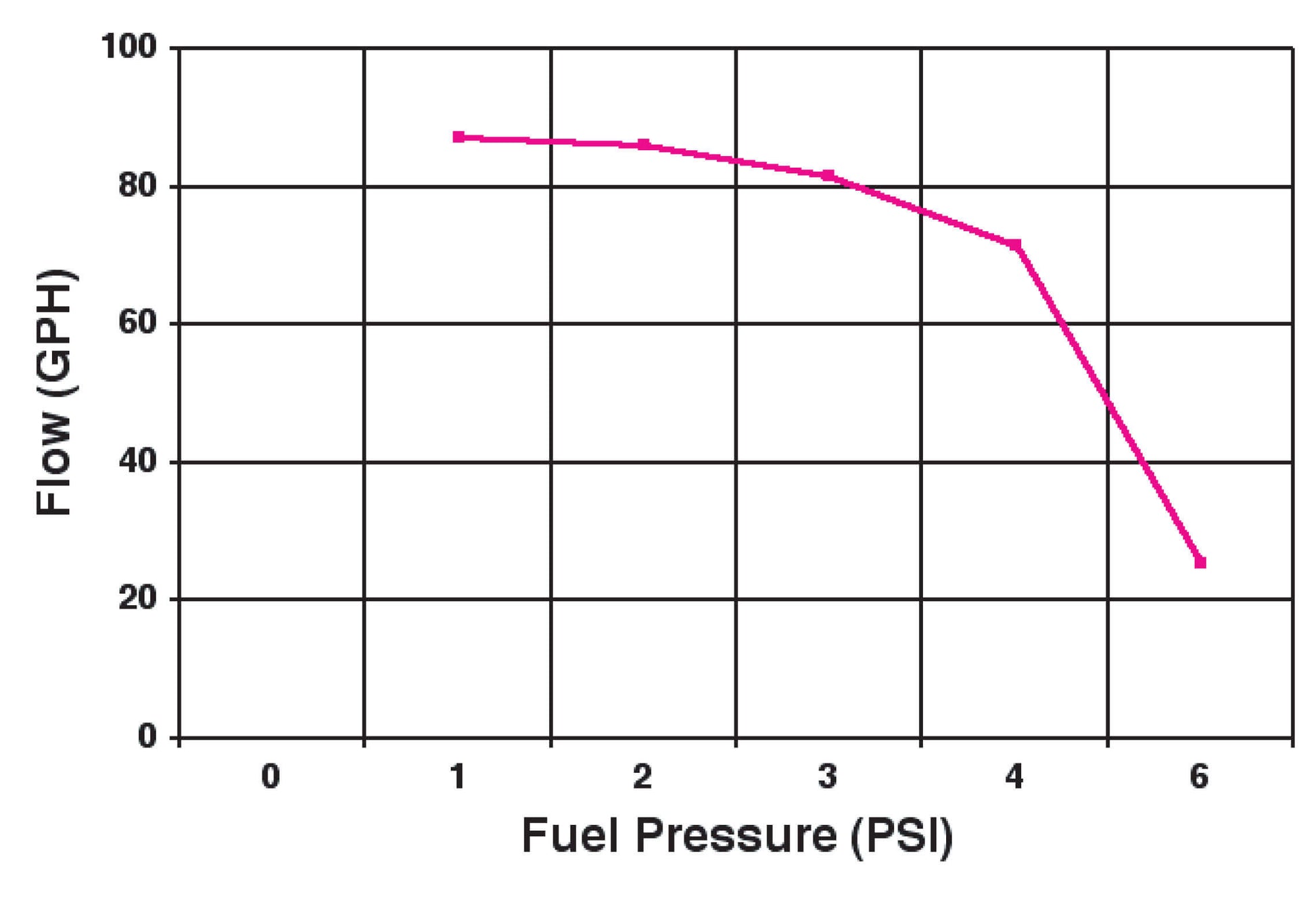

• FLOWS 97 GPH (FREE FLOW)
• FLOWS 71 GPH AT 4 PSI
• REGULATOR IS NOT REQUIRED
• HAS EXTERNALLY ACCESSIBLE PRESSURE RELIEF VALVE (MAX 7 PSI)
• ROTOR/VANE PUMP DESIGN IS MORE TOLERANT OF CONTAMINATED FUELS
• WEIGHS ONLY 2.88 LBS
• NOT DESIGNED OR RECOMMENDED FOR USE WITH FUEL INJECTION SYSTEMS
• INCLUDES MOUNTING BRACKET
• REPAIR KITS ARE READILY AVAILABLE
• CAN BE SERVICED FROM THE PUMP END
• NOT COMPATIBLE WITH ALCOHOL OR METHANOL FUELS
• USE OF SAFETY SHUT-OFF SWITCH, P/N 12-810, STRONGLY RECOMMENDED

SPECS:

• APPLICATION: UNIVERSAL
• BRACKET COLOR: SILVER
• EMISSION CODE: 5
• FREE FLOW GPH: 97
• FREE FLOW LPH: 367
• FUEL SYSTEM: CARBURETED
• FUEL TYPE: GASOLINE
• INLET SIZE: 3/8" NPT
• MATERIAL: ALUMINUM
• MOTOR FINISH: SILVER
• OUTLET SIZE: 3/8" NPT
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: SILVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THIS FUEL PUMP HERE
