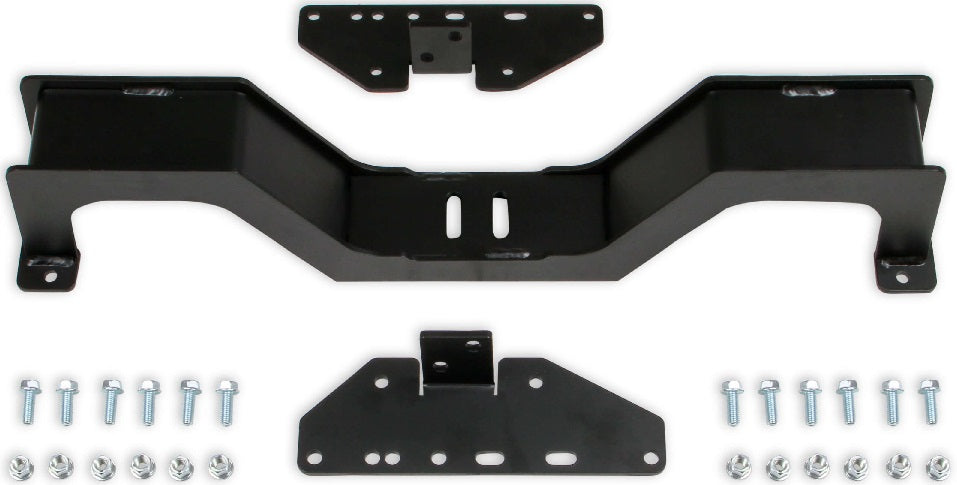

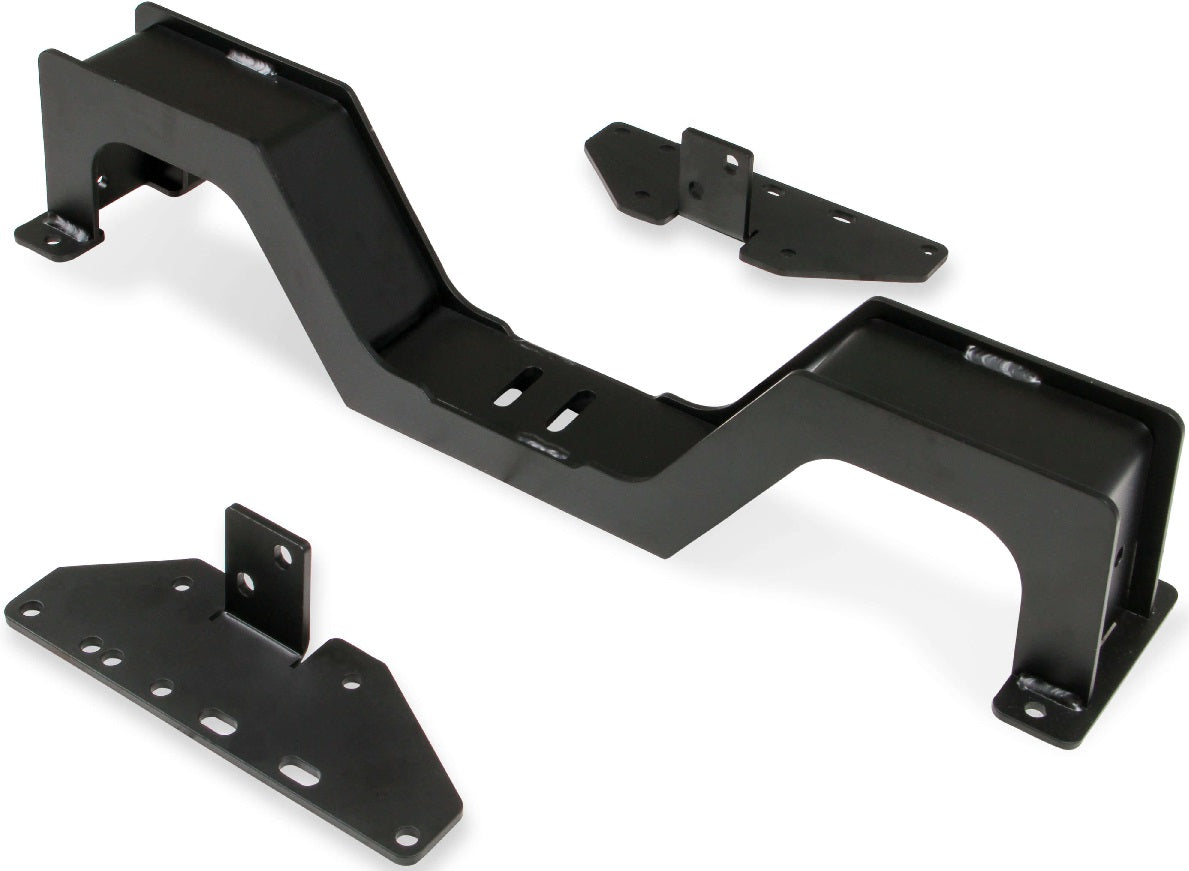

TRANSMISSION CROSSMEMBER,LS/LT SWAP,63-72 C-10,4L80/TH400

BRAND NEW HOOKER BLACKHEART TRANSMISSION CROSSMEMBER, LS/LT SWAP, BLACK FINISH, 4L80 OR TH400 TRANSMISSION, COMPATIBLE WITH 1963-1972 CHEVY C10 PICKUP

THIS BLACKHEART LS/LT ENGINE SWAP TRANSMISSION CROSSMEMBER IS DESIGNED SPECIFICALLY FOR USE WITH HOOKER BLACKHEART ENGINE SWAP BRACKETS & EXHAUST COMPONENTS TO SIMPLIFY YOUR LS/LT SWAP. PROVIDES BOLT-IN INSTALL OF 4L80 OR TH400 TRANSMISSION & UP TO 3" EXHAUST WITHOUT HANGING BELOW FRAME RAILS.

COMPATIBLE WITH:

• CHEVROLET:
• 1963-1972 C10 PICKUP
• GMC:
• 1967-1972 C15/C1500 PICKUP

FEATURES:

• DESIGNED USING CAD (COMPUTER AIDED DESIGN) MODELING/FЕA (FINITE ELEMENT ANALYSIS) ANALYSIS FOR OPTIMAL COMPATIBILITY, STRENGTH, WEIGHT, SAFETY & APPEARANCE
• WELDED STEEL CONSTRUCTION FOR SUPERIOR STRENGTH
• PROVIDES AN OPTIMUM ENGINE/TRANSMISSION INCLINATION ANGLE THAT IS CRITICAL TO OBTAINING SUITABLE U-JOINT WORKING ANGLES, WHEN INSTALLED WITH HOOKER BHS511 ENGINE MOUNTS
• DESIGNED IN CONJUNCTION WITH HOOKER BLACKHEART C10 ENGINE SWAP PARTS TO PROVIDE BOLT-IN INSTALL OF BLACKHEART LS/LT SWAP MANIFOLDS, HEADERS & EXHAUST SYSTEMS
• PROVIDES HIGHEST CLEARANCE AVAILABLE FOR UP TO 3" EXHAUST SYSTEMS ELIMINATING LOWERING CONCERNS

SPECS:

• APPLICATION: 1963-66 GM C10 TRUCKS GEN-V LT SWAP | 1963-66 GM C10 TRUCKS LS SWAP | 1967-72 GM C10 TRUCKS GEN-V LT SWAP | 1967-72 GM C10 TRUCKS LS SWAP
• BRAND: HOOKER BLACKHEART
• MATERIAL: STEEL
• PRODUCT TYPE: TRANSMISSION CROSSMEMBER
• TRANSMISSION: 4L80E & TH400

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CROSSMEMBER HERE.
