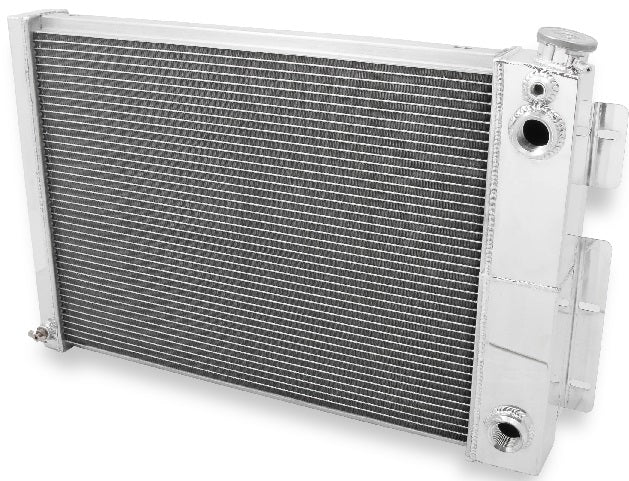

RADIATOR,ALUM,3 ROW,67-69 F-,L

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, DUAL PASS FLOW STYLE, 2.20" CORE THICKNESS, COMPATIBLE WITH 1967-1969 CAMARO/FIREBIRD WITH 23" WIDE CROSSFLOW

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

NOTE: INLET & OUTLET HOSE ENDS SHOW ON PHOTO FOR REPRESENTATIVE PURPOSES. FITTINGS MUST BE PURCHASED SEPARATELY.

NOTE: SOME MODIFICATIONS WILL BE REQUIRED WHEN BEING FITTED TO "X" BODY AND CHEVELLE MODELS.

COMPATIBLE WITH:

• PONTIAC:
• 1964-1967 TEMPEST
• 1964-1967 LEMANS
• 1967-1969 FIREBIRD
• 1964-1967 GTO
• 1967 BEAUMONT
• CHEVROLET:
• 1967-1969 CAMARO
• 1964-1967 EL CAMINO
• 1962-1967 CHEVY II
• 1964-1967 CHEVELLE
• 1964-1967 MALIBU
• OLDSMOBILE:
• 1964-1967 CUTLASS
• 1964-1967 442
• 1967 VISTA CRUISER
• BUICK:
• 1964-1967 SKYLARK

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)

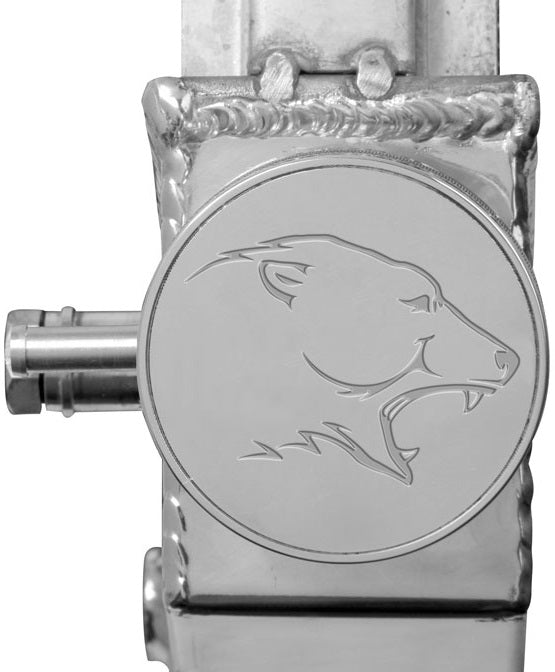

• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: DUAL
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 23"
• CORE THICKNESS: 2.20"
• FLOW STYLE: DUAL PASS
• HOSE LOCATION INLET: PASSENGER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: AN BUNGS
• MOUNTING TYPE: FLANGES
• OUTLET SIZE: AN BUNGS
• OVERALL DIMENSION: 18-1/2" X 27-1/2"
• PRODUCT TYPE: RADIATOR
• ROWS: 3

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
