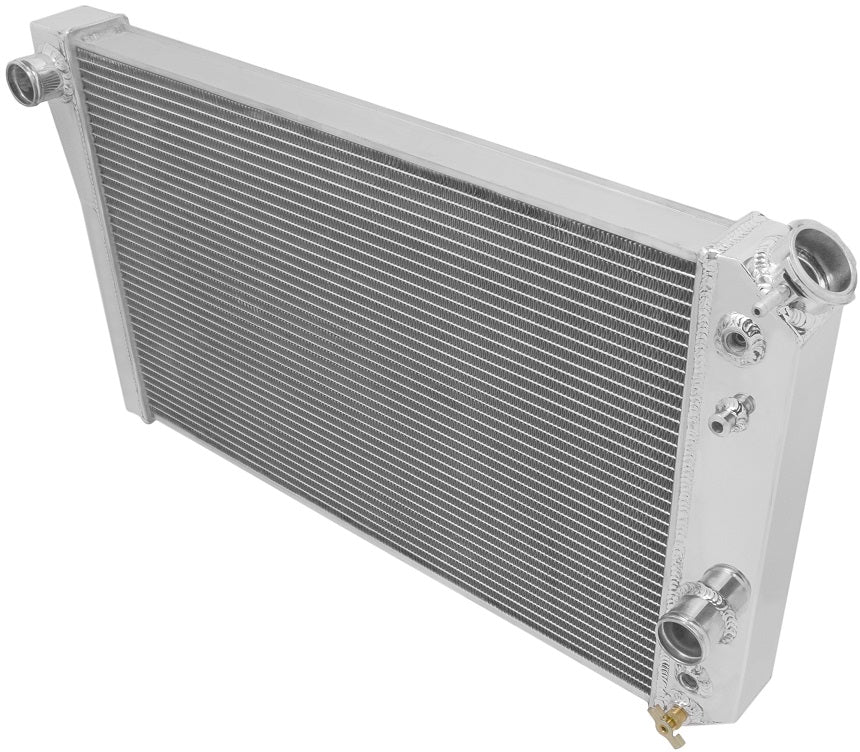

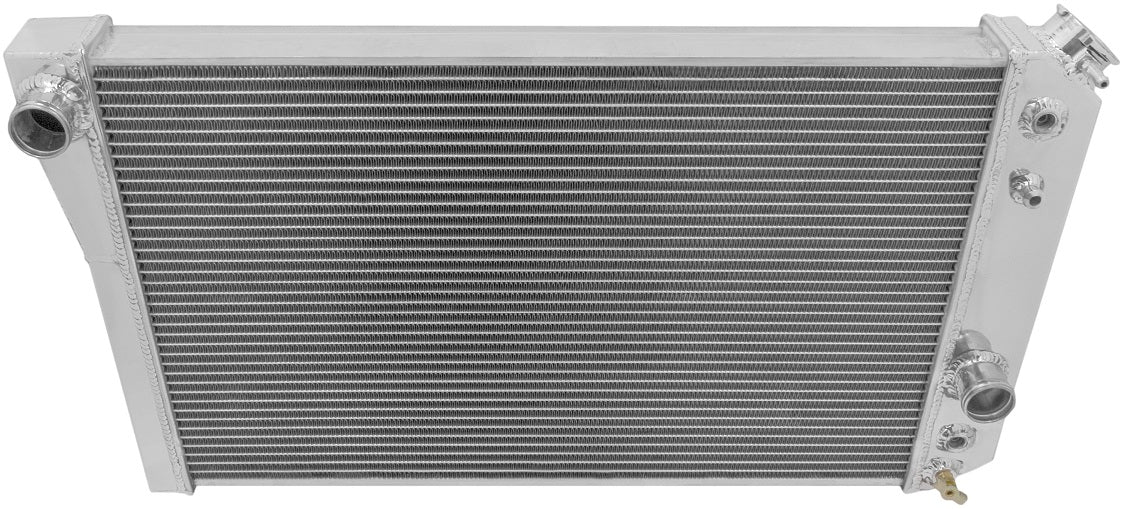

RADIATOR,ALUM,2 ROW,84-90 CORVETTE

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 2 ROW, CROSS FLOW STYLE, 1.57" CORE THICKNESS, COMPATIBLE WITH 1984-1990 CHEVY CORVETTE

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

• CHEVROLET:
• 1984-1990 CORVETTE

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: SINGLE
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 3/4"
• CORE DIMENSION: 14-1/2 X 23-5/8""
• CORE THICKNESS: 1.57"
• FLOW STYLE: CROSS FLOW
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/4"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-3/8"
• OVERALL DIMENSION: 16-3/8" X 29-1/8"
• PRODUCT TYPE: RADIATOR
• ROWS: 2
• TRANSMISSION OIL COOLER: 1/2-20 STRAIGHT THREAD G 1/4

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
