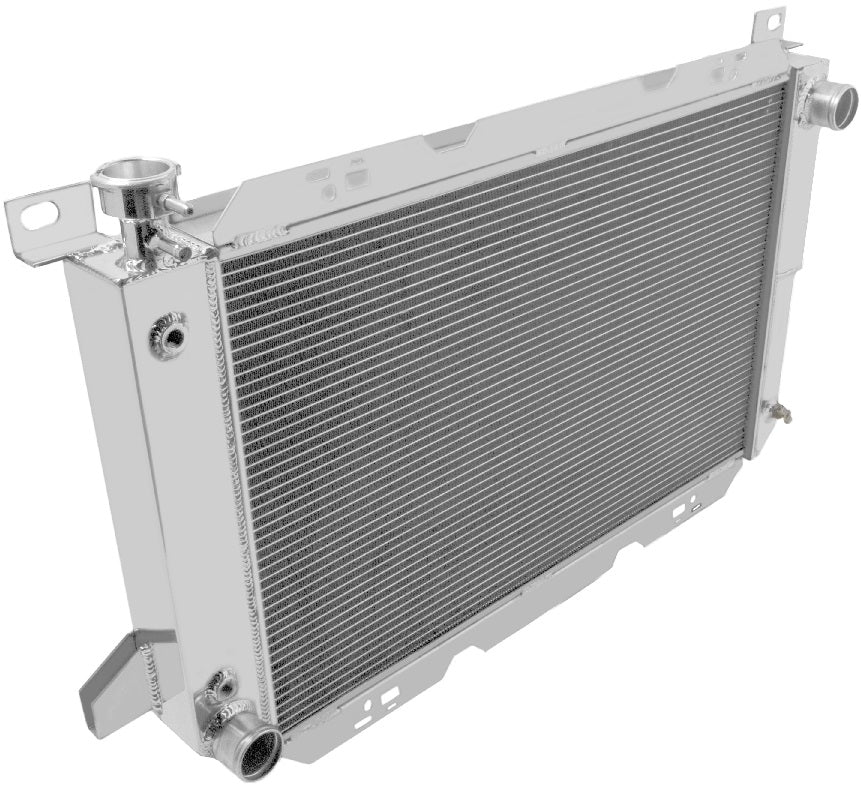

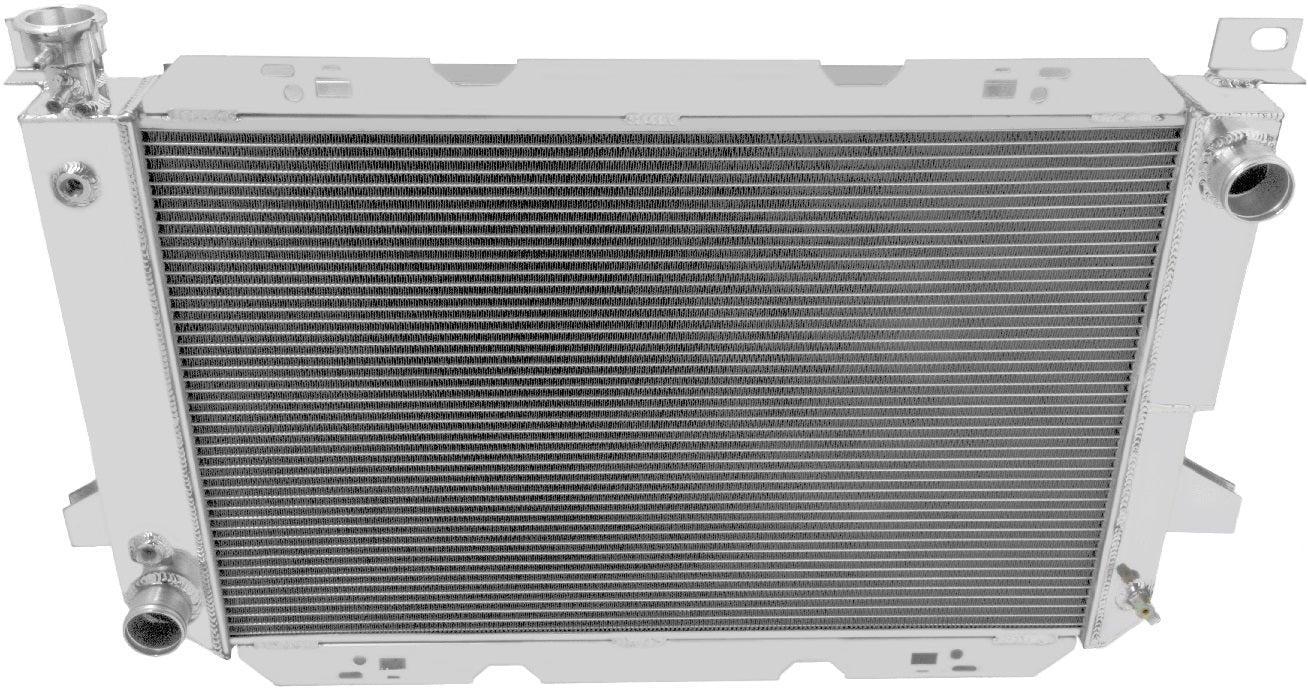

RADIATOR,ALUM,2 ROW,85-97 FORD

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 2 ROW, CROSS FLOW STYLE, 1.57" CORE THICKNESS, COMPATIBLE WITH 1985-1996 FORD PICKUP & BRONCO

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

• FORD:
• 1985-1996 F-150
• 1985-1997 F-250
• 1985-1997 F-350
• 1985-1996 BRONCO

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: SINGLE
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 3/4"
• CORE DIMENSION: 18-3/8" X 27-1/2"
• CORE THICKNESS: 1.57"
• FLOW STYLE: CROSS FLOW
• HOSE LOCATION INLET: PASSENGER
• HOSE LOCATION OUTLET: DRIVER
• INLET SIZE: 1-3/4"
• MOUNTING TYPE: BRACKET MOUNT
• OUTLET SIZE: 1-3/4"
• OVERALL DIMENSION: 22-1/2" X 37-1/4"
• PRODUCT TYPE: RADIATOR
• ROWS: 2

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
