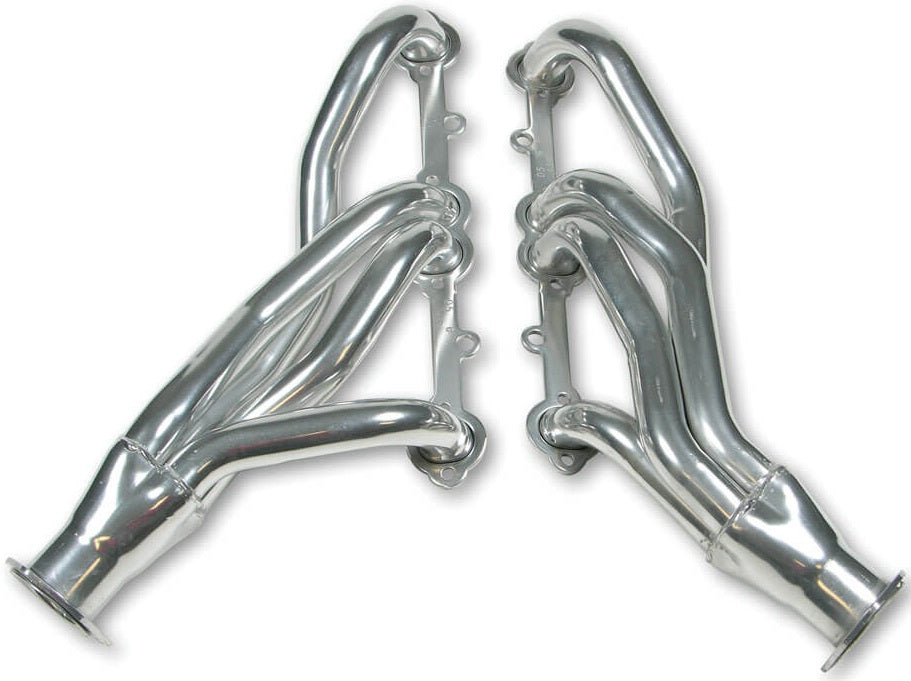

HEADER,SBC,1 1/2,67-74 PASSENGER,MID,2 1/2,CERAMIC COATED

BRAND NEW PAIR OF FLOWTECH MID LENGTH TUBE HEADERS, CERAMIC COATED FINISH, 2.5" COLLECTORS, 1.5" PRIMARY TUBES, SBC 283-400, COMPATIBLE WITH CHEVY 67-81 CAMARO, 68-87 CHEVELLE

FLOWTECH HEADERS ARE THE PERFECT COMBINATION OF PERFORMANCE & VALUE. FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS & 3/8" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE & GASKETS ARE INCLUDED FOR A SIMPLE INSTALL. COATED IN A HIGH HEAT RESISTANT CERAMIC PAINT FOR A STEALTHY APPEARANCE.

NOTE: INSTALL REQUIRES FLOWTECH A/C BRACKET, HOLLEY PART #10042FLT

NOTE: WILL FIT WITH ANGLE PLUG HEADS

NOTE: NOT COMPATIBLE WITH MANUAL TRANSMISSION

NOTE: BREAKING IN AN ENGINE WITH CERAMIC COATED HEADERS WILL RESULT IN DAMAGE TO COATING & VOID ALL WARRANTIES. CERAMIC COATED HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING CAST IRON EXHAUST MANIFOLDS OR OLD HEADERS TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE. USE OF HEADER WRAPS CAN CAUSE HEADER TUBES TO CRACK OR RUST DUE TO EXCESSIVE HEAT & MOISTURE BUILD-UP. FLOWTECH DOES NOT RECOMMEND USE OF HEADER WRAPS, AS IT VOIDS WARRANTY.

COMPATIBLE WITH:

• CHEVROLET WITH 283-400CI ENGINES:
• 1967-81 CAMARO
• 1968-87 CHEVELLE
• 1968-79 CHEVY II
• 1968-79 NOVA
• 1970-87 MONTE CARLO
• 1971-91 IMPALA
• 1971-91 BEL AIR
• 1971-91 CAPRI
• OLDSMOBILE WITH 283-400CI ENGINES:
• 1978-87 CUTLASS

FEATURES:

• TUNED-LENGTH PRIMARY TUBES FOR STREET PERFORMANCE
• MANDREL-BENT TUBING FOR SMOOTH EXHAUST FLOW
• LIGHT WEIGHT & STURDY 16 GAUGE TUBING
• MANDREL-FORMED POWER PLENUM COLLECTOR FOR LOW BACK PRESSURE
• STURDY, LEAK-TESTED O-RING PORT SEALS
• ENGINEERED FOR A PRECISION FIT
• DESIGNED FOR EASY TROUBLE-FREE INSTALL
• INCLUDES ALL MOUNTING HARDWARE & PREMIUM GASKETS
• MID-LENGTH STYLE HEADER, ALSO WORKS WITH CATALYTIC CONVERTER EQUIPPED VEHICLES (HEAD PIPE FABRICATION REQUIRED)

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 2.50"
• EMISSION CODE: 4
• HEADER FINISH: SILVER CERAMIC
• HEADER FLANGE THICKNESS: 3/8"
• HEADER STYLE: MID LENGTH
• PRIMARY TUBE DIAMETER: 1-1/2"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
