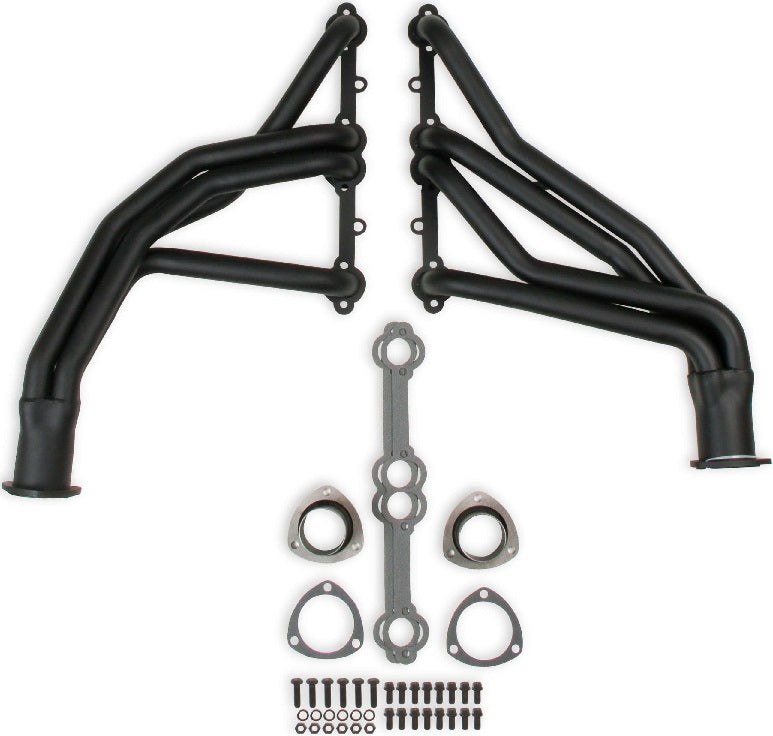

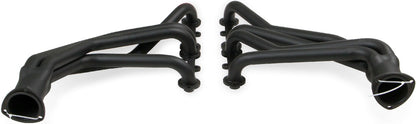

HEADER,SBC,1 1/2,66-74 C-10,LONG TUBE,3,BLACK

BRAND NEW FLOWTECH LONG TUBE HEADERS, BLACK, 1.5" TUBE DIAMETER, 3" COLLECTORS, COMPATIBLE WITH 1966-1974 GM TRUCK/SUV

FLOWTECH LONG TUBE HEADERS ARE PRECISION ENGINEERED USING MANDREL BENT TUBING, FORMED COLLECTORS AND 5/16" FLANGES WITH SEALING RINGS FOR A LEAK-FREE SEAL. ALL MOUNTING HARDWARE AND GASKETS ARE INCLUDED FOR A SIMPLE INSTALLATION. THIS HEADER IS COATED IN A HIGH HEAT RESISTANT BLACK PAINT FOR A STEALTHY APPEARANCE.

NOTE: REQUIRES FLOWTECH AIR CONDITIONING BRACKET 10042FLT.

NOTE: MAY REQUIRE CLUTCH LINKAGE MODIFICATION.

NOTE: DOES NOT FIT WITH ANGLE PLUG HEADS.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING AND WILL VOID ALL WARRANTIES. CERAMIC COATED HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING CAST IRON EXHAUST MANIFOLDS OR OLD HEADERS TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE. THE USE OF HEADER WRAPS CAN CAUSE THE HEADER TUBES TO CRACK OR RUST DUE TO EXCESSIVE HEAT AND MOISTURE BUILD-UP. FLOWTECH DOES NOT RECOMMEND THE USE OF HEADER WRAPS AS THIS WILL VOID THE WARRANTY.

COMPATIBLE WITH:

• CHEVROLET:
• 1967-1974 BLAZER 2WD
• 1969-1974 BLAZER 4WD
• 1966-1974 C10 PICKUP
• 1966-1974 C20 PICKUP
• 1966-1974 C30 PICKUP
• 1966-1974 K10 PICKUP
• 1966-1974 K20 PICKUP
• 1966-1974 K30 PICKUP
• 1966-1974 C10 SUBURBAN
• 1966-1974 C20 SUBURBAN
• 1966-1974 K10 SUBURBAN
• 1966-1974 K20 SUBURBAN
• 1973-1974 SUBURBAN
• GMC:
• 1966-1974 C15/C1500 PICKUP
• 1966-1974 C25/C2500 PICKUP
• 1966-1974 C35/C3500 PICKUP
• 1966-1974 K15/K1500 PICKUP
• 1966-1974 K25/K2500 PICKUP
• 1966-1974 K35/K3500 PICKUP
• 1966-1974 C15/C1500 SUBURBAN
• 1966-1974 C25/C2500 SUBURBAN
• 1966-1974 K15/K1500 SUBURBAN
• 1966-1974 K25/K2500 SUBURBAN
• 1967-1974 JIMMY 2WD
• 1969-1974 JIMMY 4WD

FEATURES

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• MANDREL-FORMED POWER PLENUM
• LEAKPROOF O-RINGED PORT SEALS
• INCLUDE ALL MOUNTING HARDWARE
• CONSTRUCED OF .049 COLD ROLL FLASH MILD STEEL TUBING
• PRECISION ENGINEERED FOR FIT, PERFORMANCE AND ECONOMY
• WORKS WITH FACTORY POWER STEERING AND POWER BRAKES

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 3.00"
• EMISSION CODE: 4
• ENGINE: CHEVROLET SMALL BLOCK
• HEADER FINISH: BLACK PAINT
• HEADER FLANGE THICKNESS: 5/16"
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1-1/2"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
